Skylight System
SKYLIGHT SYSTEM

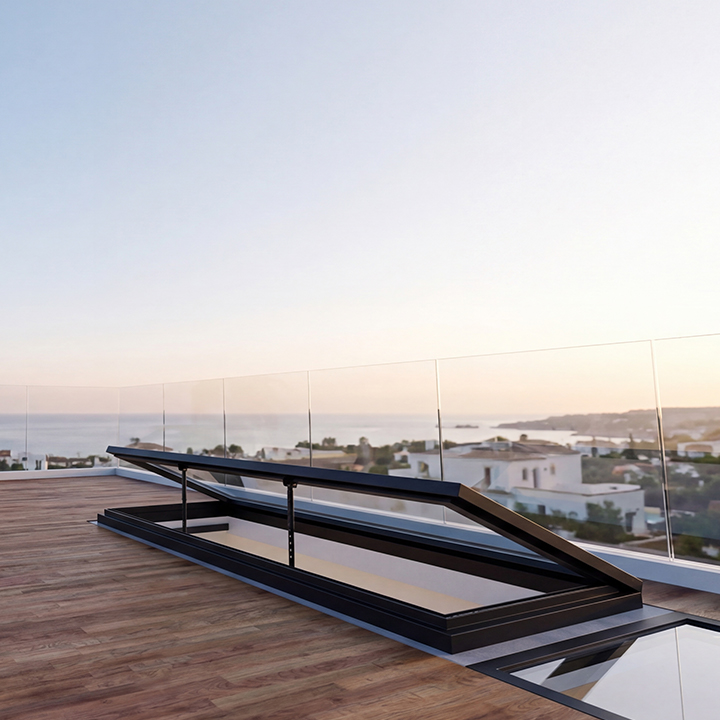

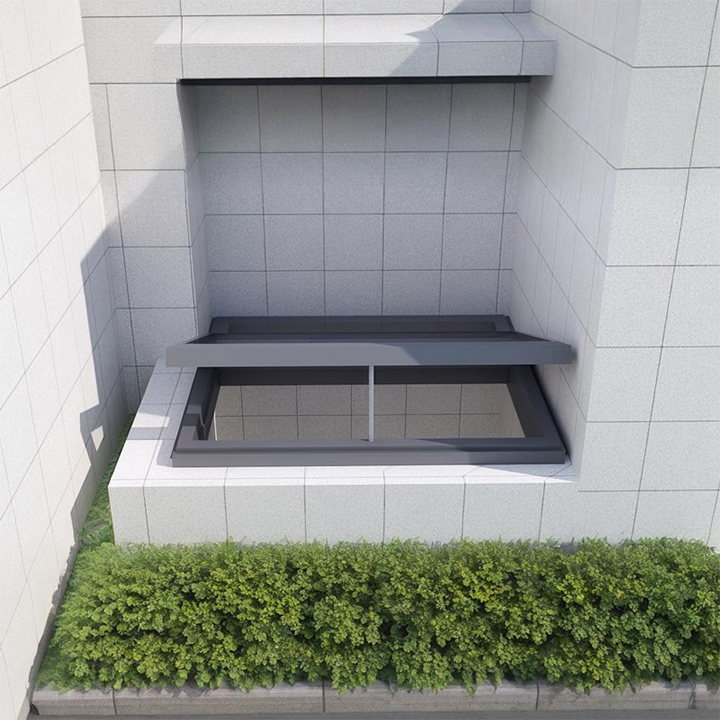

Electric Chain Top Hung Skylight with heavy-duty weatherproof aluminum frame. Driven by chain motor for stable top-hung opening, great ventilation. Double tempered insulated glass provides sound & heat insulation. Multi sealing strips prevent rain leakage. Quiet and stable operation, compatible with smart control system. Ideal for sunroom roof, attic and light well. Custom size & color, export quality.
Specify dimensions, material, opening method, and glass specifications; provide a separate BOM for individual components.
Design Drawings and Material Breakdown
Collect profiles, glass, hardware motors, and sealing strips according to the list.
Material Calculation, Procurement and Material Requisition
Cutting boards, sawing machines, and laser cutting to obtain raw parts.
Scheduling and Cutting Materials
Frame welding, control welding parameters to avoid virtual welding, porosity, and cracks.
Welding
Polish and clean welding slag and oxide skin on welds, burrs, and sharp edges.
Polish
Pre processing of workpieces; Spray outdoor coatings and cure; Check the appearance and adhesion of the coating.
Spray Painting and Coloring

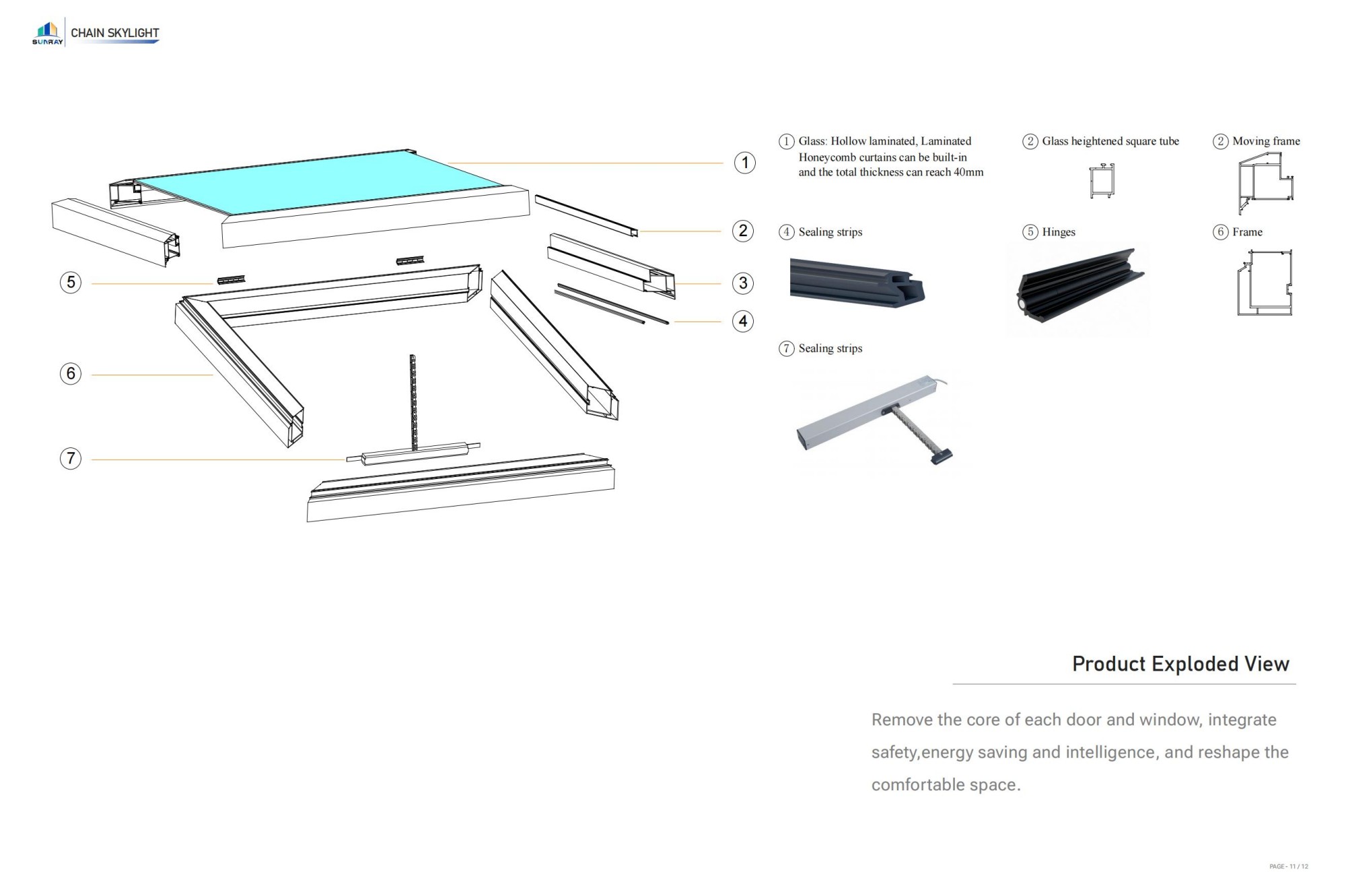

Assemble profiles, glass, rubber strips, and hardware; Electric models are equipped with motors, sensors, and control wires.
Sunroof Assembly
Manually adjust the opening and closing limit; Electric debugging remote control, limit, rainproof induction, overload protection
Complete Machine Function Debugging
Necessary modular disassembly; Pearl cotton wooden crate with wooden frame for protection, packed and shipped.
Dismantling, Protective Packaging, And Shipping
Comprehensive inspection to ensure product quality, safety, and performance.
The model, size, glass hardware, and contract drawings are consistent; The profile glass has no scratches, paint peeling, or cracks.
Even gaps without deviation; Fit the roof slope; The fixed parts are complete, firm, and without shaking.
Tempered/insulated glass with 3C coating; no scratches or edge bursts; Hollow without fogging and water ingress; The rubber strip is continuously and completely adhered.
Manual: The handle, hinge, and wind support are complete; Smooth opening and closing without any jamming or abnormal noise; The limit can be stably positioned; The locking point is in place.
Electric: The motor runs smoothly without any abnormal noise or vibration; Accurate remote start stop limit; Effective power-off and overload protection; Rain proof sensing function is normal; Line insulation and waterproofing.
Roof edge trimming and smooth water lap joint; The adhesive seam is full and continuous without bubbles; The drainage holes of the drainage trough are unobstructed and unobstructed.
No obvious air leakage after closing; Compliant glass profile insulation configuration; Screw holes are sealed, and there are no sharp burrs on the edges and corners.
Safety glass; Reliable load-bearing capacity of hardware; Complete anti fall devices; Insulation and leakage prevention of electric power lines.
If there is shaking or looseness, opening and closing failure, water seepage, fogging and cracking of glass, waterproof failure, or damage to the profile, it will be directly judged as rework.
In order to better meet your needs, we support color customization forlarge ordersensuring that each product perfectly reflects your brandstyle..
Champagne Gold
+$45 USD per square meter
In order to better meet your needs, we support color customization forlarge ordersensuring that each product perfectly reflects your brandstyle..
We've grouped the guestions by categories to make it easier for you to find the answers you're looking forIf you don't see an answer to your question, please contact us

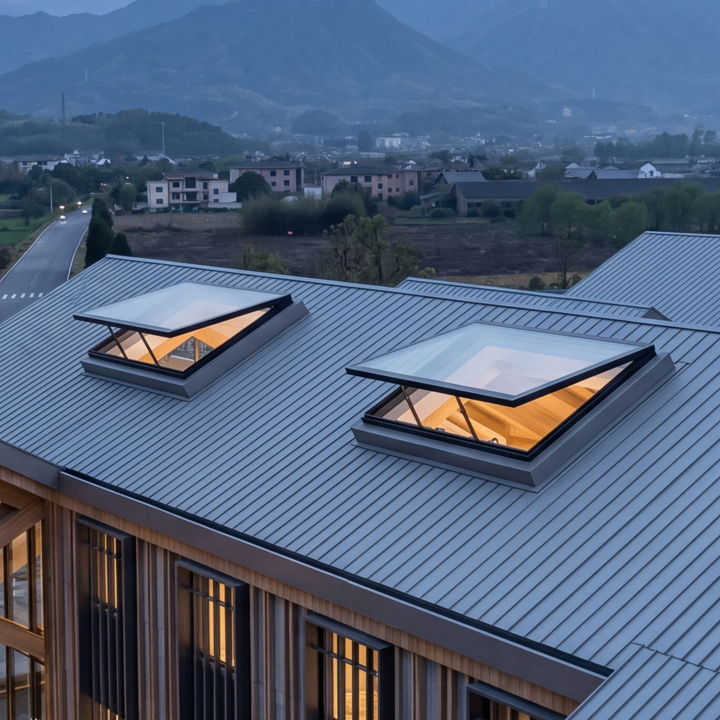

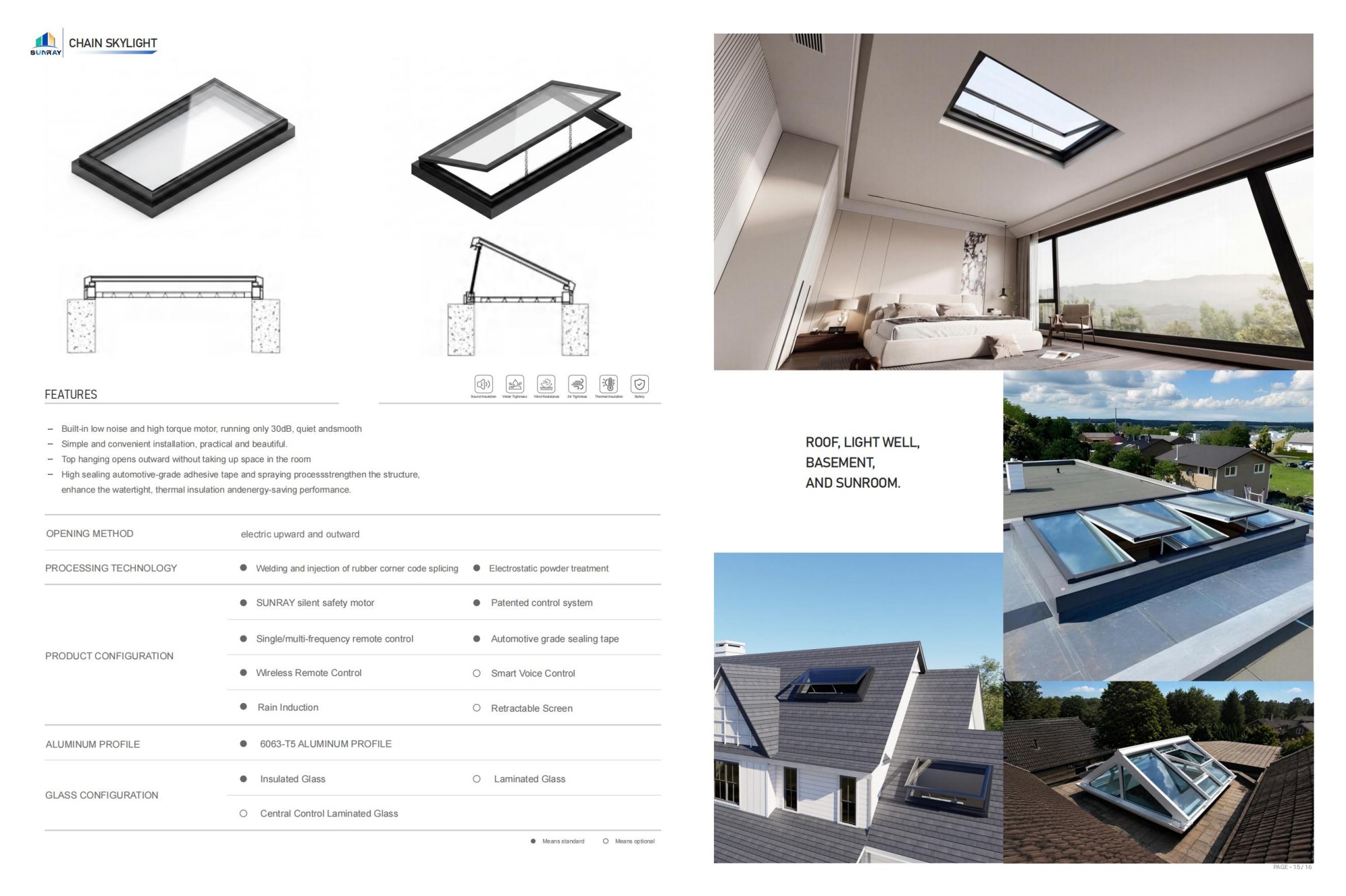

This Chain Top Hung Skylight features a concealed electric chain drive and opens outward and upward; the motor can be fully concealed within the window frame or mounted externally on the profile, resulting in a minimalist, clean appearance and quiet operation. It provides ventilation while keeping rain out, making it ideal for sunrooms in villas, skylights on patios, and residential ventilation skylights. With its lightweight and aesthetically pleasing design, it is suitable for standard small- to medium-sized glass skylights and is the leading choice for high-end residential lighting and ventilation solutions.
Standard single-panel dimensions: 1500 × 1000 mm; maximum dimensions: 2000 × 1500 mm
Large chain-operated skylights require a dual-chain motor. They support various configurations, including single-panel, double-panel, or triple-panel arrangements, and can be flexibly customized to suit the building’s spatial layout and daylighting needs, making them suitable for installation in a variety of settings.

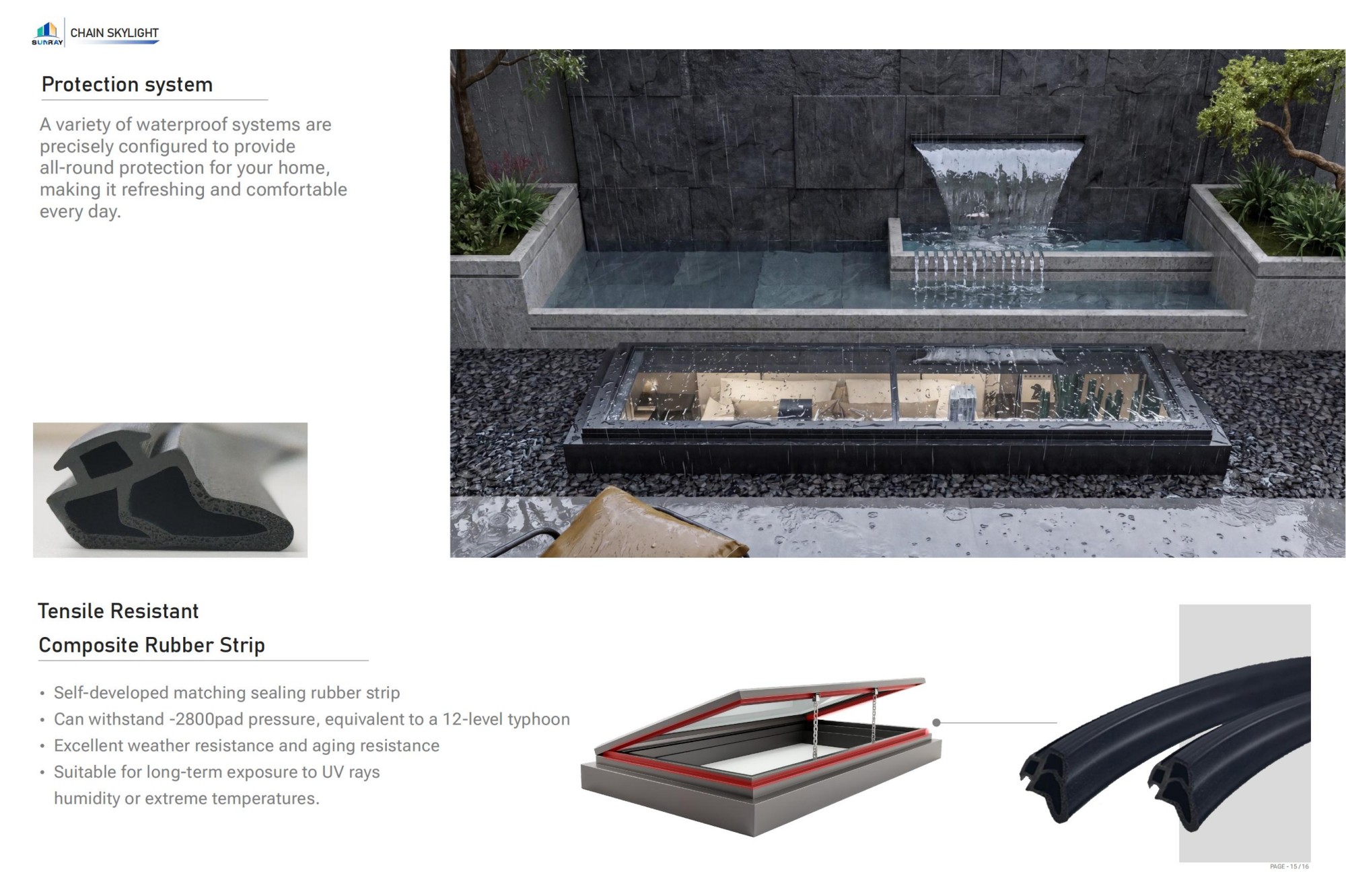

The profiles feature multi-layer water-blocking baffles and perimeter drainage channels; when the window sash is open, a gap is present, and when closed, the entire frame presses against the EPDM rubber gasket to ensure a seal.
Common causes of water leakage: leaves clogging the drainage channels and cracks in the roof waterproofing at the edge.
Clear the drainage channels and redo the roof waterproofing at the edge.

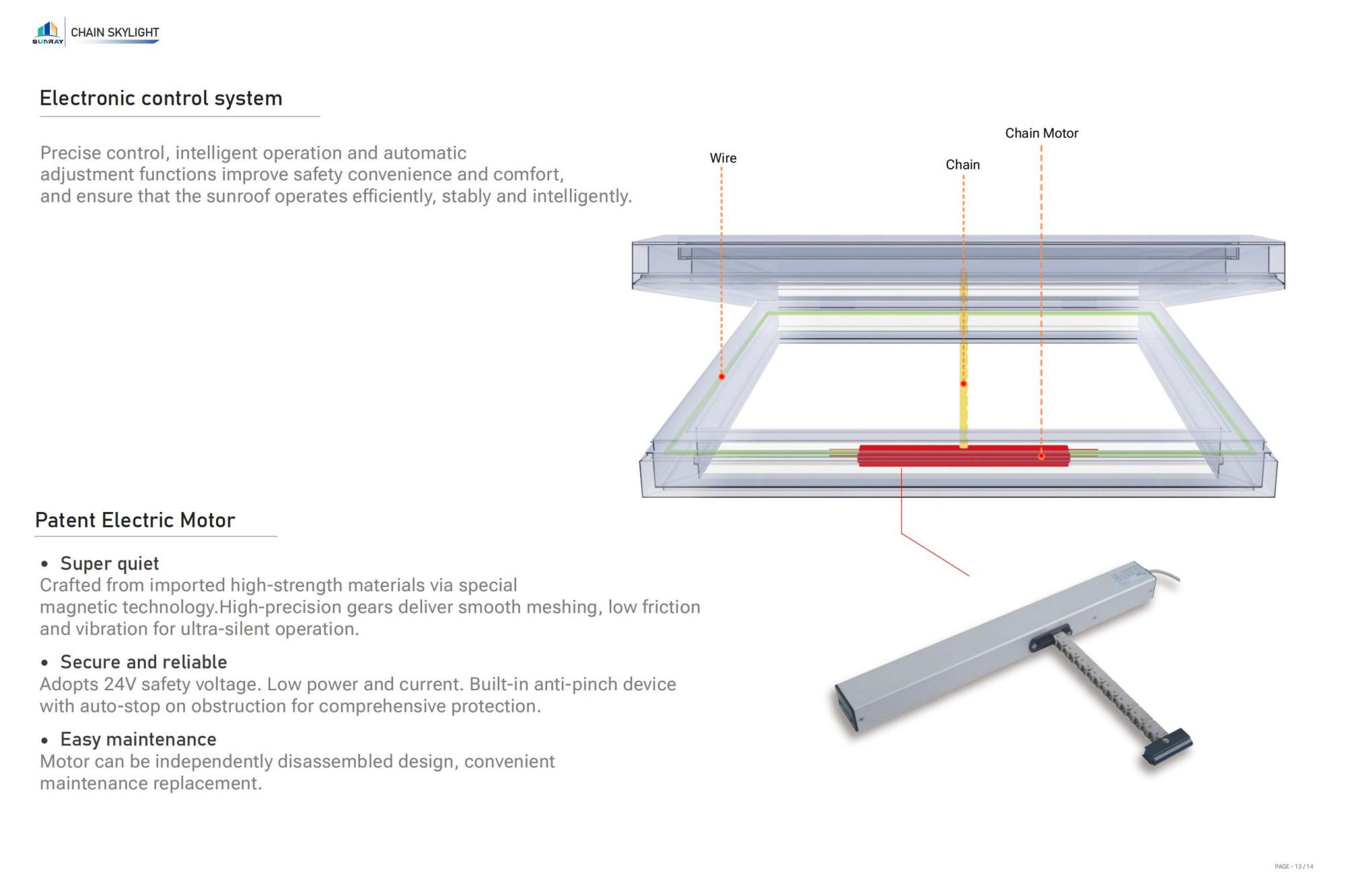

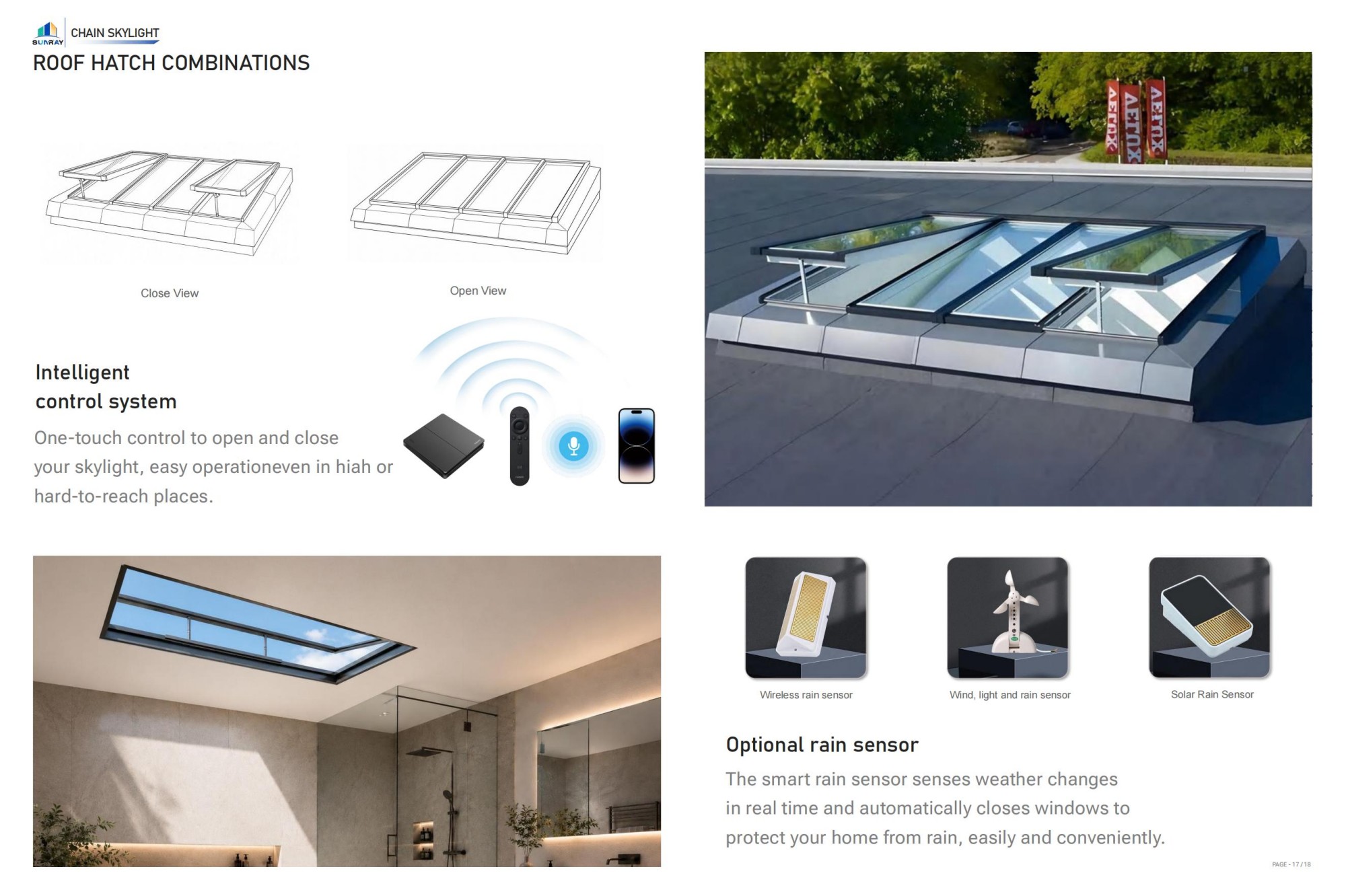

When an external rain and wind sensor is connected, the system automatically shuts off when a rain signal is detected; temperature sensors and smoke detectors can also be installed to trigger the system’s activation in conjunction with the factory’s fire suppression and smoke exhaust systems.
The electric linear actuator has a cycle life of 40,000 cycles;
Motor components are covered by a 2-year warranty, and the aluminum alloy frame is covered by a 10-year warranty;
1. Clean the circular drainage channels on all four sides and the drain openings every 6 months;
2. Inspect the EPDM gasket all around for any indentations or signs of aging.
