SUNROOM SYSTEM

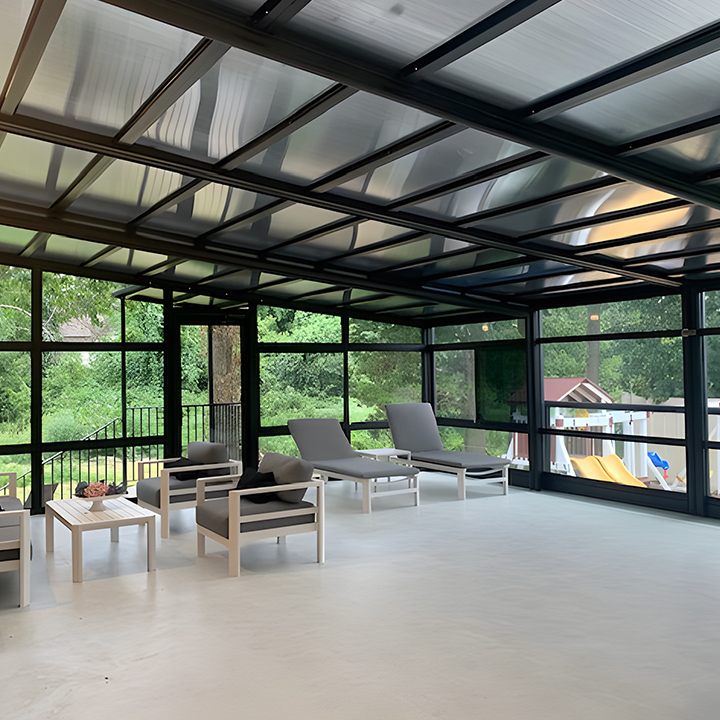

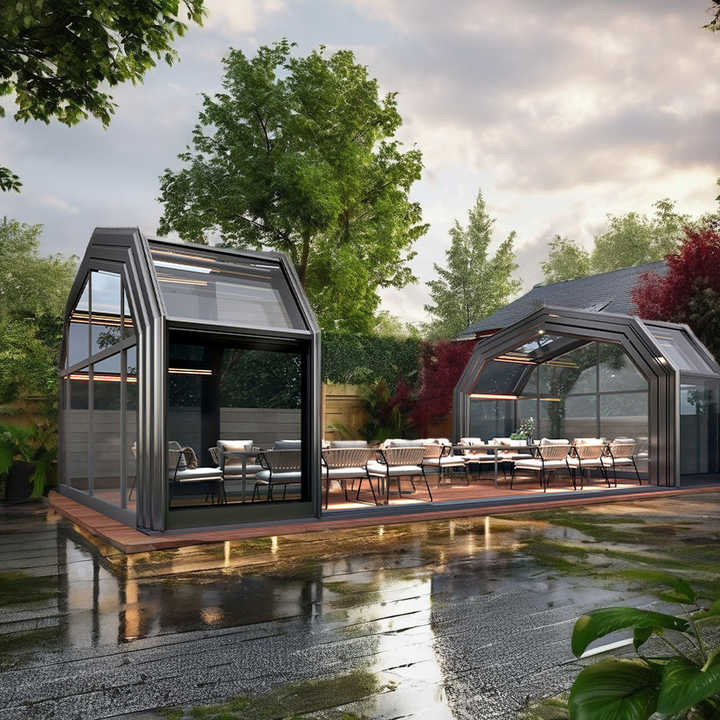

Movable / Retractable Sunroom

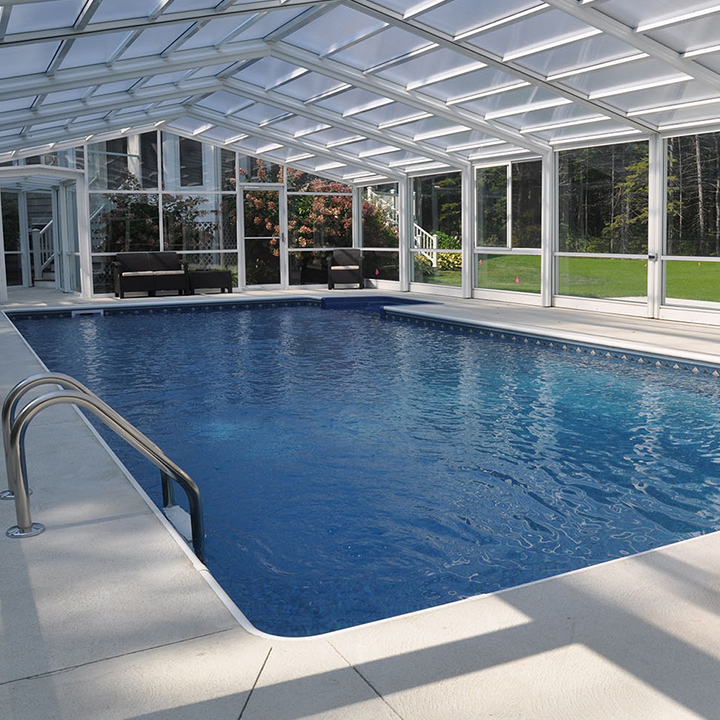

Mobile retractable sunroom features high-strength aluminum frame, rust-proof, stable and long-lasting. Equipped with tempered insulated glass for excellent heat insulation, sound insulation and waterproof performance. The flexible retractable structure can be freely opened or closed according to weather, maximizing space utilization. Safe, wind-resistant and easy to install. Ideal for balconies, patios and gardens. Custom size and color, export grade quality.

1.Design
01 / 10

Scheme Design, Structural Verification, Drawing Output

Confirm the on-site civil engineering, wind and snow loads, opening and closing methods, panels, and motor voltage; Output CAD cutting, drilling, electrical, and installation drawings; Review waterproof, motor heat dissipation, safety anti pinch, and sea freight disassembly dimensions.

01

Scheme Design, Structural Verification, Drawing Output

2.Material Preparation
02 / 10

Raw Naterial Procurement+IQC Incoming Inspection

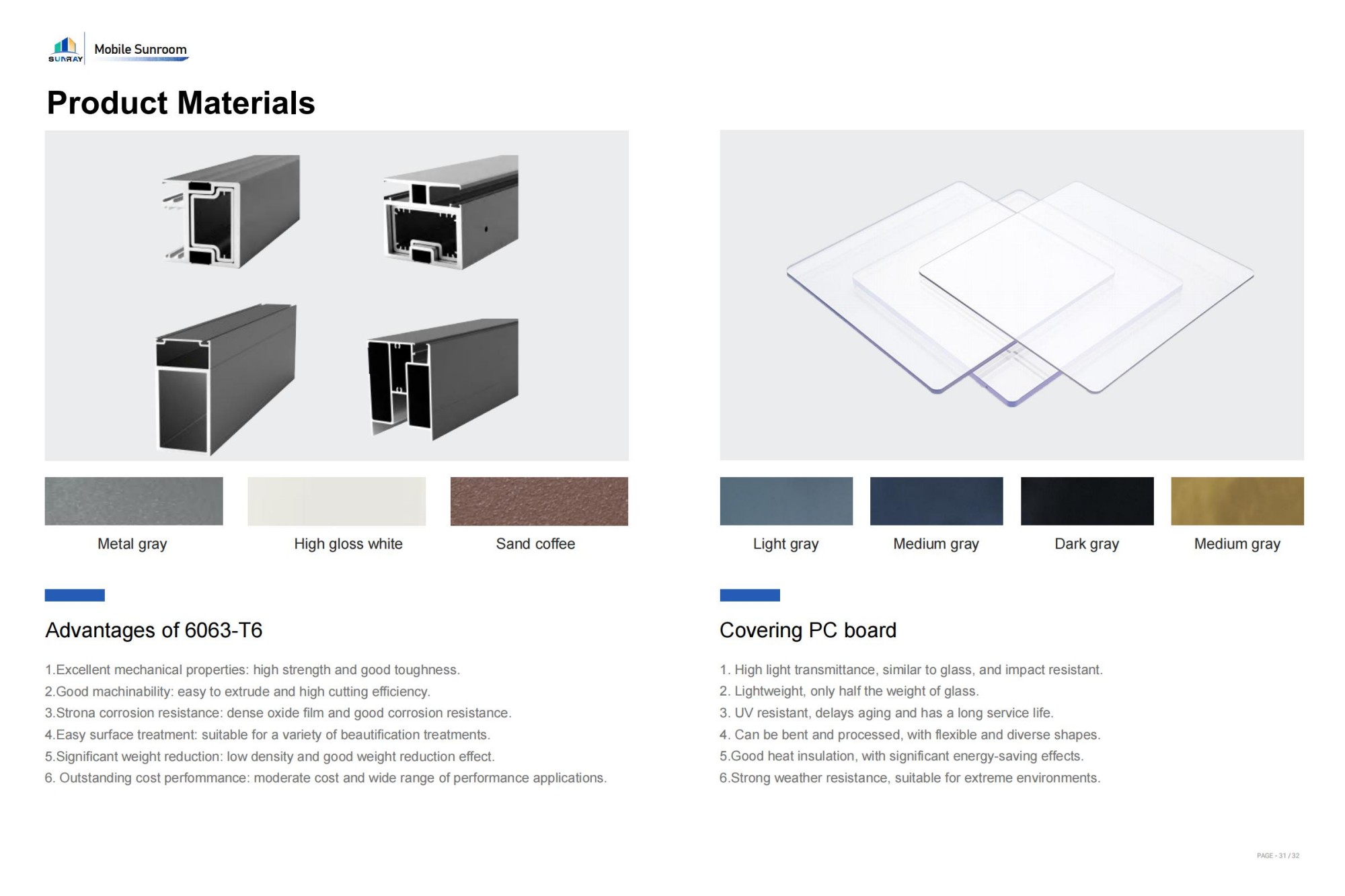

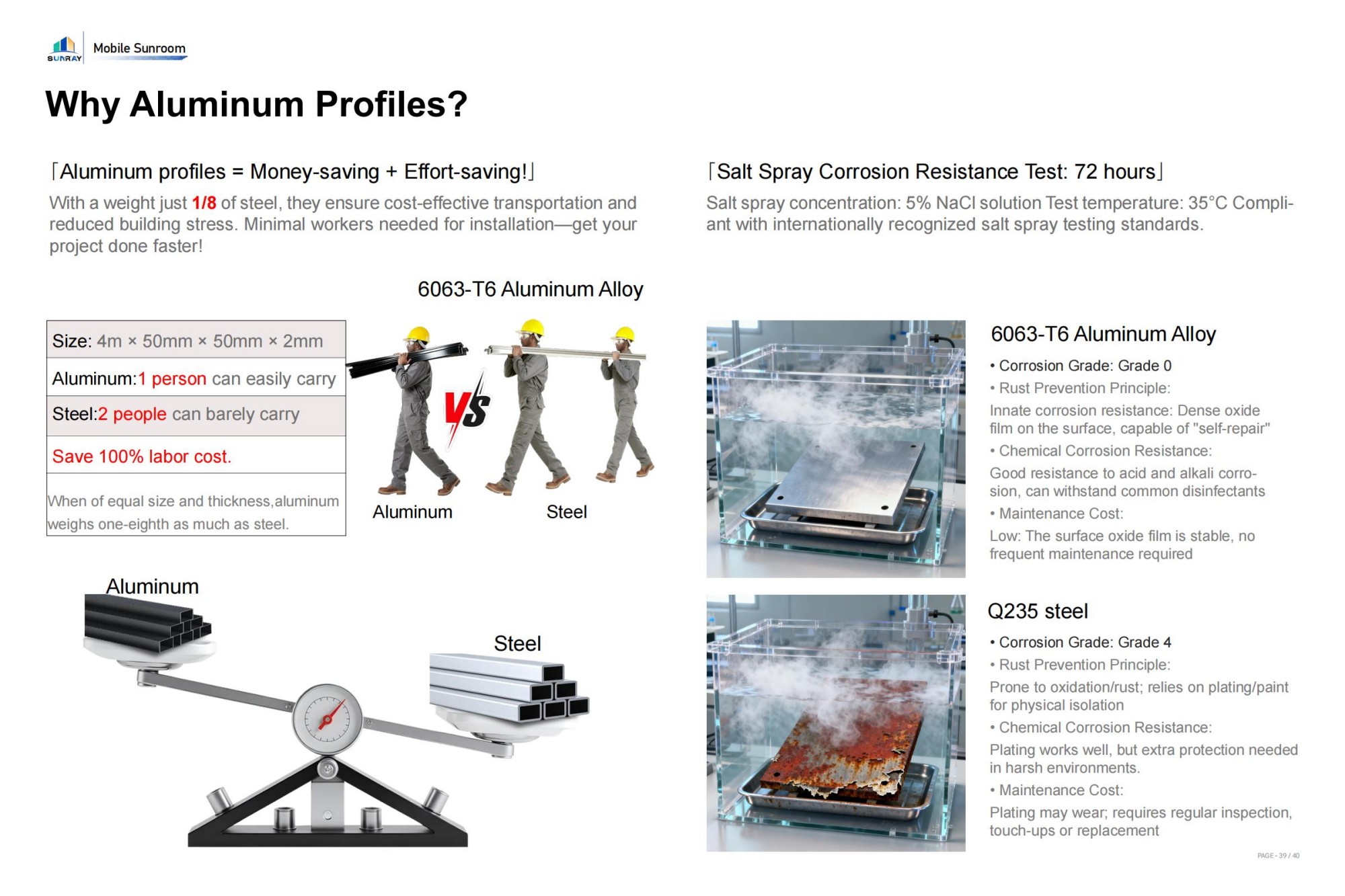

6063 T5 aluminum profile; Tempered glass/PC endurance board; EPDM rubber strip, PA66 GF30 pulley, 304 stainless steel screws, motor control box, limit sensor, weather resistant silicone adhesive, incoming inspection.

02

Raw Naterial Procurement+IQC Incoming Inspection

3.Powder Coating
03 / 10

CNC Machining Section

CNC double head saw cutting profile tolerance ± 0.5mm; CNC milling drainage groove, pulley hole, motor fixing hole; Deburring of profiles; Glass cutting, edge grinding, tempered and hollow; Strictly control the straightness of track profiles.

03

CNC Machining Section

4.Cutting
04 / 10

Outdoor Weather Resistant Surface Treatment

Complete pre-processing assembly line; Outdoor weather resistant powder electrostatic spraying; High temperature curing at 180 and 200 ℃; Coating 60 80 μ m, adhesion level 0, no flow hanging, leakage, spray color difference.

04

Outdoor Weather Resistant Surface Treatment

6.Assembly (2)
05 / 10

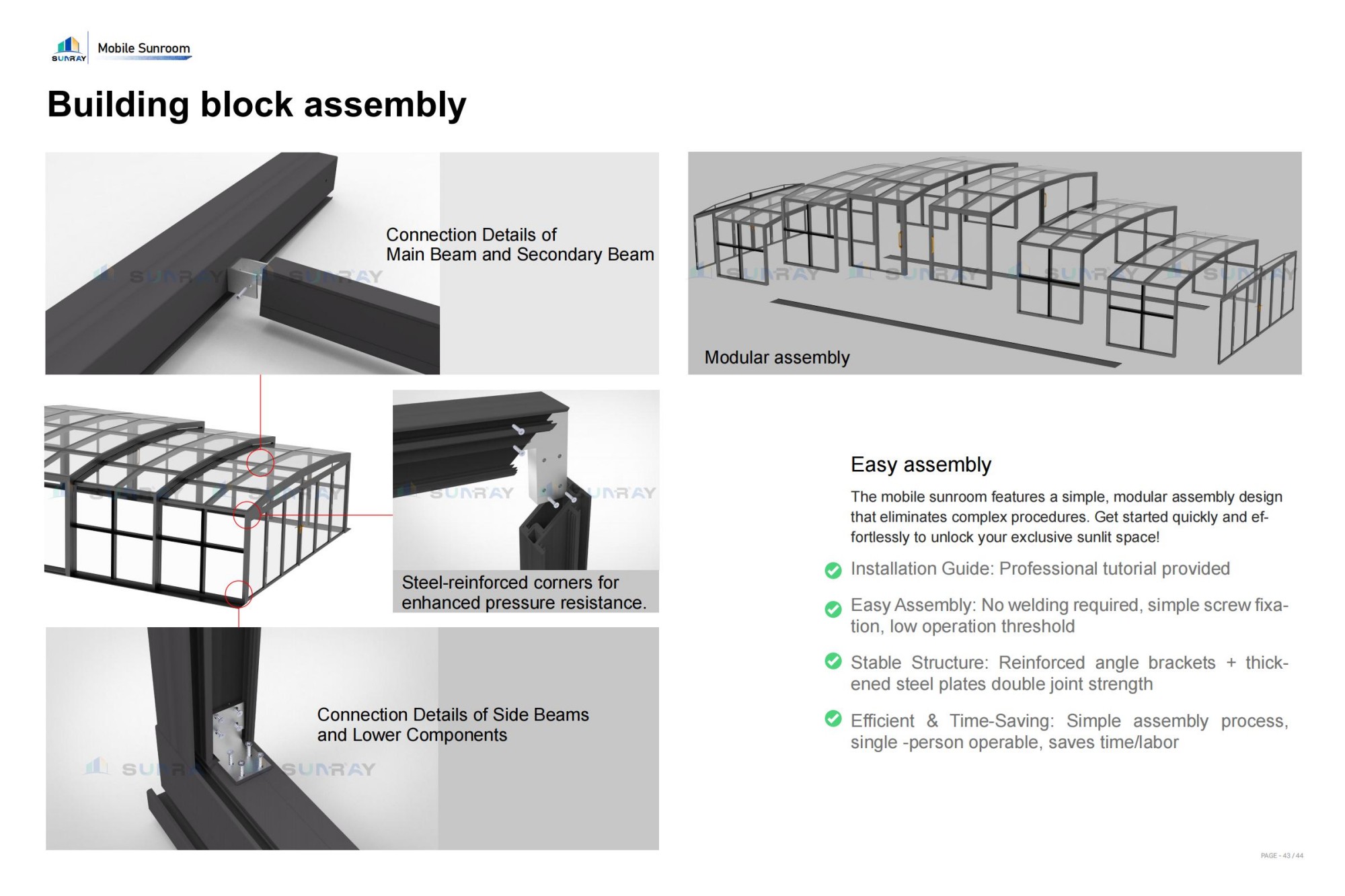

Frame assembly (corner code assembly, suitable for exporting loose parts)

Aluminum corner code+stainless steel screw splicing frame, easy to disassemble for export and reduce shipping costs.

05

Frame assembly (corner code assembly, suitable for exporting loose parts)

7.Motor & Pulley System Pre-installation
06 / 10

Pre Installation of Transmission Motor Pulley System

Track leveling, assemble PA66 pulley assembly with stainless steel bearings; Install racks, drive motors, and tank chains; Wiring limit and rebound sensor when encountering obstacles; Debug the transmission tightness and ensure there is no jamming or abnormal noise during opening and closing.

06

Pre Installation of Transmission Motor Pulley System

5.Frame assembly (corner bracket assembly, suitable for export in loose parts)
07 / 10

Board Assembly, Waterproof Closure

Fixed glass/PC board; Apply weather resistant adhesive to the gaps of profiles; Assemble the internal water collection tank and external drainage system, and design the drainage slope; Install dust-proof and windproof brushes.

07

Board Assembly, Waterproof Closure

8.Testing & Inspection
08 / 10

Factory Fat Machine Pre Assembly and Debugging (Mandatory For Foreign Trade)

Complete splicing simulation of finished products; Power on reciprocating opening and closing test, verify limit and rebound when encountering resistance; Check for noise, sealing, and drainage; Electrical insulation leakage protection, with a power on test run of ≥ 2 hours; on-site rectification of lagging and water leakage.

08

Factory Fat Machine Pre Assembly and Debugging (Mandatory For Foreign Trade)

53b192d6ff66f63a15a2f2d3fd132409(1)
09 / 10

FQC Finished Product Full Inspection

Verify dimensions, spray coating, hardware, and sealing; Provide self inspection records and attach qualification certificates.

09

FQC Finished Product Full Inspection

9.Packing & Shipping
10 / 10

Protective Packaging OQC Re Inspection For Shipment

Protective film for corner protection; Modular disassembly, large piece fumigation free wooden frame; Package with English instruction manual, electrical schematic, accessory kit, and inspection report for shipment.

10

Protective Packaging OQC Re Inspection For Shipment

Sunroom Product Inspection Standards

Comprehensive inspection to ensure product quality, safety, and performance.

  • 01
    76x76

    Raw Material IQC

    The specifications of profiles, glass, pulley motors, and seals meet the standards and there are no defects.

  • 02

    Machining Accuracy

    The cutting tolerance of the profile is ± 0.5mm; the straightness of the track is qualified, and the hole position is accurate.

  • 03
    76x76

    Spraying

    Coating 60 80 μ m, adhesion meets the standard, and there is no color difference flow or leakage spray.

  • 04
    76x76

    Frame Assembly

    The corner code connection is firm, and the frame is not twisted or deformed.

  • 05
    76x76

    Transmission System

    The pulley runs smoothly, and the safety functions of motor start stop, limit, and rebound in case of resistance are effective, without any abnormal noise or jamming.

  • 06
    76x76

    Waterproof and Drainage

    The sealant is intact and continuous; The drainage of the collection tank is smooth and there is no backflow of accumulated water.

  • 07
    76x76

    FAT Whole Machine Testing

    Repeated opening and closing test, continuous electrical operation, no water leakage or abnormal noise.

  • 08
    76x76

    FQC Final Inspection

    The size, appearance, and sealing function are qualified; The accessories and technical documents are complete.

Fluorocarbon Coating

In order to better meet your needs, we support color customization forlarge ordersensuring that each product perfectly reflects your brandstyle..


  • Champagne Gold
  • Pure White
  • Forest Green
  • Graphite Gray







Powderr Coating

In order to better meet your needs, we support color customization forlarge ordersensuring that each product perfectly reflects your brandstyle..

  • Metallic Gray
  • Metallic Black
  • Brown
  • White

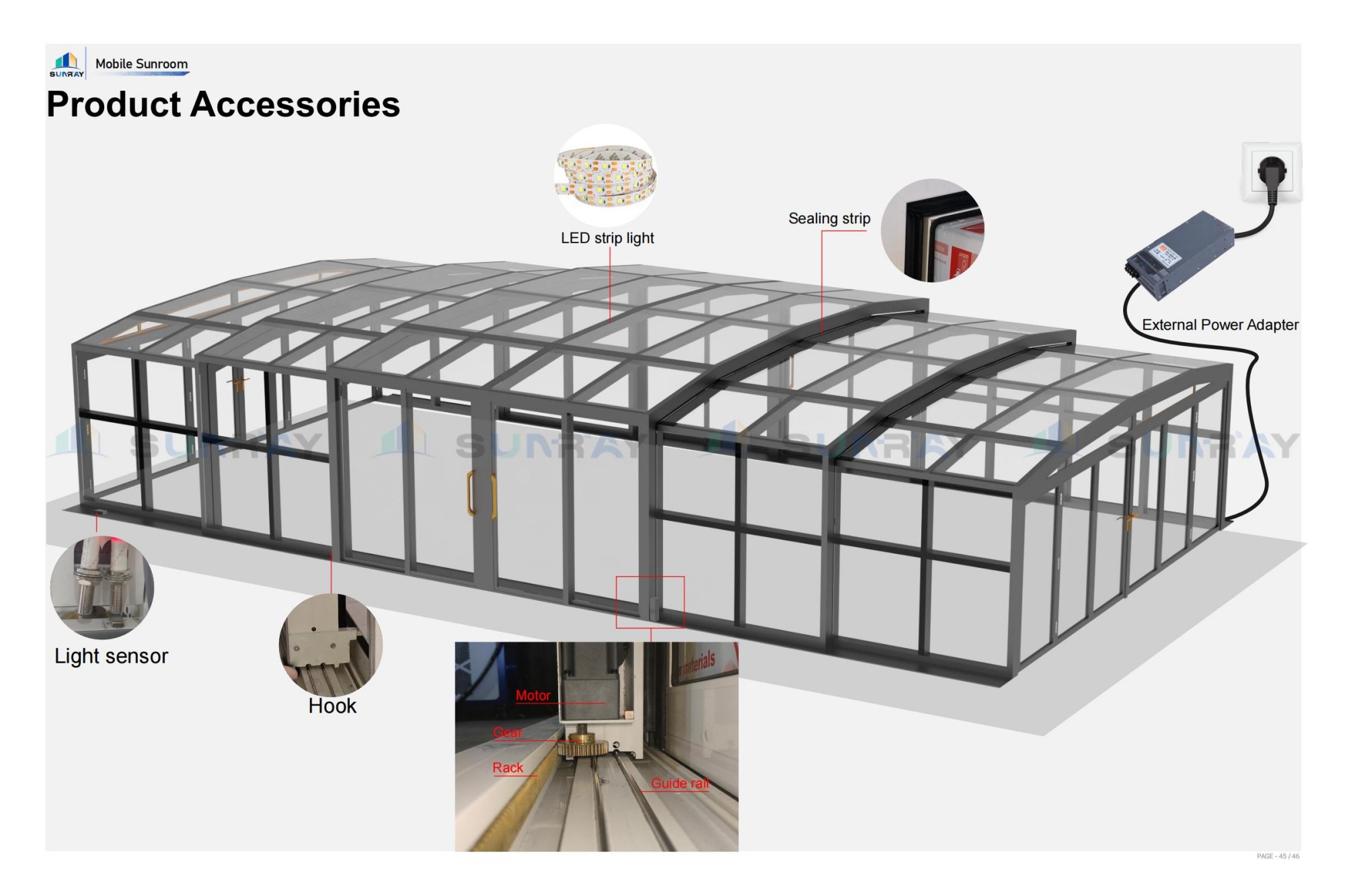

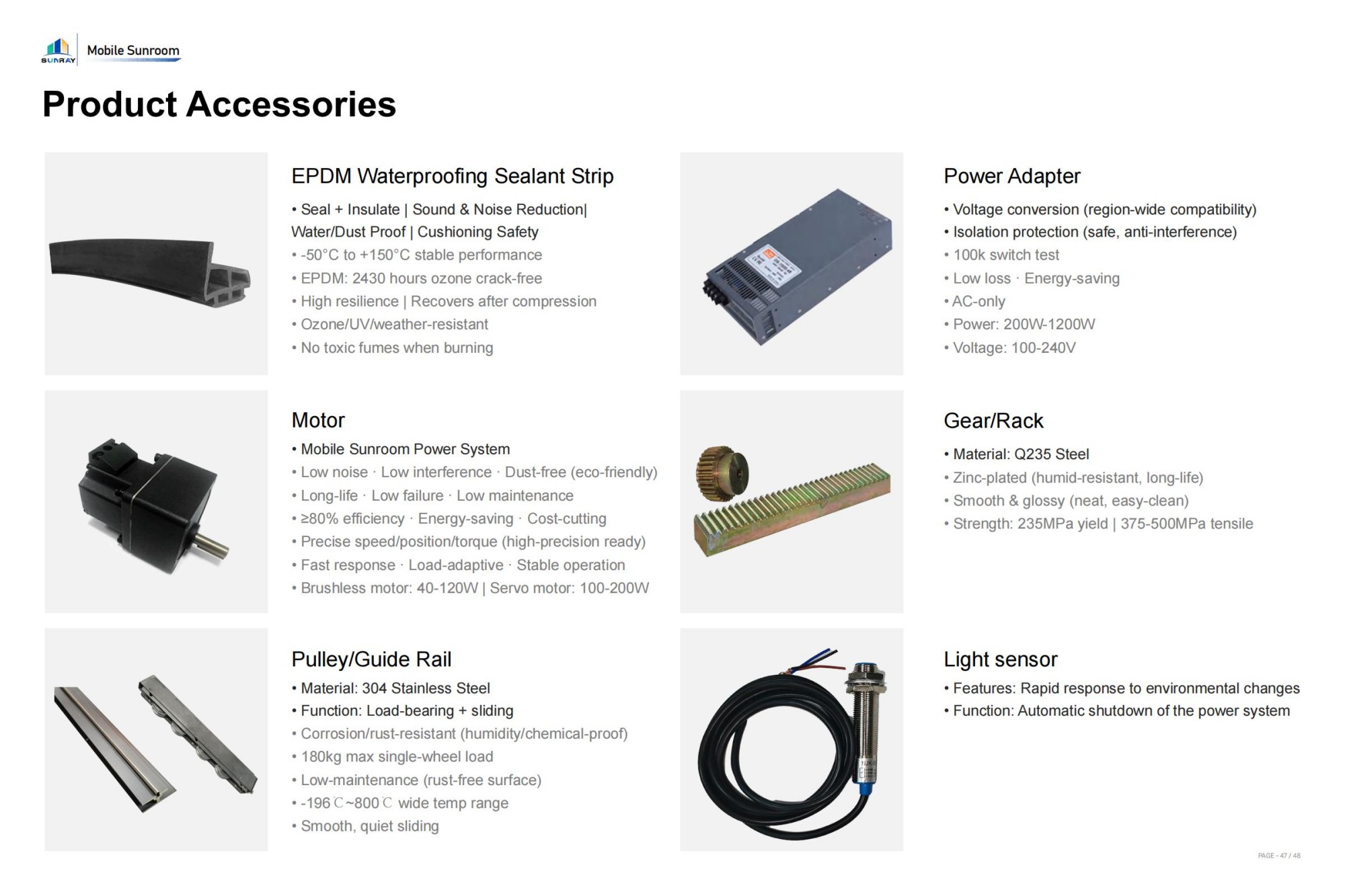

EPDM Waterproofing Sealant Strip
EPDM Waterproofing Sealant Strip
Power Adapter
Power Adapter
Motor
Motor
Gear
Gear
Guide Rail
Guide Rail
Light sensor
Light sensor

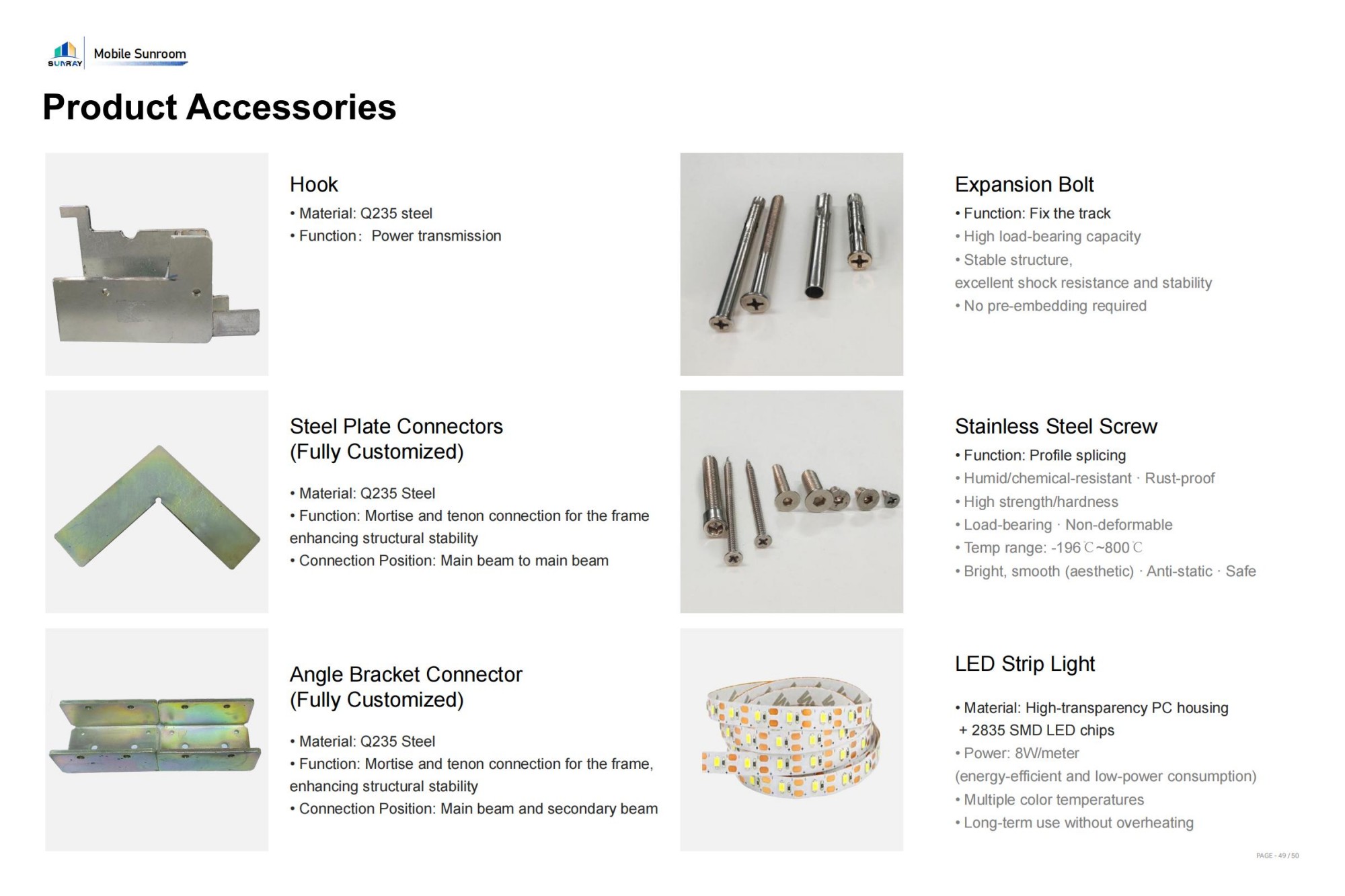

Hook
Hook
Expansion Bolt
Expansion Bolt
Steel Plate Connectors (Fully Customized)
Steel Plate Connectors (Fully Customized)
Angle Bracket Connector (Fully Customized)
Angle Bracket Connector (Fully Customized)
LED Strip Light
LED Strip Light
Stainless Steel Screw
Stainless Steel Screw

FAQ

We've grouped the guestions by categories to make it easier for you to find the answers you're looking forIf you don't see an answer to your question, please contact us

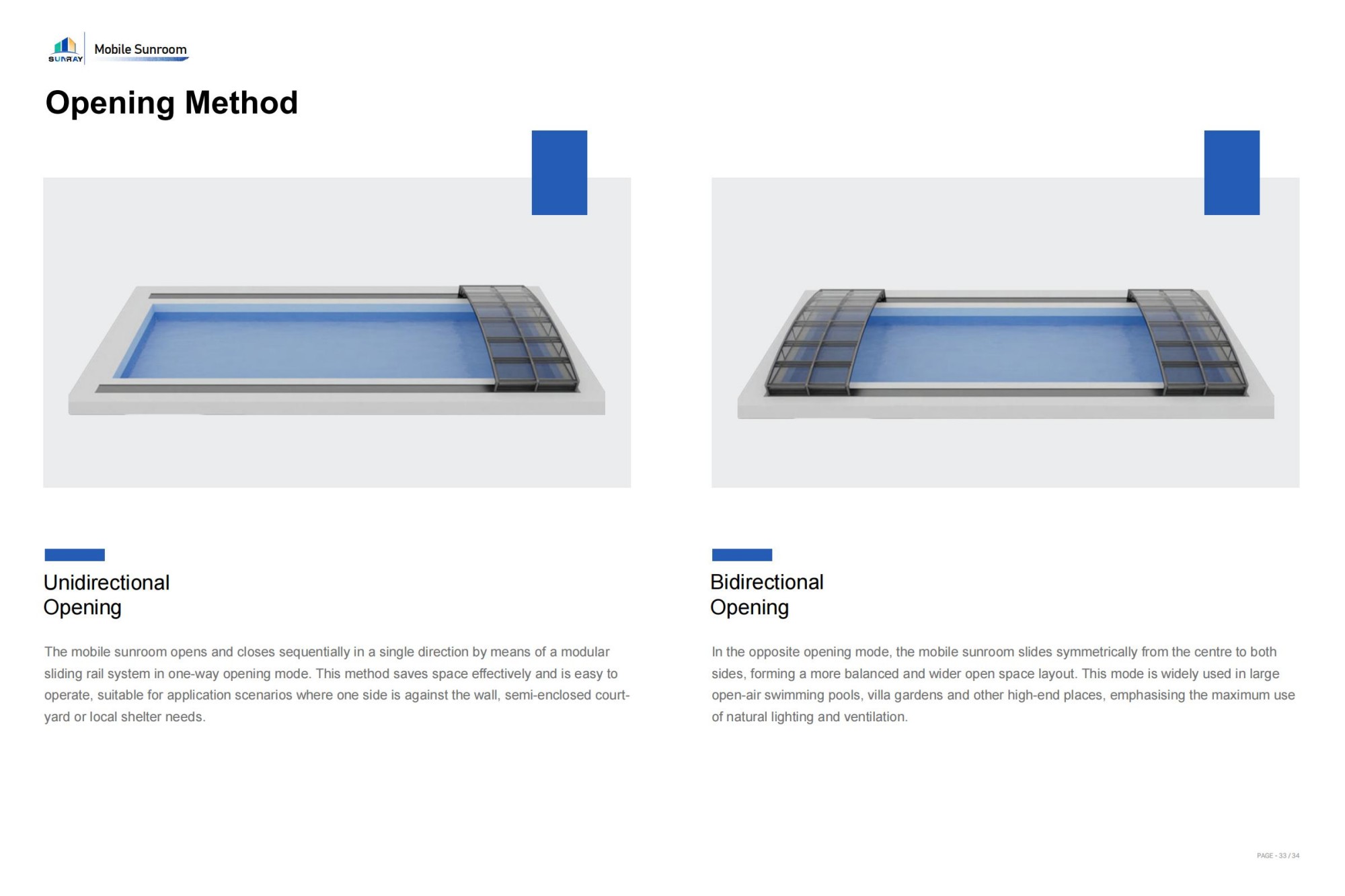

  • A mobile sunroom is a modular, sliding-track, retractable, and overlapping prefabricated sunroom. Using a track-and-rack-and-pinion system, multiple modular units can be retracted or extended to open or close the entire space. It is available in two drive types: manual and electric.

  • Equipped with a full range of customizable upgrade options to meet the diverse needs of international customers across various scenarios and for high-end applications. Optional features include: an electric smart opening/closing system (remote control/app operation), electric honeycomb blinds, Low-E low-emissivity insulated glass (for enhanced thermal insulation and condensation prevention), self-cleaning anti-stain glass, LED ambient lighting strips, a smart ventilation system, custom frame colors, and extended tracks to increase the opening area. All optional accessories are designed to fit the original structure and are installation-compatible, significantly enhancing the sunroom’s smart features, comfort, and practicality.

  • The product is designed for use in a wide range of climates worldwide: in Southeast Asia and the Middle East—regions characterized by high temperatures and heavy rainfall—it features an upgraded drainage system and a UV-resistant coating to address issues such as water accumulation and intense sun exposure; in Europe and North America—regions with severe cold and heavy snowfall—it incorporates thicker profiles and a specially designed tilt angle to withstand heavy snow and strong winds; and in coastal areas, it uses a specialized salt-fog-resistant material to prevent corrosion from sea breezes, making it suitable for all types of extreme climates.

  • The core aluminum alloy frame of the sunroom has a service life of up to 20–30 years. It is rust-proof, corrosion-resistant, and resistant to aging, and will not warp or fade even after long-term outdoor use. The tempered glass has a service life of over 20 years. Consumable parts such as weatherstripping, sliding tracks, and motors have a service life of 5–8 years; as these are wear-and-tear components, they can be easily replaced individually without affecting the functionality of the overall structure.

  • This retractable sunroom is designed for low maintenance; daily upkeep simply involves periodically cleaning dust and debris from the glass surfaces and sliding tracks to ensure smooth operation. The aluminum alloy frame is waterproof and corrosion-resistant, requiring no special painting or maintenance. We recommend inspecting the weatherstripping and fasteners quarterly to ensure a proper seal. Overall maintenance costs are extremely low, and we offer affordable, universal replacement parts, making this product ideal for long-term use.

  • The production cycle for standard products is 45 days; production time for custom orders depends on their complexity. All products are packaged to export-grade standards: foam padding plus fumigation-free export-grade plywood crates. We support sea and air freight, as well as international trade terms such as FOB and CIF, and offer global logistics delivery.
