OUTDOOR LEISURE FACILITIES

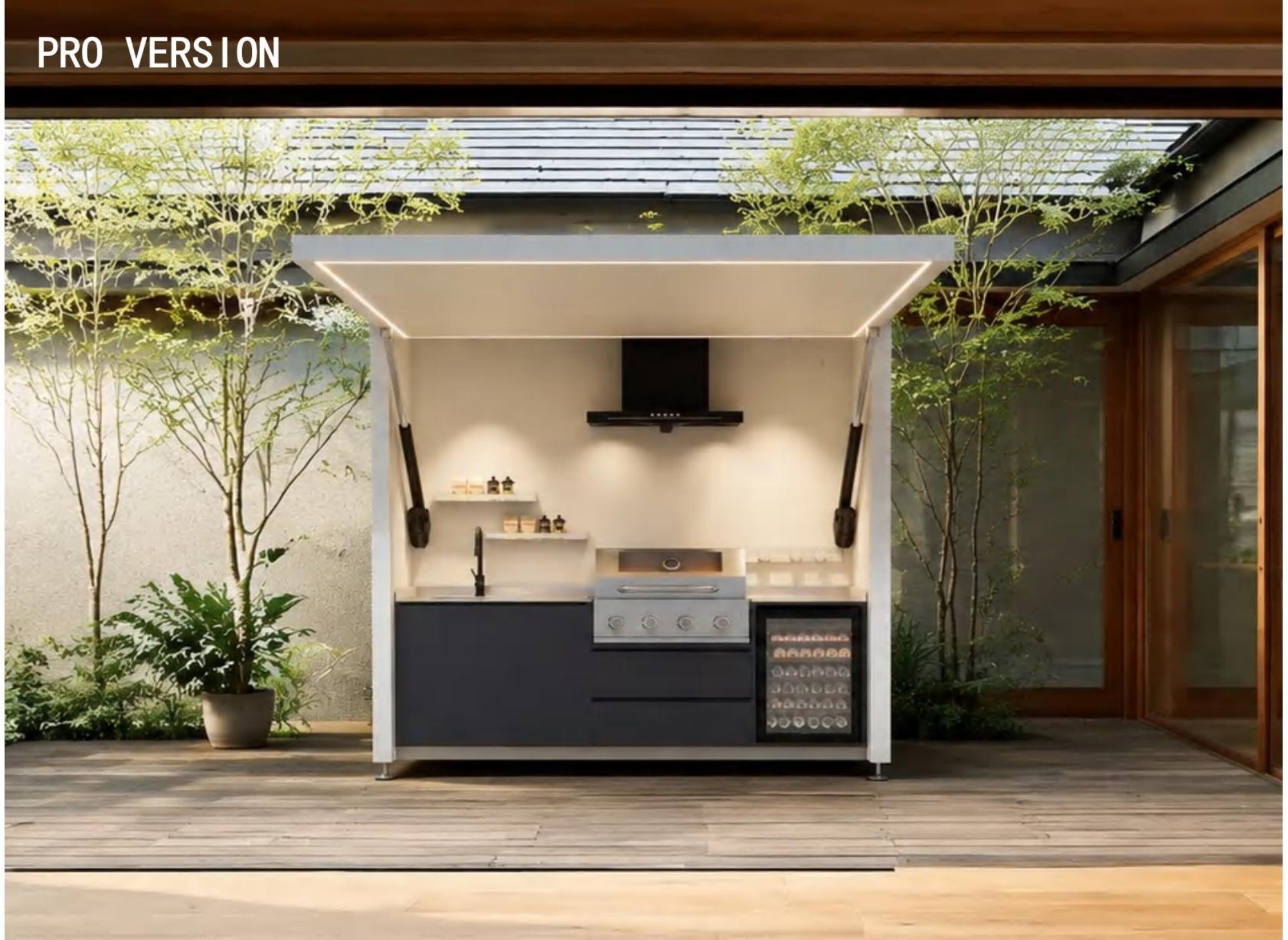

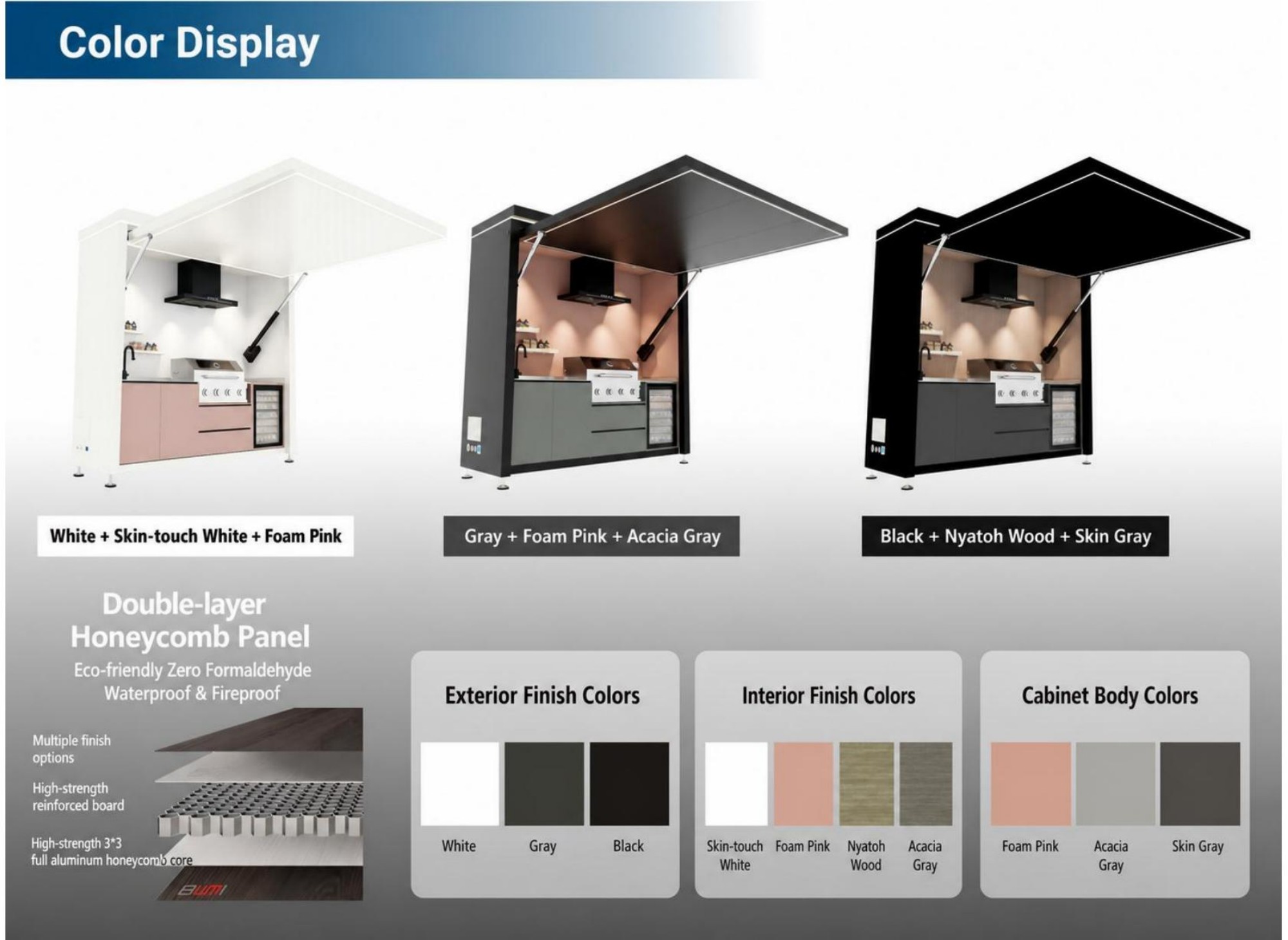

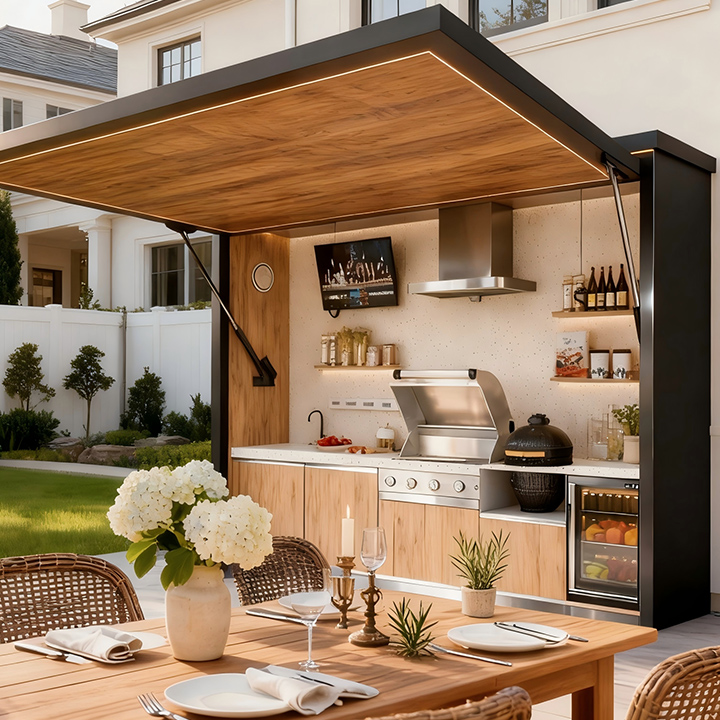

Custom outdoor kitchen set with anti-corrosion aluminum cabinet, withstand harsh outdoor weather without rust or deformation. Quartz or stone countertop options, heat resistant and easy to clean. Modules like grill, sink and storage cabinet can be integrated for outdoor cooking. Modular structure, custom size & color available. Ideal for villa patio and garden. Export grade quality.
Confirm the layout, modules, embedded appliances, countertop materials, cabinet color, voltage, and accessory list; Output a complete set of CAD production drawings; Process review checks the load-bearing capacity, high temperature heat dissipation, outdoor waterproofing, and sea freight disassembly dimensions.
Design phase (order confirmation+process deepening)
Purchase materials according to the drawings; Main materials: 6063 T5 aluminum alloy, rock slab/quartz stone/304 stainless steel countertop; 304 stainless steel hardware, EPDM rubber strip, outdoor weather resistant Aksu/Tiger powder coating, complete set of embedded electrical appliances. Perform incoming material inspection.
Material statistics and procurement preparation
Precision cutting tolerance of profiles ± 0.5mm; CNC drilling, milling of heat dissipation holes, electrical openings; Cutting, chamfering, and drilling holes in rock slabs; Remove burrs and aluminum shavings from all workpieces.
Precision CNC machining
Aluminum profile corner code positioning+fully welded cabinet body; Welding seam polishing; Calibrate the square and diagonal errors; High overall rigidity, supporting full container shipping.
Frame forming (overall full welding reinforcement)
Complete pre-treatment (degreasing, water washing, acid washing, phosphating, pure water washing); Electrostatic outdoor powder coating, high-temperature curing at 180 and 200 ℃; Coating 60 80 μ m; Detect color difference, adhesion, and UV salt spray resistance.
Outdoor weather resistant surface treatment
Assembling adjustable feet for leveling; Install hinges, drawer slides, and EPDM waterproof rubber strips; Pre installed sink waterway; Fix the countertop with weather resistant adhesive and create drip edges; Pre installation and alignment of embedded ovens and refrigerators.
Cabinet assembly and electrical pre installation
Complete trial assembly of the entire machine; Electrical compatibility testing; Hardware opening and closing test; Re inspection of heat dissipation in the barbecue area; Water pressure test and leak detection for waterway; Verification of appearance dimensions; Count the complete set of accessories and English manuals.
Whole machine FAT debugging and QC quality inspection

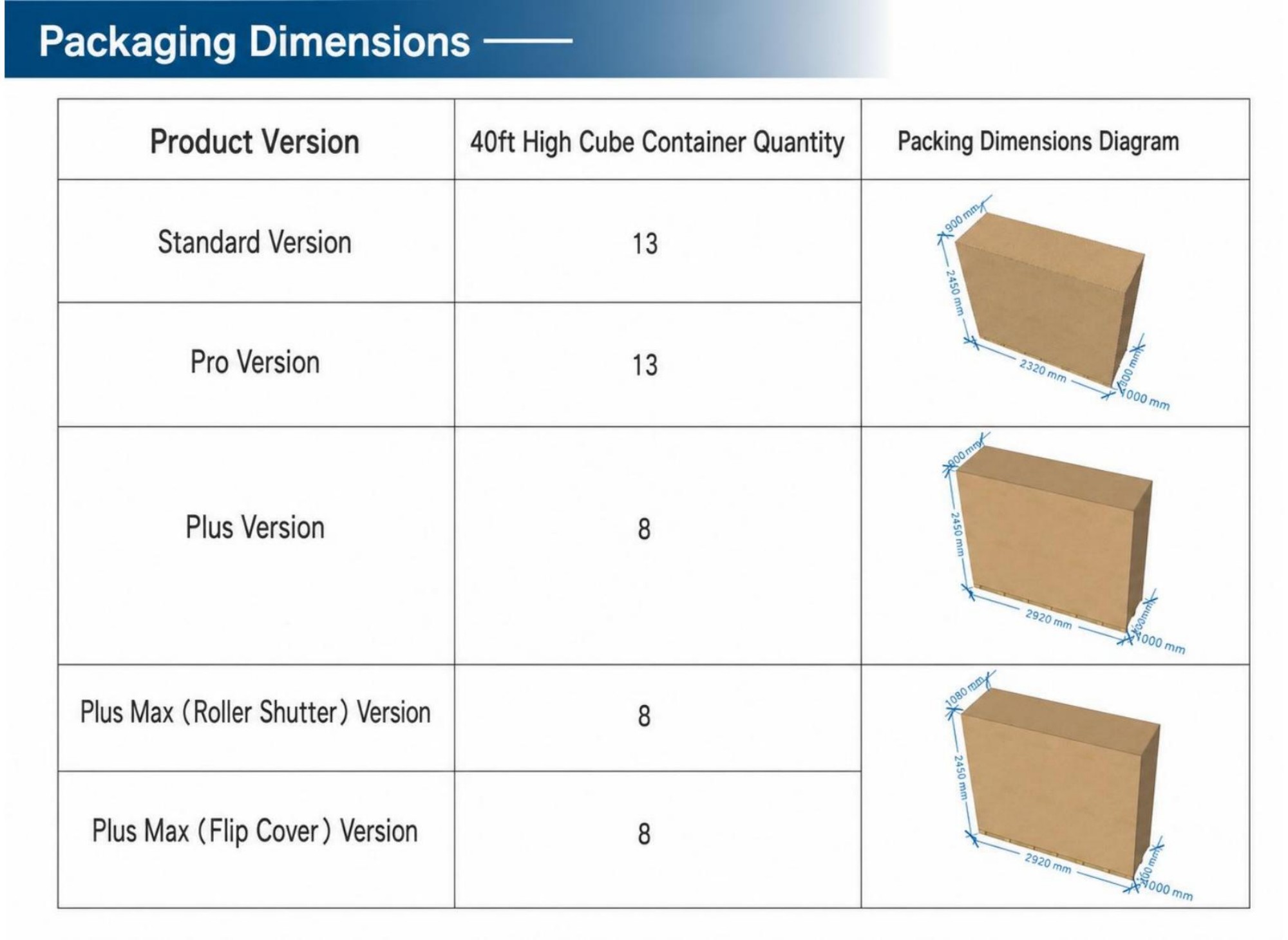

Protective film+corner protection; Modular classification packaging; Large non fumigation wooden frame reinforcement; Accompanied by packing list, instruction manual, and quality inspection report; Container loading for shipment.
Finished product protection, packaging, and shipping by sea
Comprehensive inspection to ensure product quality, safety, and performance.
The wall thickness of the profile steel meets the standard without cracks or peeling; Insulation board B1 flame retardant; Glass without bursting edge bubbles; The hardware coating and electromechanical accessories meet the outdoor weather resistance requirements.
Cutting error ≤ ± 0.5mm; smooth curved bending; CNC hole positioning accuracy; The workpiece is deburred and clean.
No virtual welding, leakage welding, slag inclusion, or porosity; The load-bearing weld seam has passed the non-destructive testing; Diagonal error of cabin body is ≤± 3mm; rust removal is thorough.
Pre treatment qualified; The coating is uniform without any exposed base or powder loss; Coastal version salt spray ≥ 1000h, UV resistant and corrosion-resistant.
The insulation boards are tightly spliced together; The gaps between the exterior wall panels are uniform, and the drainage drip trough is compliant; Multi layer waterproofing on the roof without water accumulation or seepage; The door and window rubber strips are well sealed and open and close smoothly.
No leakage in water supply and drainage; Strong and weak current grounding leakage protection is normal; Pipeline identification is clear, and concealed information is archived.
The interior pavement is flat without any raised edges; The installation of smart bathroom air conditioning equipment is firm; Apply glue smoothly without any bubbles.
No leakage in water pressure test; 72 hours of power on aging without any faults; The linkage of smart devices for doors and windows is normal; There are no scratches or dents on the appearance.
The structure, waterproofing, and mechanical and electrical functions are all qualified; The accessory manual is complete and meets the requirements for shipping by sea.
We've grouped the guestions by categories to make it easier for you to find the answers you're looking forIf you don't see an answer to your question, please contact us

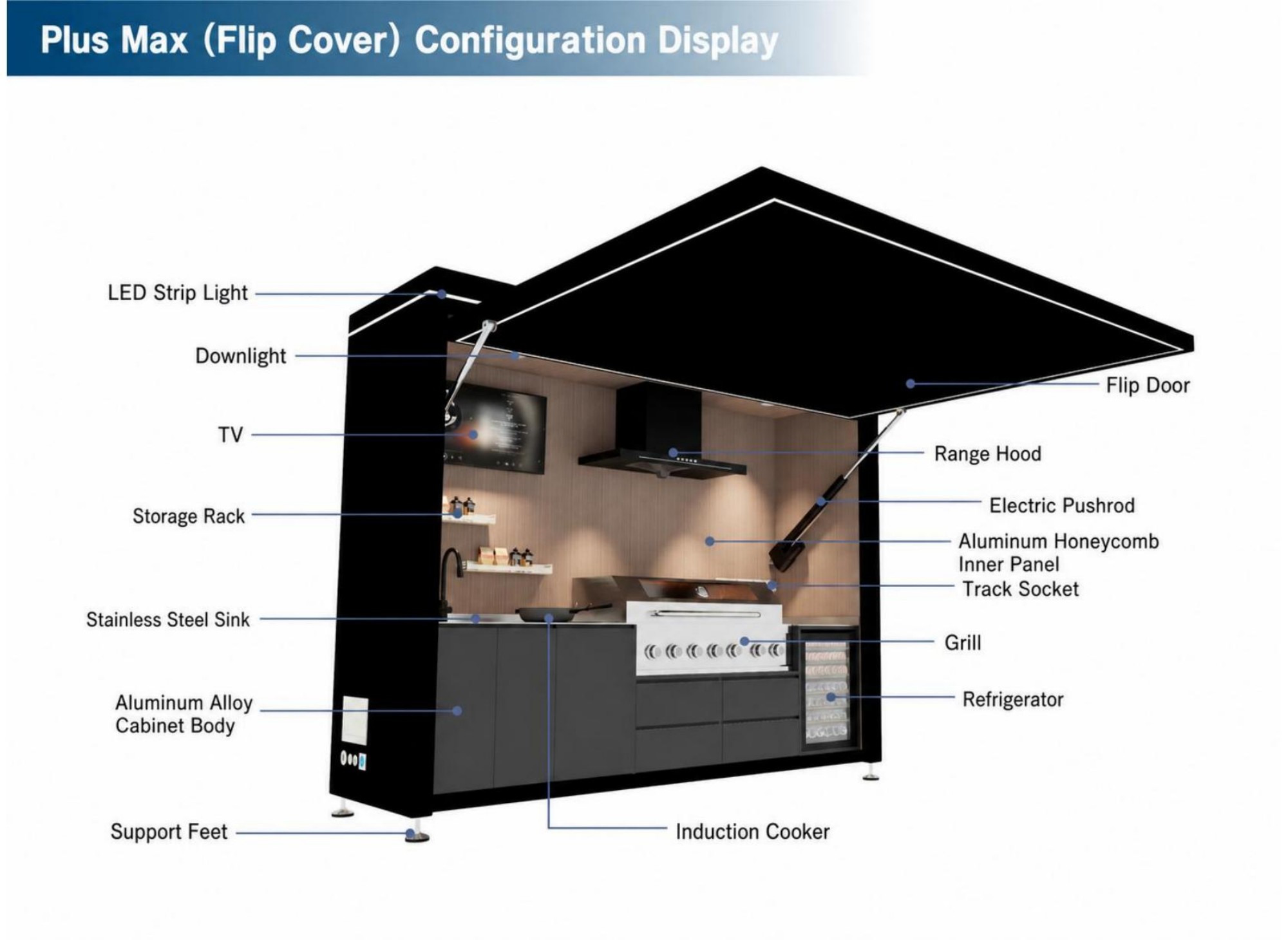

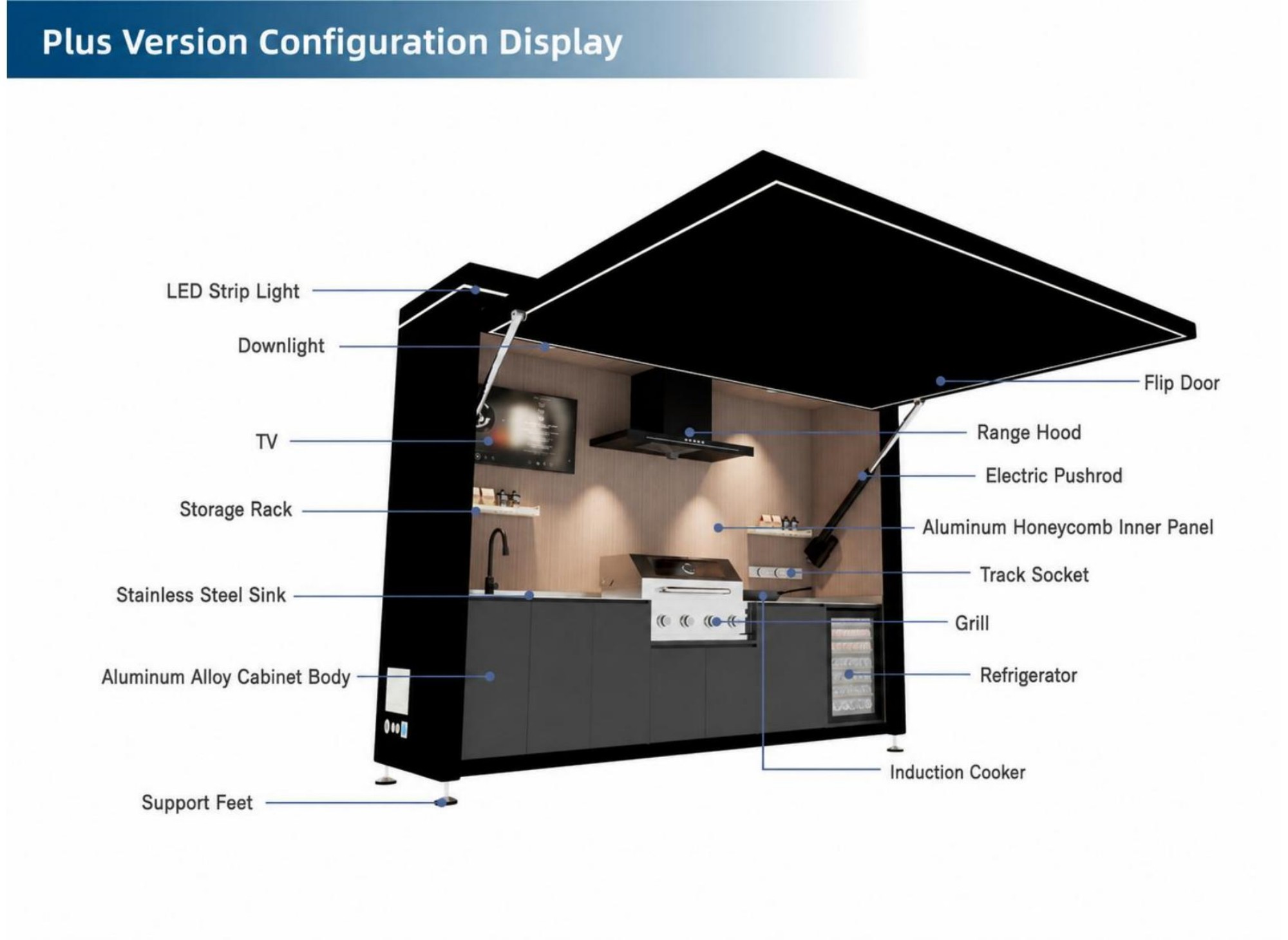

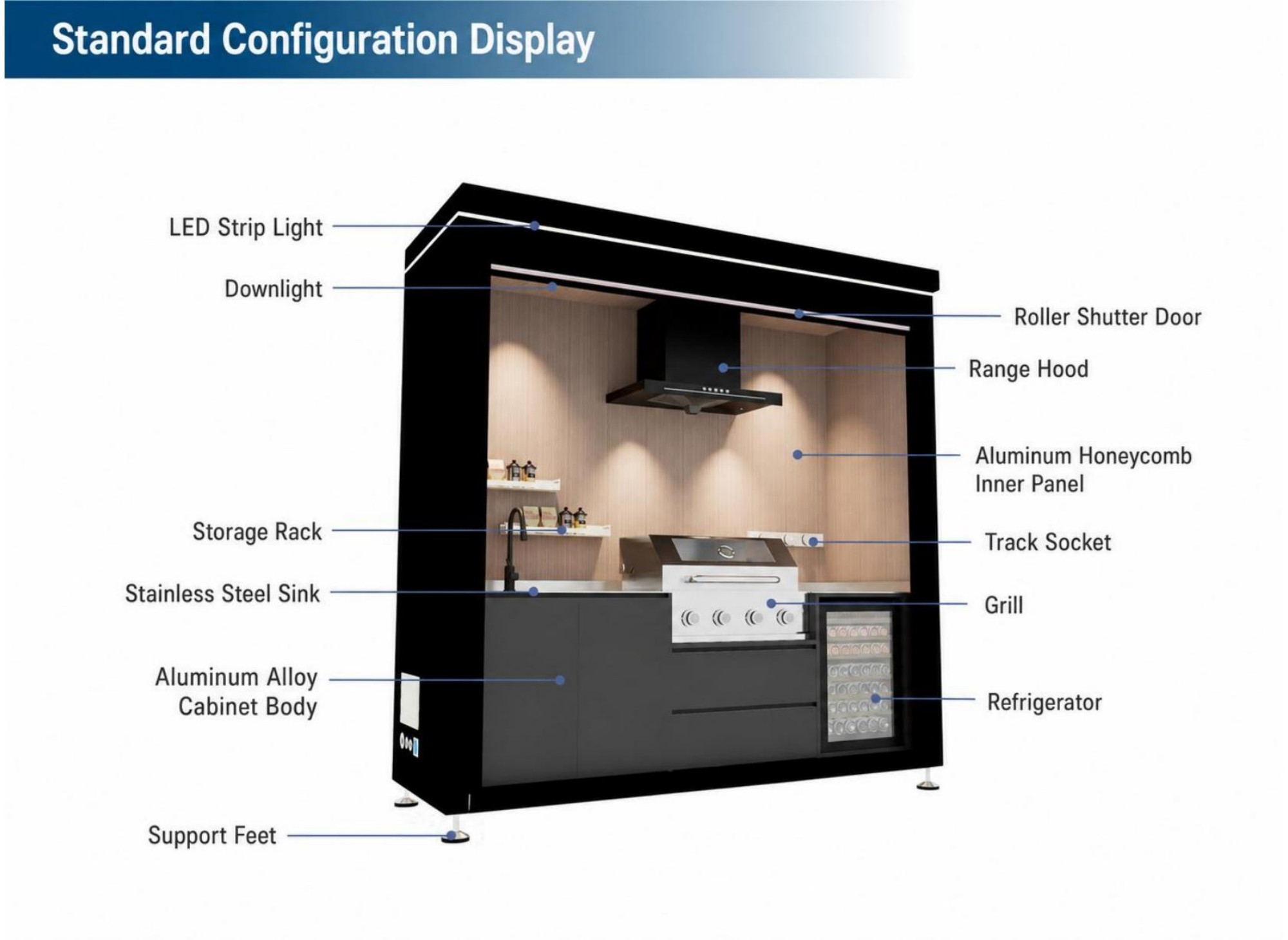

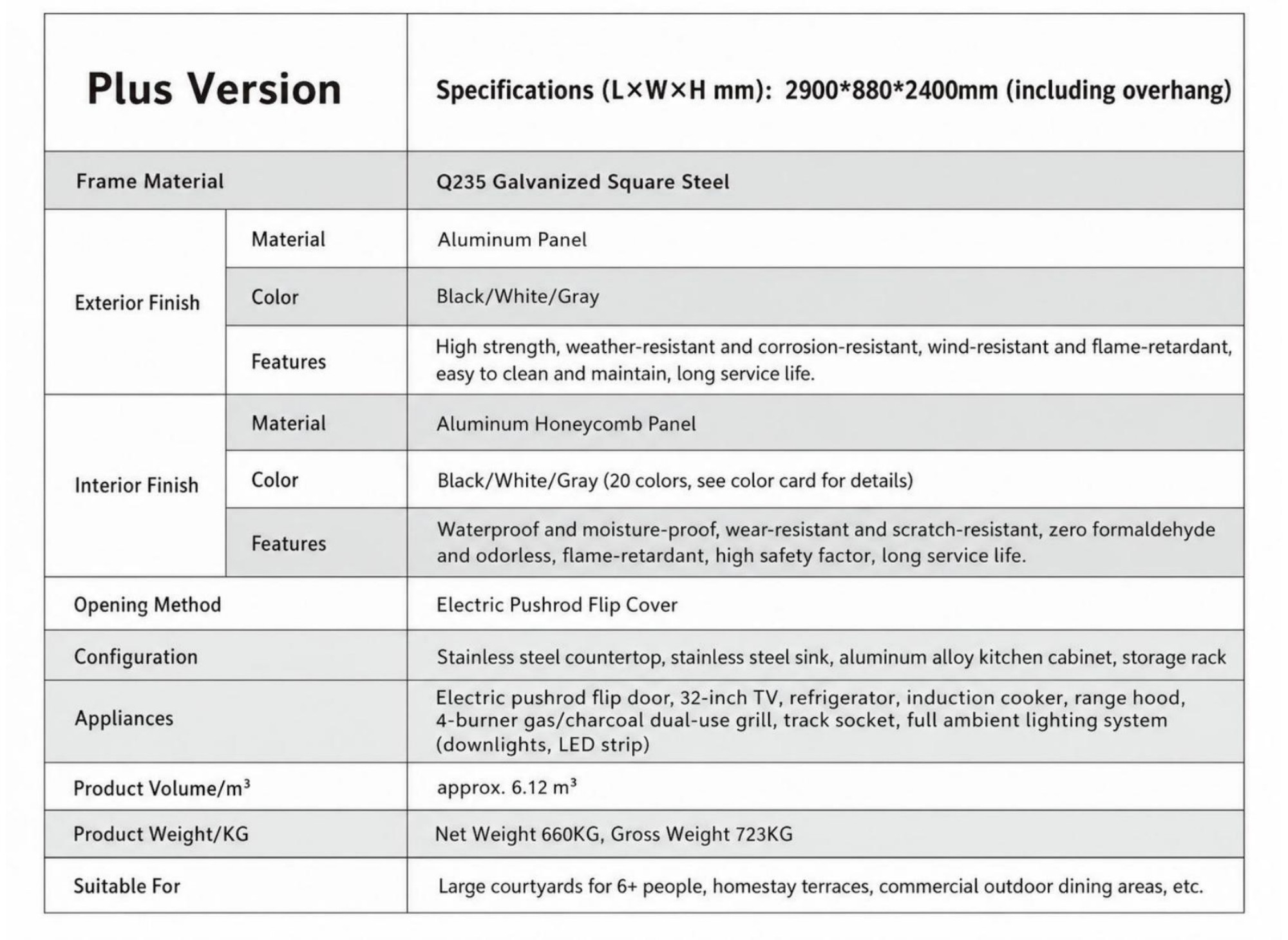

The outdoor kitchen is an all-in-one, weather-resistant food preparation and grilling station designed to blend seamlessly into the backyard. It features a Q235 steel internal frame and aluminum panels as the exterior cladding, and integrates a built-in grill, sink, storage, and bar counter, with pre-installed water, gas, and electrical lines. It is ideal for backyard dinners and barbecues and is distinct from simple portable grills.

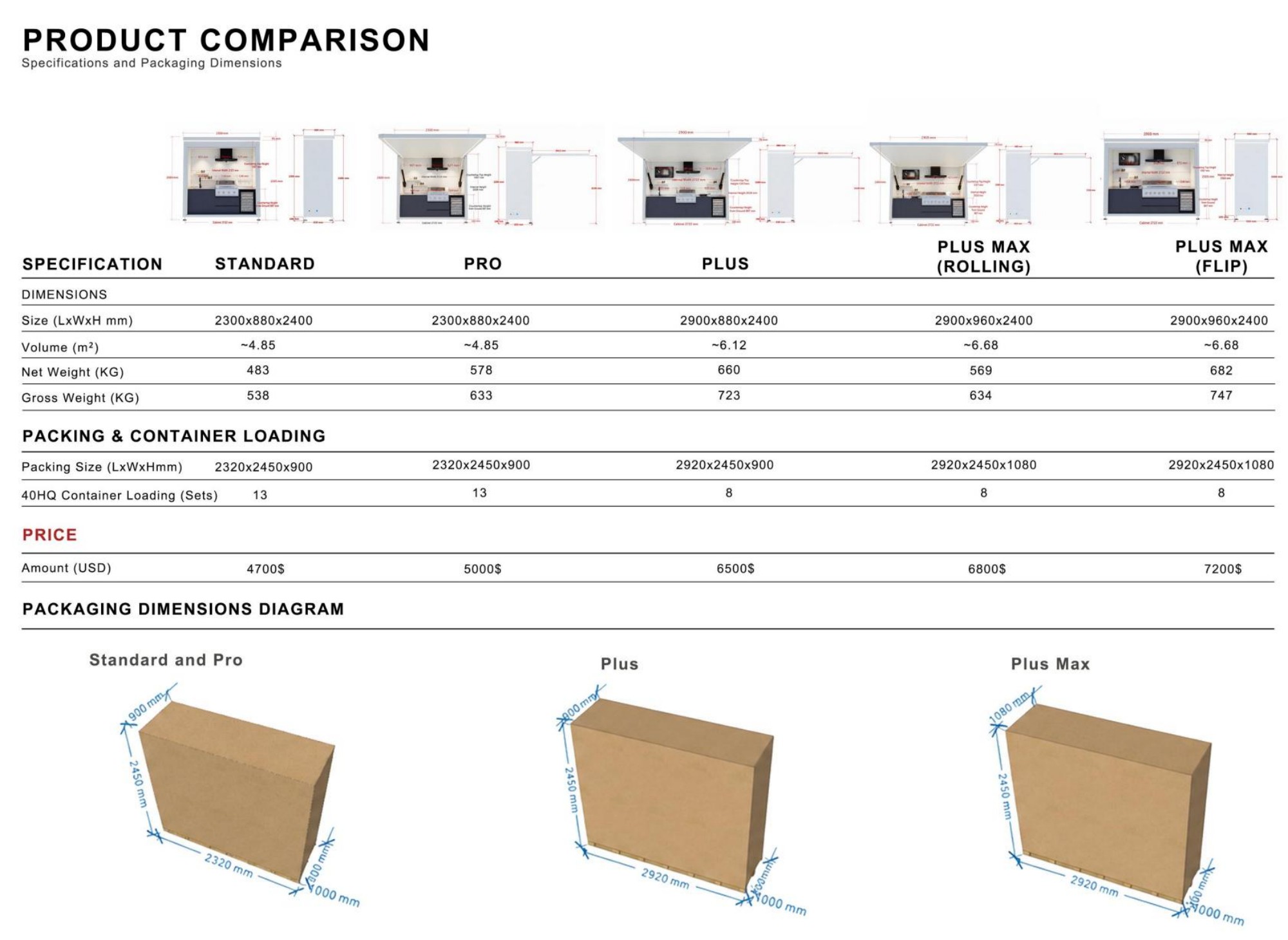

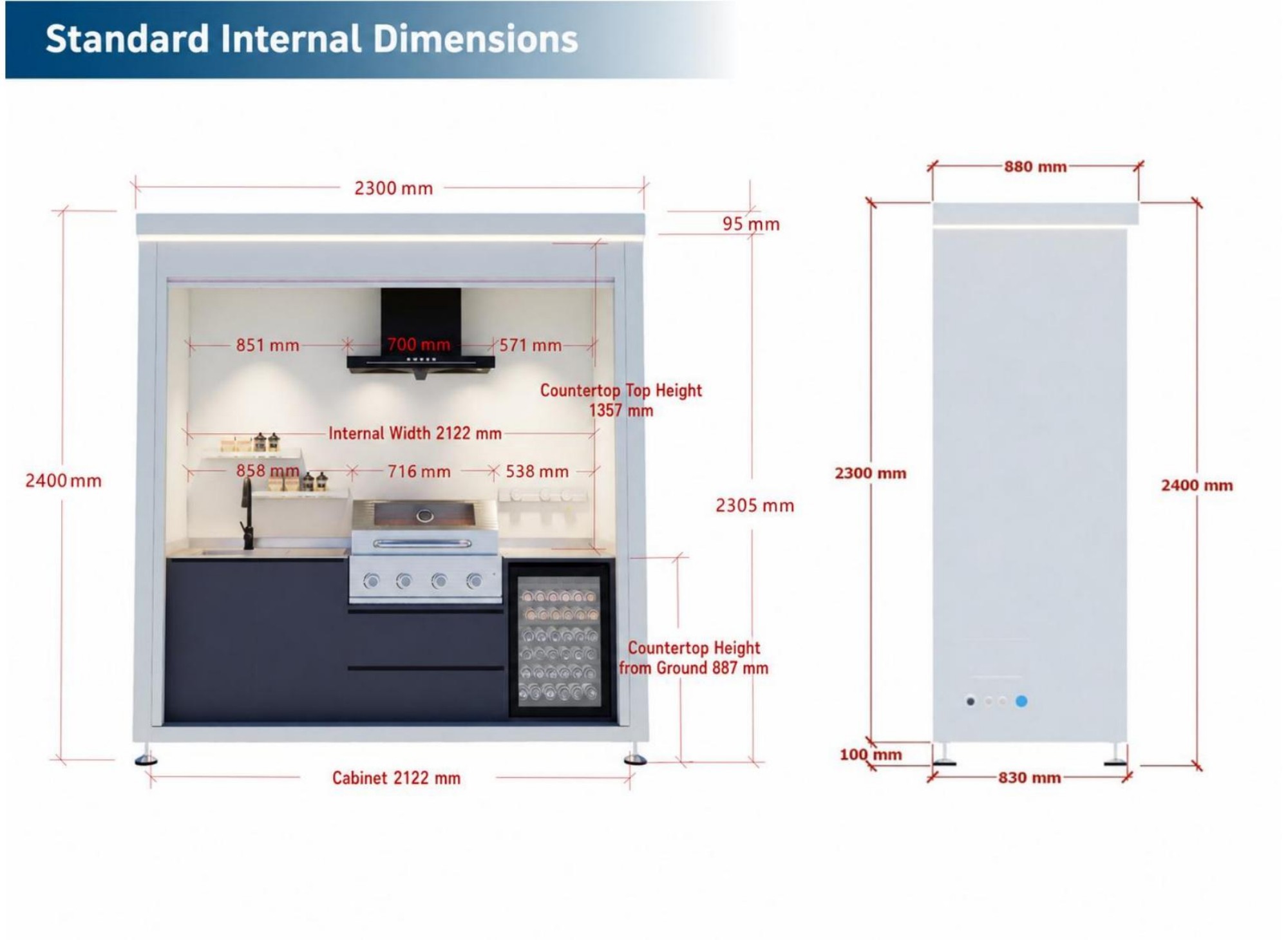

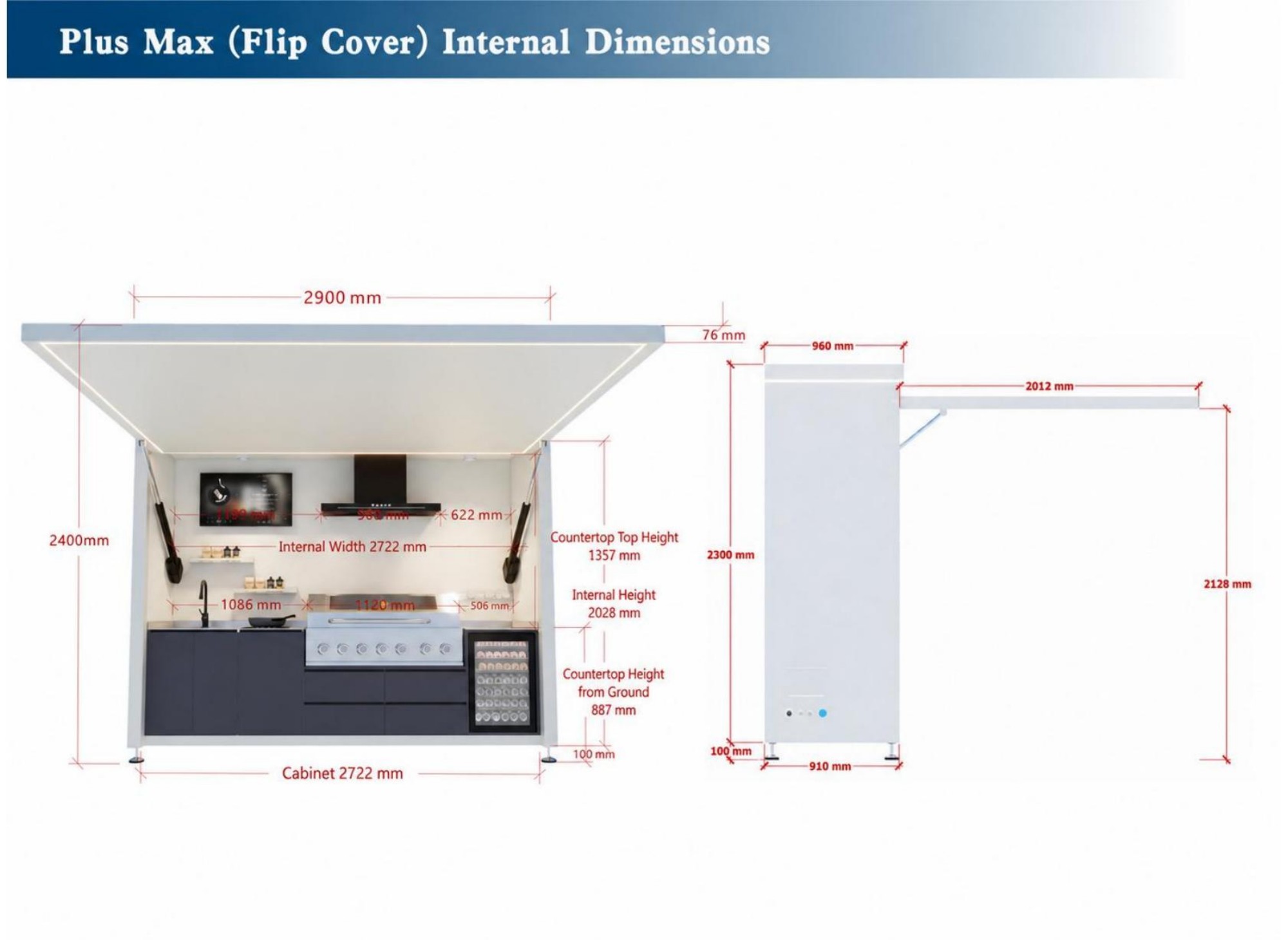

All-in-one direct-vent outdoor kitchens for home use typically have a maximum length of 5.5–6 meters and a depth of 0.9–1.05 meters for a single section; lengths exceeding 6 meters require a modular design. L-shaped, U-shaped, or commercial models can be made even longer, but due to slab size and truck transport limitations, extra-long countertops require slab splicing.
The entire structure features aluminum alloy exterior panels, with welded reinforcements at the joints and sealed with specialized outdoor structural adhesive, providing excellent outdoor water resistance and easily withstanding everyday rain.
The device can be used normally in light rain; electrical components are not affected by rain. In case of severe weather, such as strong winds or heavy rain, it is not recommended to operate the device outdoors; prioritize personal safety.
With normal outdoor use and proper basic maintenance, the product has an overall service life of up to 8 years; the unit comes with a 1-year warranty (limited to non-human-caused damage; wear-and-tear parts are not covered by the warranty).
1. For daily cleaning, wipe down the cabinet body, door panels, and countertops with water and a neutral detergent. Avoid strong acids, strong alkalis, and abrasive cleaners to prevent damage to the surface coating.
2. Clean the drainage holes at the bottom of the cabinet regularly to prevent silt, sand, and debris from clogging them and causing water to accumulate;
3. Inspect the sealant around the countertop, sink, and stove cutouts annually. If cracks or delamination are found, replace the sealant promptly with outdoor-grade MS-modified silane sealant. Apply weather-resistant grease to hinges and locking hardware periodically to extend their service life.
4. In long-term outdoor environments, it is recommended to periodically rinse the surface to remove dust and salt deposits, thereby maintaining the appearance and corrosion resistance.
