SKYLIGHT SYSTEM
Our Retractable Skylight uses durable aluminum profile. Multi-panel overlapping sliding design brings large ventilation area. Double tempered insulated glass provides sound and heat insulation. Multi-layer sealing strips prevent water leakage. Smooth operation, manual or motorized available. Widely used for sunroom roof, basement light well and rooftop. Customizable, export quality.
Specify dimensions, material, opening method, and glass specifications; provide a separate BOM for individual components.
Design Drawings and Material Breakdown
Collect profiles, glass, hardware motors, and sealing strips according to the list.
Material Calculation, Procurement and Material Requisition
Cutting boards, sawing machines, and laser cutting to obtain raw parts.
Scheduling and Cutting Materials
Frame welding, control welding parameters to avoid virtual welding, porosity, and cracks.
Welding
Polish and clean welding slag and oxide skin on welds, burrs, and sharp edges.
Polish
Pre processing of workpieces; Spray outdoor coatings and cure; Check the appearance and adhesion of the coating.
Spray Painting and Coloring
Assemble profiles, glass, rubber strips, and hardware; Electric models are equipped with motors, sensors, and control wires.
Sunroof Assembly
Manually adjust the opening and closing limit; Electric debugging remote control, limit, rainproof induction, overload protection
Complete Machine Function Debugging
Necessary modular disassembly; Pearl cotton wooden crate with wooden frame for protection, packed and shipped.
Dismantling, Protective Packaging, And Shipping
Comprehensive inspection to ensure product quality, safety, and performance.
The model, size, glass hardware, and contract drawings are consistent; The profile glass has no scratches, paint peeling, or cracks.
Even gaps without deviation; Fit the roof slope; The fixed parts are complete, firm, and without shaking.
Tempered/insulated glass with 3C coating; no scratches or edge bursts; Hollow without fogging and water ingress; The rubber strip is continuously and completely adhered.
Manual: The handle, hinge, and wind support are complete; Smooth opening and closing without any jamming or abnormal noise; The limit can be stably positioned; The locking point is in place.
Electric: The motor runs smoothly without any abnormal noise or vibration; Accurate remote start stop limit; Effective power-off and overload protection; Rain proof sensing function is normal; Line insulation and waterproofing.
Roof edge trimming and smooth water lap joint; The adhesive seam is full and continuous without bubbles; The drainage holes of the drainage trough are unobstructed and unobstructed.
No obvious air leakage after closing; Compliant glass profile insulation configuration; Screw holes are sealed, and there are no sharp burrs on the edges and corners.
Safety glass; Reliable load-bearing capacity of hardware; Complete anti fall devices; Insulation and leakage prevention of electric power lines.
If there is shaking or looseness, opening and closing failure, water seepage, fogging and cracking of glass, waterproof failure, or damage to the profile, it will be directly judged as rework.
In order to better meet your needs, we support color customization forlarge ordersensuring that each product perfectly reflects your brandstyle..
Champagne Gold
+$45 USD per square meter
In order to better meet your needs, we support color customization forlarge ordersensuring that each product perfectly reflects your brandstyle..
We've grouped the guestions by categories to make it easier for you to find the answers you're looking forIf you don't see an answer to your question, please contact us
Retractable Skylight, also known as overlapping sliding skylights, feature multiple window panels that overlap vertically. Multiple sets of panels slide horizontally along a single track; when opened, the glass panels stack on top of one another and retract to one end, creating a large opening; When closed, they unfold sequentially to cover the entire opening; once open, the window panels overlap,

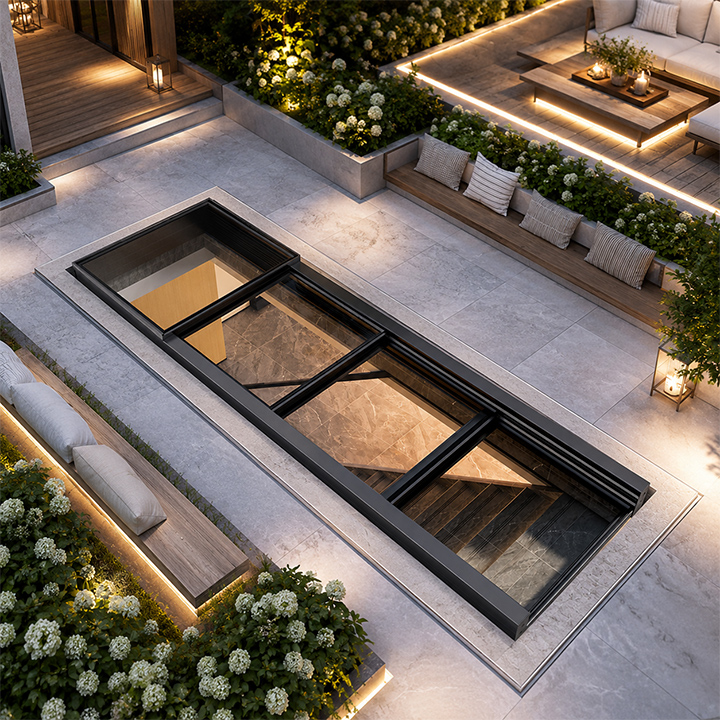

taking up no vertical space indoors. They are commonly used in sunrooms, sunken courtyards, and basement light wells.
Typically, 3–5 panels per set; the recommended width for a single panel is ≤1500 mm, and the maximum length is ≤2000 mm; for extra-large ceiling areas, panels can be flexibly arranged in a row.

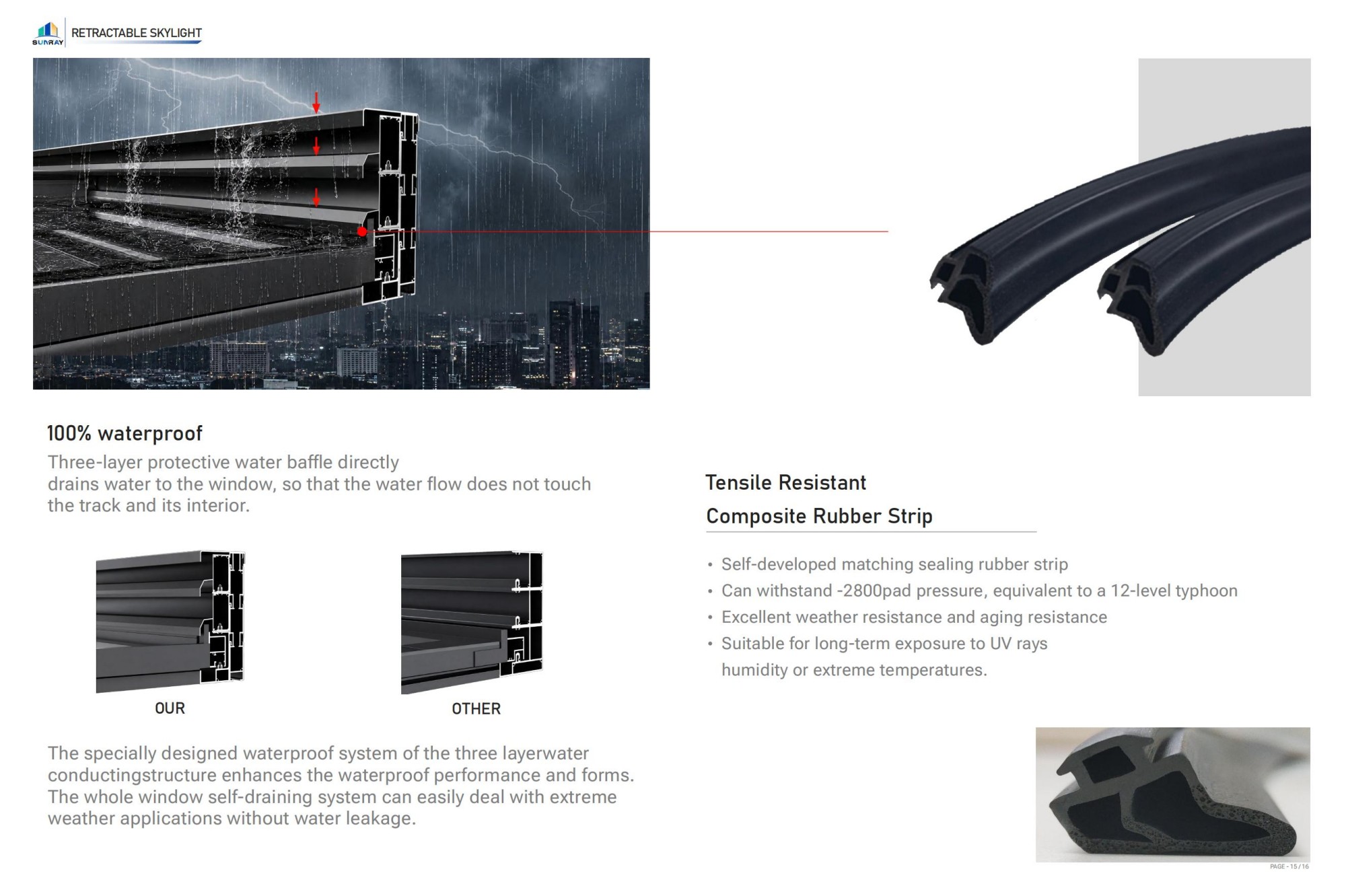

The profiles are designed with overlapping grooves at varying heights and dual-layer drainage channels; EPDM (ethylene propylene diene monomer) sealing strips are installed at the overlaps.
Common causes of leaks: drainage channels clogged with leaves and dust; insufficient roof slope;
It is recommended to maintain a height difference of 150–200 mm between the front and back of the roof to ensure gravity drainage.
Under normal conditions, the pulleys and drive components can be opened and closed more than 40,000 times; the motor is covered by a 2-year warranty, and the aluminum profile frame is covered by a 10-year warranty.

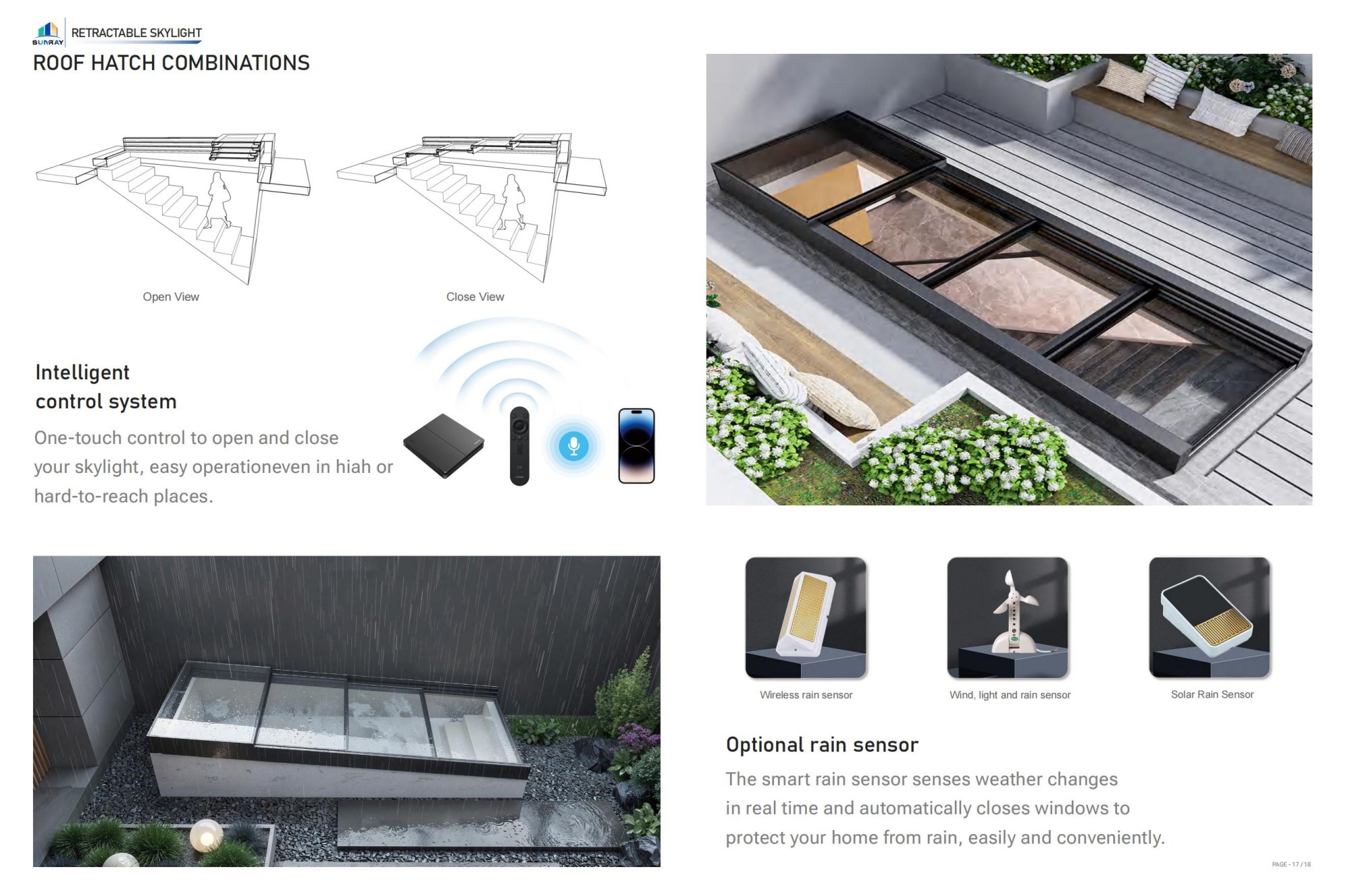

When connected to an external rain and wind sensor, the system automatically shuts off when a rain signal is detected; temperature sensors and smoke detectors can also be installed to trigger the system’s activation in conjunction with the factory’s fire suppression and smoke exhaust systems.
1. Clean fallen leaves and silt from the tracks and drainage channels every six months;
2. Lubricate the roller tracks;
3. Check the sealing strips at the joints for cracks;
4. Tighten the screws securing the motor and pulleys.
