Sliding Door

Our Minimalist Sliding Door adopts high-quality thermal break aluminum frame, sturdy and durable. Ultra-narrow frame maximizes lighting and viewing area. Double tempered insulated glass with multi-layer sealing provides excellent sound insulation, heat insulation and dustproof performance. Silent sliding rollers ensure smooth and quiet operation. Custom size and color available, perfect for modern interior partition, balcony, living room and sunroom. Export grade quality.

Product Features

No. FEATURE ITEM DESCRIPTION
1 Dual‑Chamber Insulation Design Adopting advanced dual chamber insulation design, combined with high‑quality multi chamber insulation strips, it completely breaks the high thermal conductivity path of traditional aluminum alloys.
2 Heat & Cold Blocking Effectively blocking summer outdoor heat waves, locking in winter indoor warmth, significantly reducing air conditioning and heating energy consumption.
3 Comfort Temperature Environment Maintaining a pleasant temperature environment throughout the year.

Scene Effects

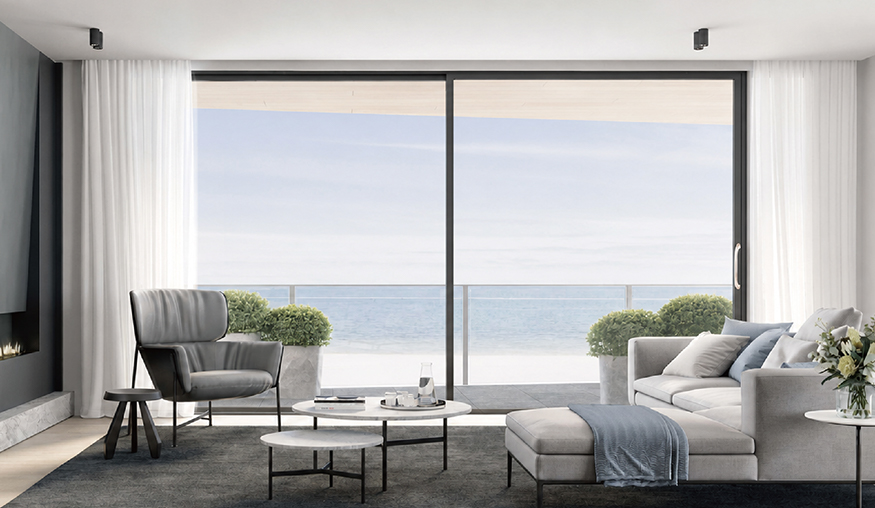

scene main

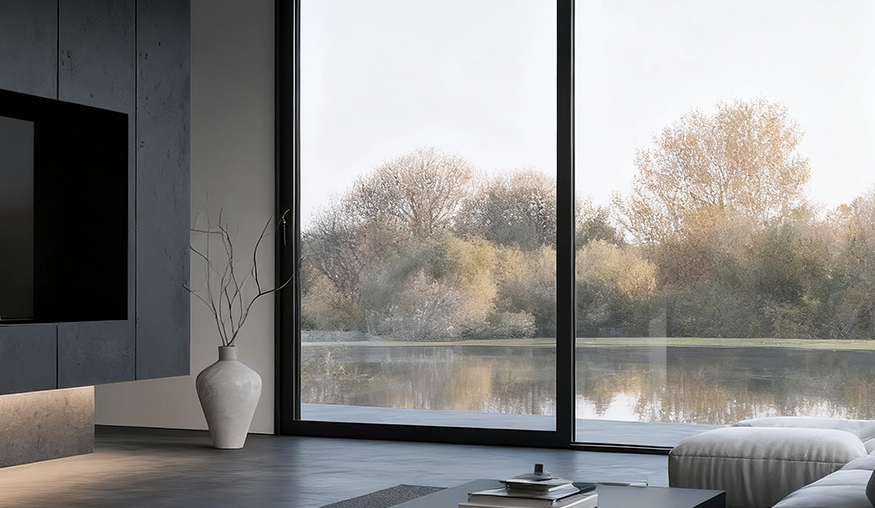

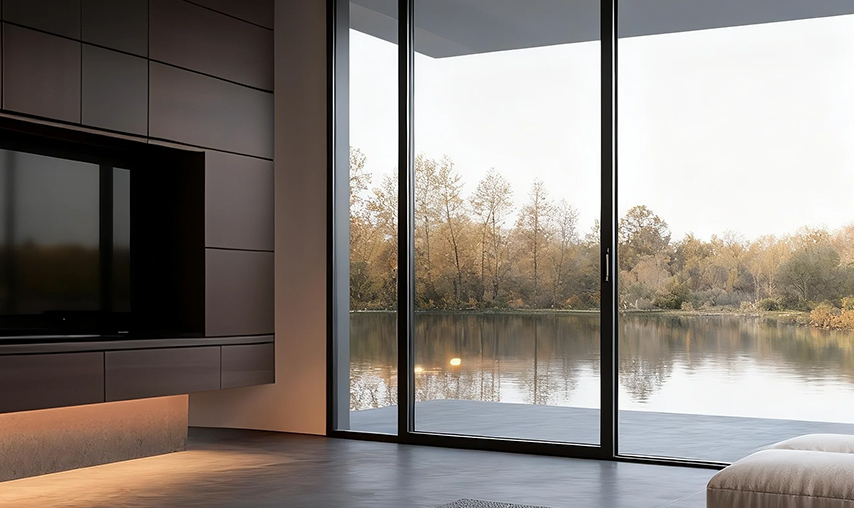

scene left scene right

6063‑T5 Aerospace‑Grade
Titanium‑Magnesium‑Aluminum Extrusions

We use brand‑new virgin aluminum and do not use recycled aluminum.

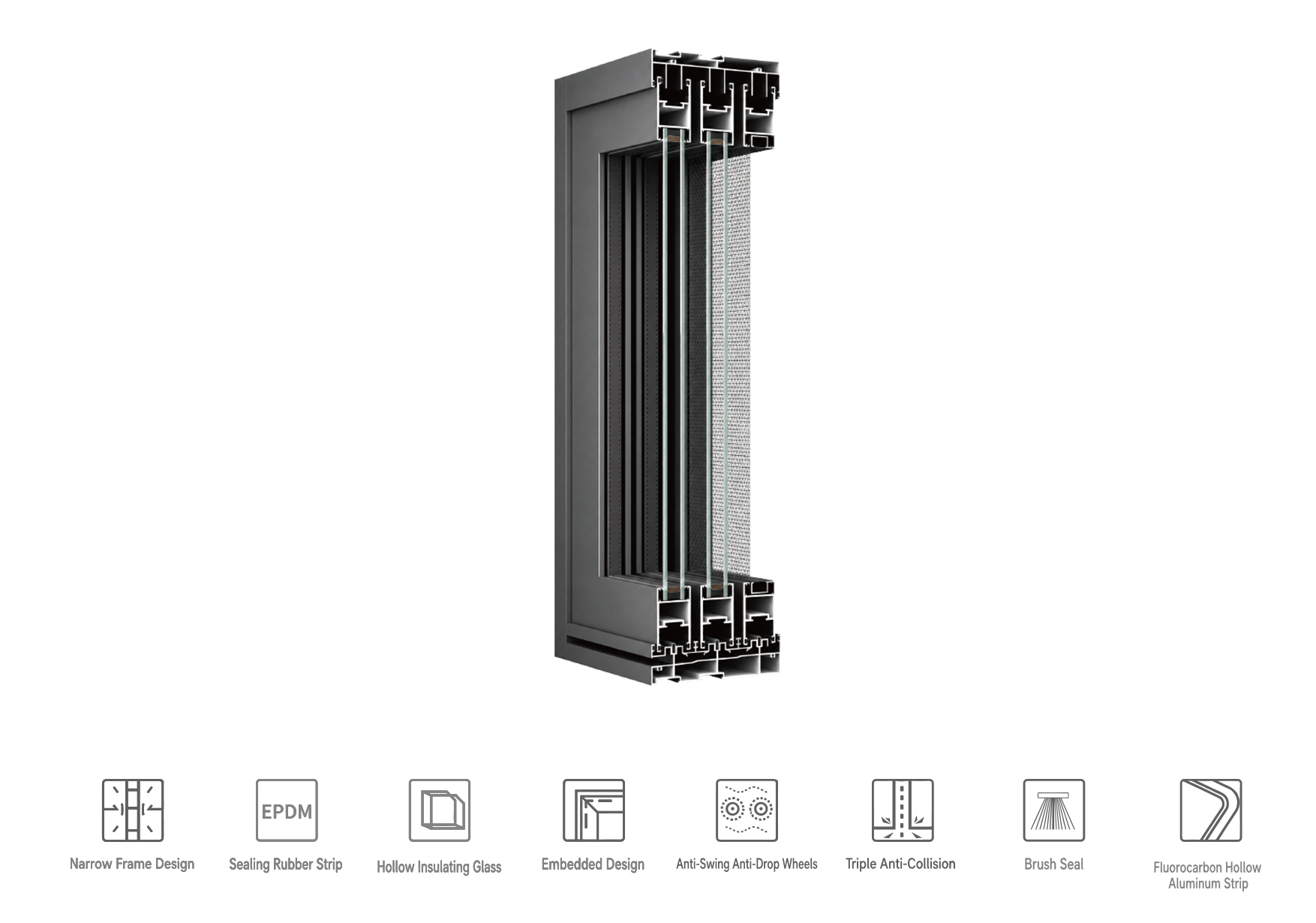

6063‑T5 profile and icons

Product Performance

PARAMETER VALUE STANDARD STATUS
Wind Resistance 1600Pa EN 12212 Tested
Water Penetration 500Pa EN 1027 Tested
Air Infiltration ≤0.5 L/s·m² EN 12207 Tested
U‑Value (Wall Glass) 1.4 W/m²K EN ISO 10077 Energy
Sound Reduction Rw 30‑34dB EN ISO 717‑1 Acoustic

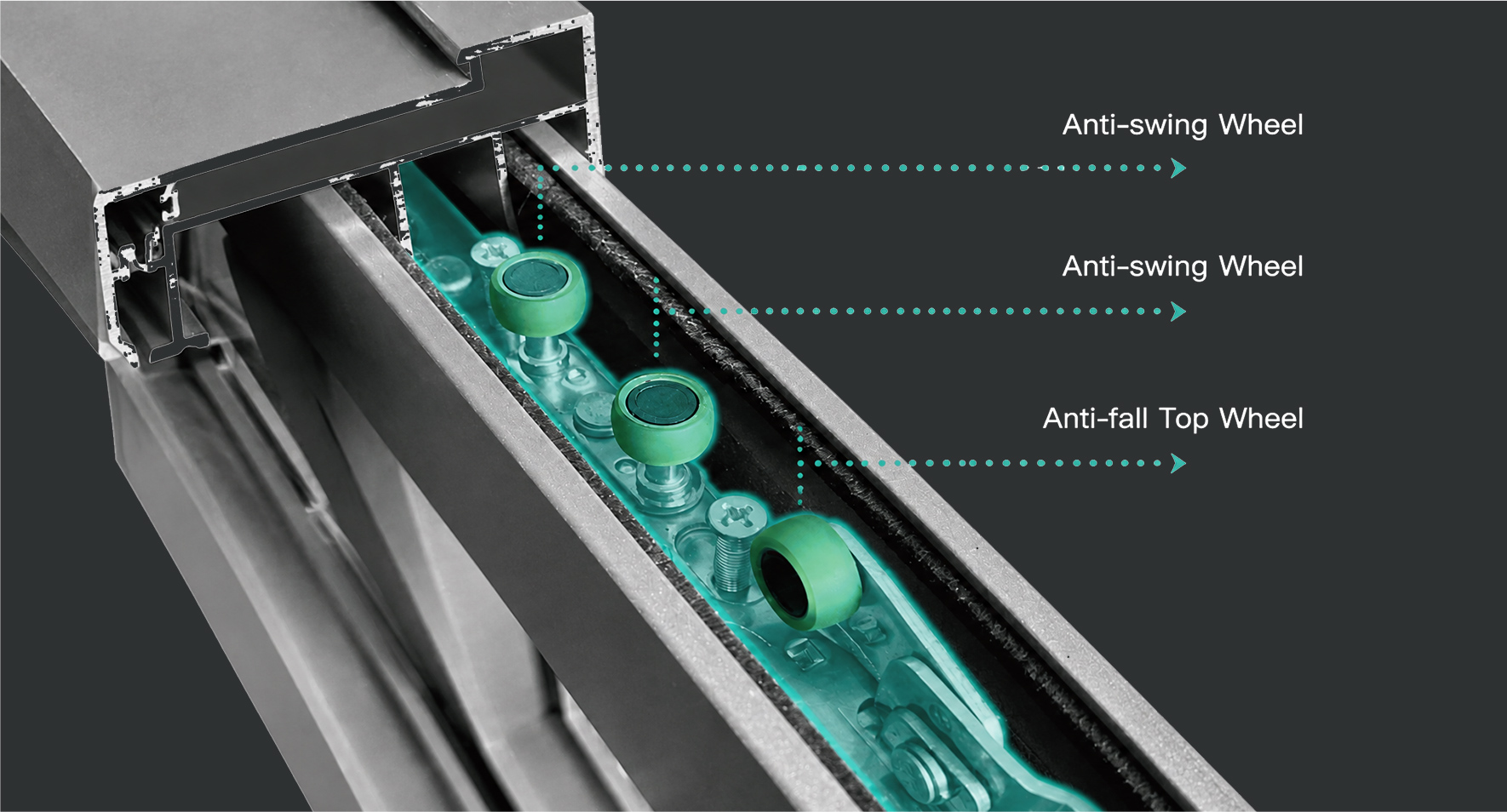

Anti‑swing Wheel

Comes standard with a fall‑arrest and anti‑swing wheel

The upward sliding mechanism features anti‑fall and noise‑reduction performance and anti‑swing wheels, providing superior anti‑sway

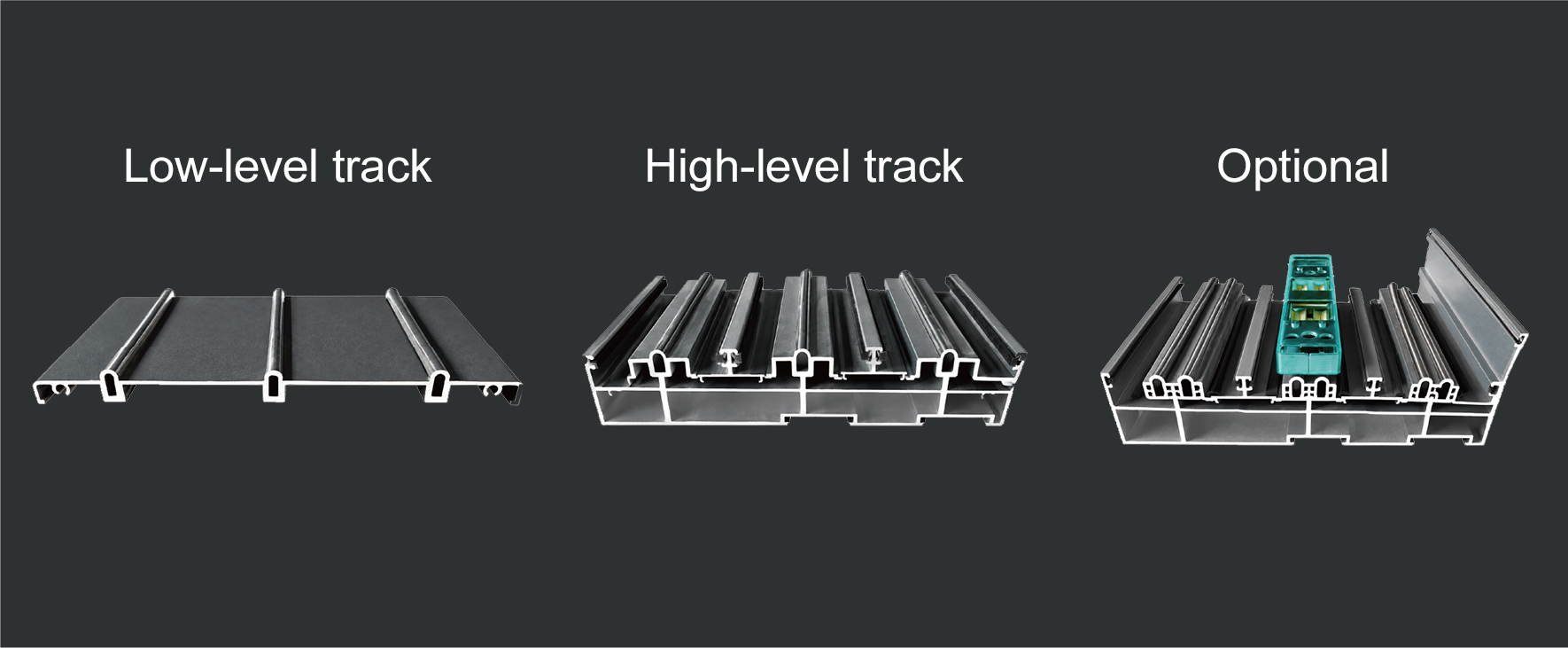

Low-level / High-level / Optional track

The lower tracks are all made of stainless steel.

Optional configurations include overhead tracks (two tracks), low tracks, high tracks, water‑blocking tracks, and brass tracks

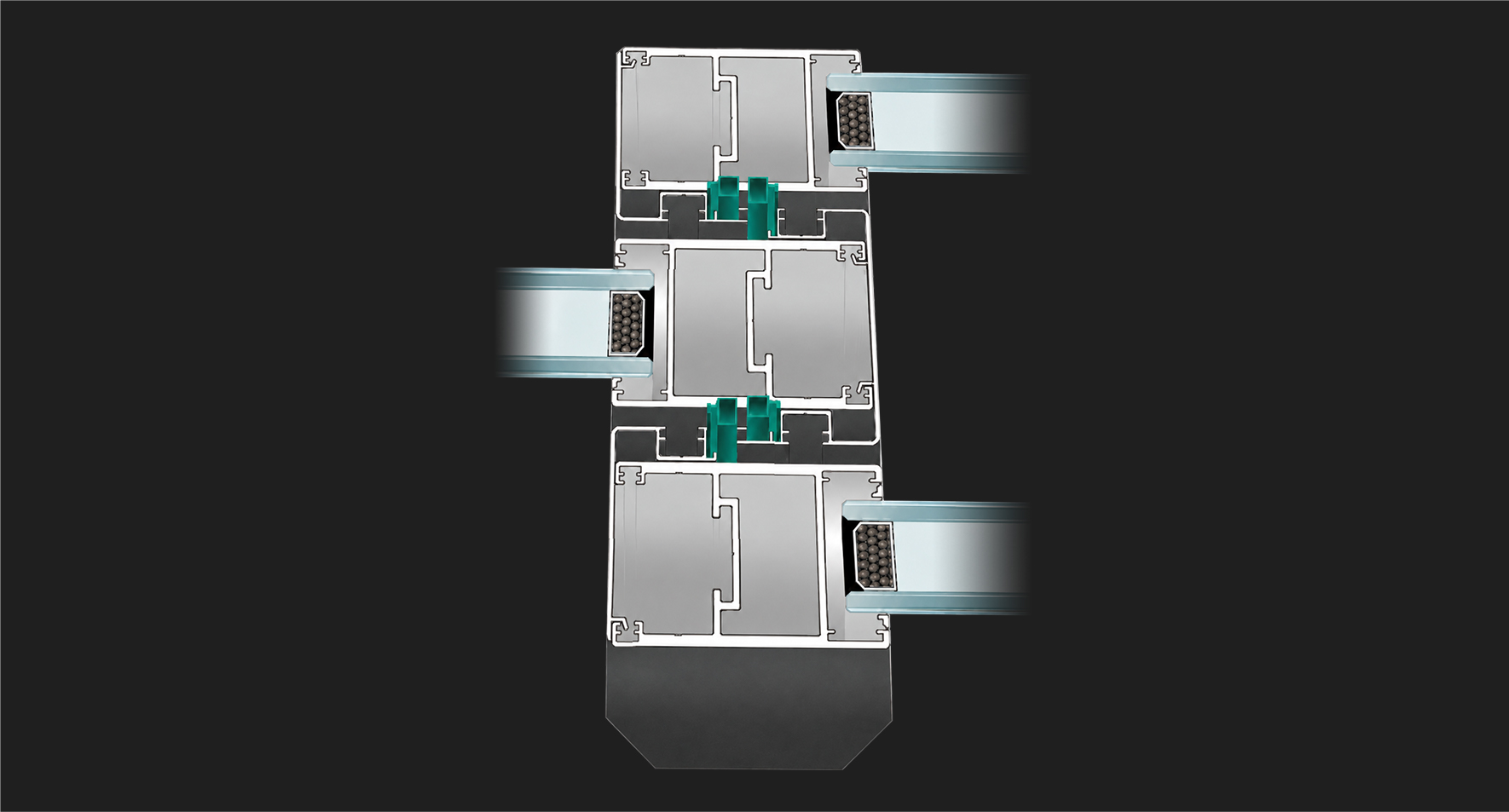

3‑Layer Impact Protection Design

3‑Layer Impact Protection Design

Hook‑type rubber seals, impact‑resistant rubber, and door panel rubber seals—a triple‑layer impact‑resistant design

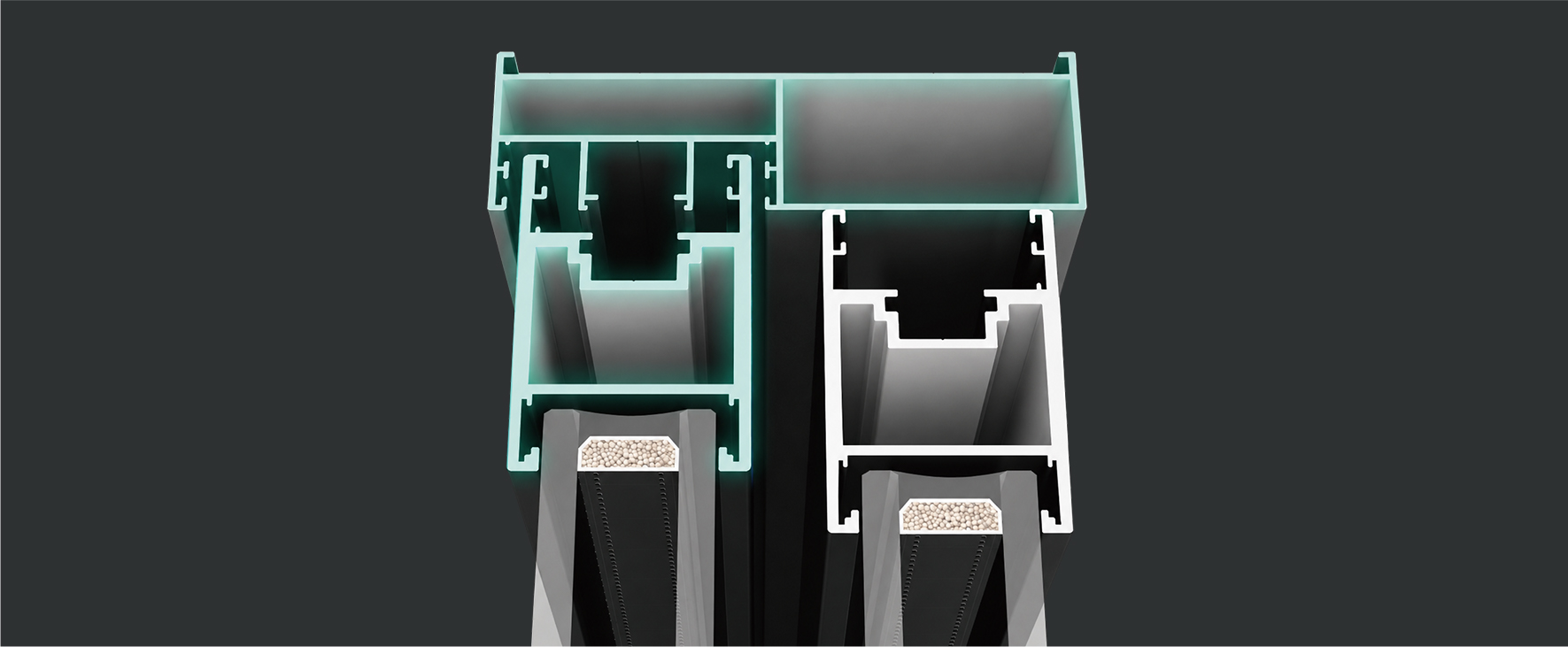

Embedded Frame‑Enclosed Sash Structure

Embedded Frame‑Enclosed Sash Structure
Enhanced Sealing, Stability, and Safety

The embedded frame‑and‑sash design, in which the movable sash is embedded within the frame, enhances the seal between the frame and sash, prevents rainwater from entering directly, and contributes to the overall stability and safety of the structure.

1.Material & Procurement
01 / 9

Raw Material Incoming Inspection

Verify the specifications and certificates of conformity of aluminum alloy profiles, hardware, sealing strips, and glass; Return of defective materials.

01

Raw Material Incoming Inspection

2.Spray Coating
02 / 9

Surface Anti-Corrosion Coating

Complete pretreatment (degreasing, water rinse, acid washing, phosphating, and pure water rinse); electrostatic outdoor powder coating, cured at 180–200°C; coating thickness: 60–80 μm; testing for color difference, adhesion, UV resistance, and salt spray resistance

02

Surface Anti-Corrosion Coating

3.Cutting
03 / 9

Precision CNC Machining

CNC double-head saw cutting with a length tolerance of ±0.5 mm and an angle tolerance of ±0.1°, followed by deburring of the cut edges. Milling of tenons, hardware holes, drainage holes, and glue injection holes; removal of all aluminum shavings.

03

Precision CNC Machining

4.Assembly
04 / 9

Frame Fan Group Corner Forming

Corner code+corner glue, pressure molding with corner machine, and waiting for the glue to solidify to ensure strength and sealing.

04

Frame Fan Group Corner Forming

5.Gasket Installation
05 / 9

Pre Installation of Seals

Press the EPDM EPDM strip into the groove, apply glue to the interface, and ensure that the strip is continuous without any breaks.

05

Pre Installation of Seals

6.Motor Installation
06 / 9

Hardware Assembly and Debugging

Install hinges, handles, and transmission lock box locking points; Debug the smoothness of opening and the sealing of locking.

06

Hardware Assembly and Debugging

7.boli
07 / 9

Glass Assembly

Place glass cushion blocks, install tempered/insulated glass, apply neutral silicone adhesive, install pressure strips, and ensure that the glass is not loose.

07

Glass Assembly

export
08 / 9

Finished Product Inspection

Appearance, size, and opening/closing performance; Splash water to conduct a water tightness test, and rework if it fails.

08

Finished Product Inspection

9.Packing
09 / 9

Clean Packaging and Storage

Clean stains and label; Pearl cotton+corner protector packaging for storage.

09

Clean Packaging and Storage


Sunroom Product Inspection Standards

Comprehensive inspection to ensure product quality, safety, and performance.

  • 01
    76x76

     Appearance Quality

    The profile has no deep scratches, dents, color differences, or coating peeling; Glass without scratches or broken edges, hollow without fogging or water ingress; The adhesive seam is continuous and uniform; The hardware is free from rust and burrs.

  • 02
    76x76

    Dimensional and Positional Tolerances

    ≤ 2000mm, dimensional deviation ± 1.0mm; > 2000mm, deviation ± 1.5mm; diagonal deviation ≤ 1.5mm; flatness ≤ 0.5mm/m; Frame fan overlap ± 1.0mm.

  • 03
    76x76

    Opening and Closing Performance

    Smooth opening and closing without any jamming or abnormal noise, opening and closing force ≤ 50N; fully engaged locking point; Repeatedly open and close 50 times without any looseness or jamming.

  • 04
    76x76

    Assembly Quality

    The adhesive strip is firmly bonded without any breaks; The glass cushion block is in place; The pressure strip is tightly spliced; The drainage hole is unobstructed.

  • 05
    76x76

    Water Tightness Sampling

    Continuously pour water for 5 minutes, and there should be no leakage or water seepage indoors.

FAQ

We've grouped the guestions by categories to make it easier for you to find the answers you're looking forIf you don't see an answer to your question, please contact us

  • Sliding doors are a type of movable door that opens by sliding horizontally from side to side along a track and roller system. They feature a high-strength aluminum alloy frame combined with eco-friendly door panels and tempered glass, and are fully prefabricated and assembled as a single unit in the factory. These doors require no additional space for opening inward or outward. They open and close smoothly and quietly, feature a sturdy structure and excellent sealing performance, and offer multiple benefits such as natural light, space partitioning, wind and dust protection, as well as thermal and sound insulation. With their simple and versatile designs, they are a mainstream door type with exceptional versatility for residential, commercial, and prefabricated construction applications.

  • Sliding doors come in standardized, conventional sizes. Mainstream styles—such as dual-track, triple-track, and ultra-narrow-frame designs—are compatible with standard door openings in both residential and commercial settings. They include common configurations such as two-panel, three-panel, and four-panel interlocking systems, featuring uniform dimensions, smooth operation, and high versatility. The products support comprehensive customization for non-standard, personalized designs. Based on on-site door opening dimensions, interior design styles, and natural lighting requirements, customers can customize widths, heights, and frame styles. Special configurations—such as fixed-glass and sliding combinations, extra-wide linked doors, and floor-to-ceiling sliding partition doors—are available to meet the unique door opening and spatial design needs of residential, commercial, and cultural tourism projects.

  • Sliding doors support multi-dimensional material upgrades and optional features, making them suitable for various interior design levels and usage scenarios. Profile options include thickened aluminum alloy, thermal-break aluminum profiles, and ultra-narrow luxury profiles; door panel options include tempered clear glass, frosted glass, Longhong glass, and solid insulated door panels; Hardware options include silent, cushioned rollers, anti-swing tracks, and interlocking drive components. Functional configurations can be enhanced with damping and anti-collision features, automatic door-closing mechanisms, smart sensor-activated opening, fingerprint access control, soundproof and insulated laminates, and dust-proof and waterproof tracks; exterior finishes can be customized with fluorocarbon coating, matte sandblasted finishes, wood-grain transfer printing, and solid-color baked enamel, comprehensively catering to both light-luxury residential interiors and high-end commercial settings.

  • The new sliding doors with upgraded seals offer excellent soundproofing, thermal insulation, and energy-saving performance, meeting modern building energy efficiency standards. When closed, the door panels fit tightly together. Combined with multiple sealing strips, insulated double-pane glass, and an internal thermal barrier, they effectively block out outdoor traffic noise, voices, and ambient noise, significantly enhancing indoor quietness. At the same time, they effectively block the convection of hot and cold air, preventing high outdoor temperatures from entering in the summer and trapping indoor heat in the winter. This reduces energy consumption for air conditioning and heating, prevents outdoor moisture from seeping in, and eliminates indoor condensation and mold issues, thereby effectively enhancing the comfort and energy efficiency of residential, office, and commercial spaces.

  • Designed for all-weather use across a variety of settings, this sliding door offers excellent wind and water resistance as well as outdoor weather resistance, making it suitable for long-term use in open-air and semi-open-air environments such as balconies, patios, retail spaces, and outdoor prefabricated buildings. The door features a track-embedded sealing structure, combined with multiple weather-resistant sealing strips, a water-blocking mechanism, and a scientific drainage design. When closed, it fits tightly to effectively prevent rainwater from seeping in and wind and sand from blowing in. The thickened, reinforced aluminum profiles offer outstanding wind resistance, reliably withstanding complex weather conditions such as strong winds, heavy rain, intense sunlight, frost, and humid rainy seasons. The profiles are inherently rust-proof, corrosion-resistant, and oxidation-resistant, ensuring they will not fade, warp, or rust even after long-term outdoor use, and demonstrating exceptional weather resistance and stability.

  • The materials used in these sliding doors are high-quality and stable, offering resistance to aging, corrosion, wear, and exposure to intense sunlight. Under normal residential, commercial, and outdoor conditions, the overall service life can exceed 15 years. The product features a modular assembly design that allows for the independent repair or replacement of individual components. Should issues arise in the future—such as worn-out rollers, jammed tracks due to dirt buildup, aged weatherstripping, broken glass, or faulty hardware—there is no need to replace the entire door. Instead, the corresponding parts can be replaced individually, making repairs simple, convenient, and cost-effective, and ensuring outstanding value over the long term.

  • The daily maintenance of sliding doors is simple and convenient, requiring no specialized technical skills for routine upkeep. Regularly clean dust, dirt, and debris from the tracks and grooves to prevent foreign objects from accumulating and causing the door to jam or the rollers to wear out; periodically wipe down the door frame and glass panels, check the condition of the weatherstripping, and replace any that are aged or cracked promptly; Routinely inspect hardware such as rollers, buffer components, and handles; tighten any loose parts immediately, and perform simple cleaning and maintenance if the door becomes stuck during operation; when using the door, avoid forceful pushing or pulling, prevent heavy objects from striking the door panel, and do not force the door to open or close when misaligned. Following these practices will ensure the sliding door’s waterproof, dustproof, soundproof, and thermal insulation performance over the long term, effectively extending the product’s service life.

  • Sliding doors & windows are fitted with stable antislip slide rails and safety locking devices. Glass guardrails are supported by solid aluminumalloy frames to ensure safety for public areas and guest rooms.
