Skylight System
SKYLIGHT SYSTEM

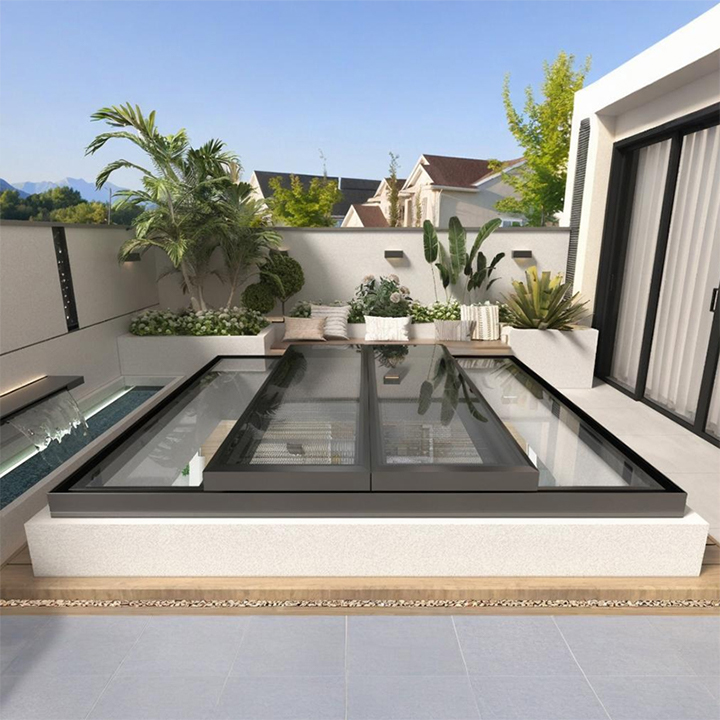

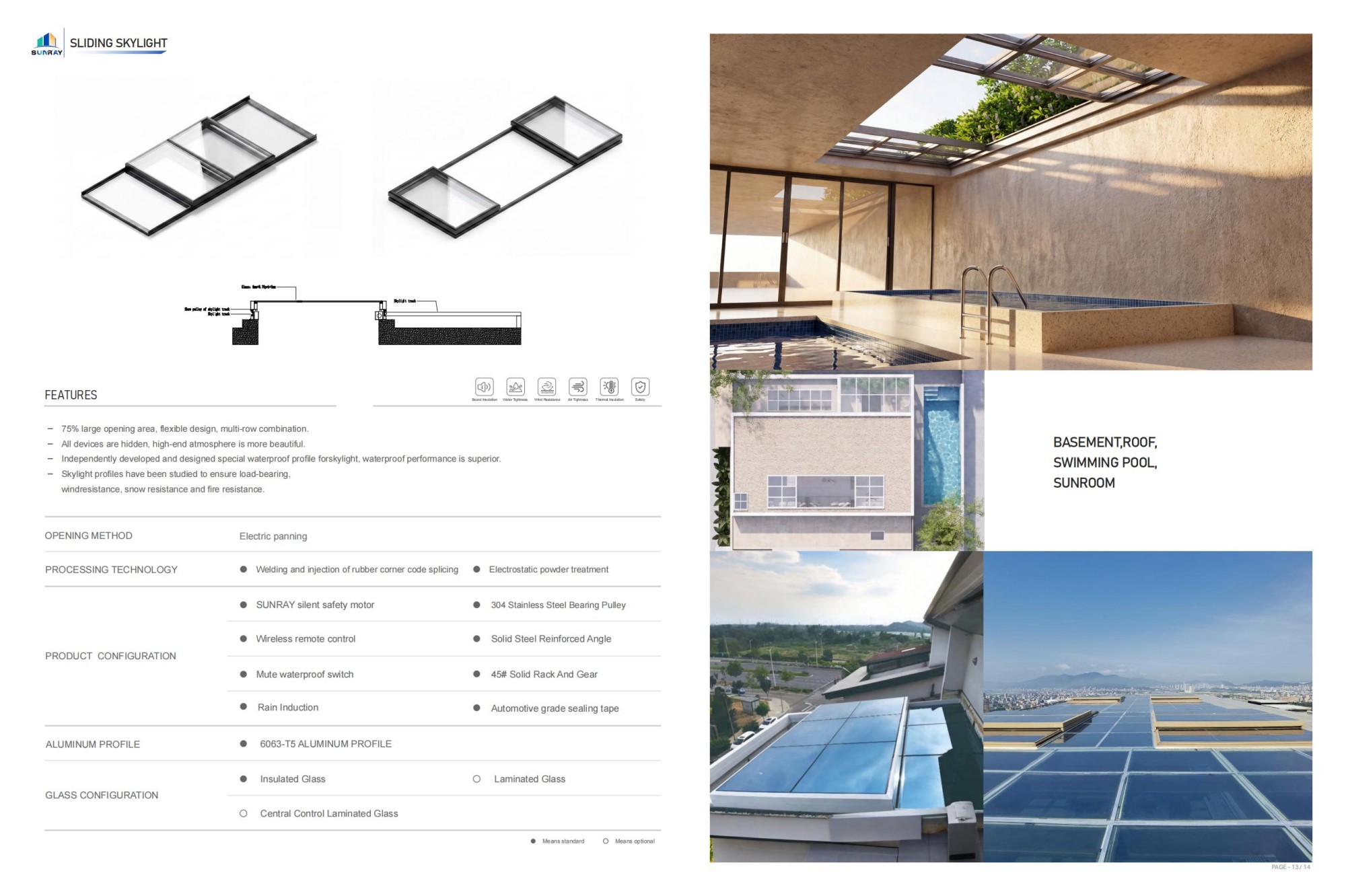

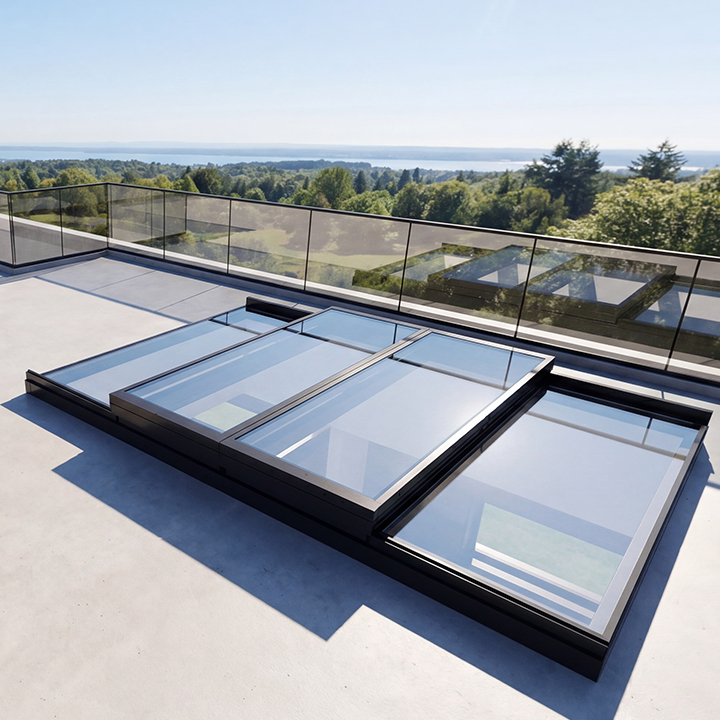

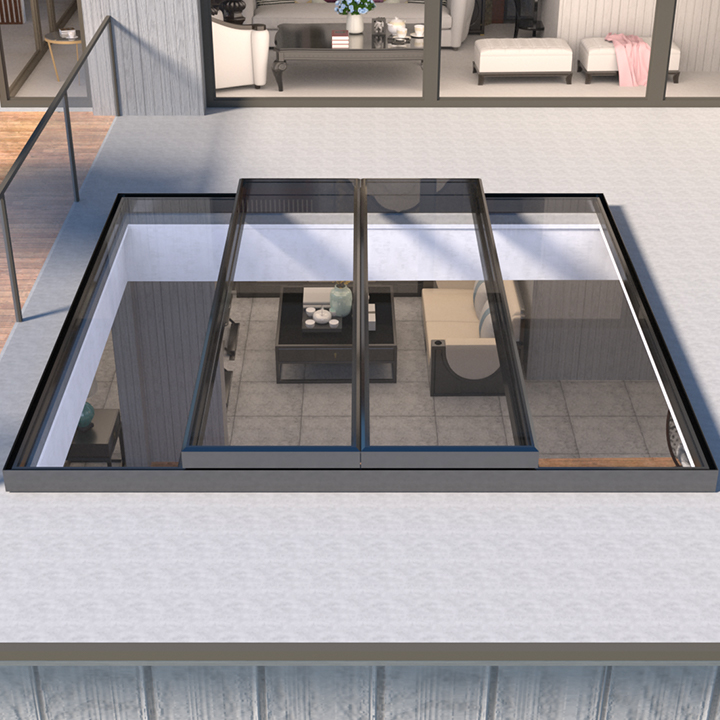

Aluminum sliding skylight with sturdy weather-resistant frame. Horizontal sliding panel achieves large opening and great ventilation. Double tempered insulated glass offers sound and heat insulation. Premium sealing strips ensure reliable roof waterproofing. Manual or motorized options with quiet smooth movement. Suitable for sunroom roof, basement light well and attic. Custom size & color, export grade quality.
Specify dimensions, material, opening method, and glass specifications; provide a separate BOM for individual components.

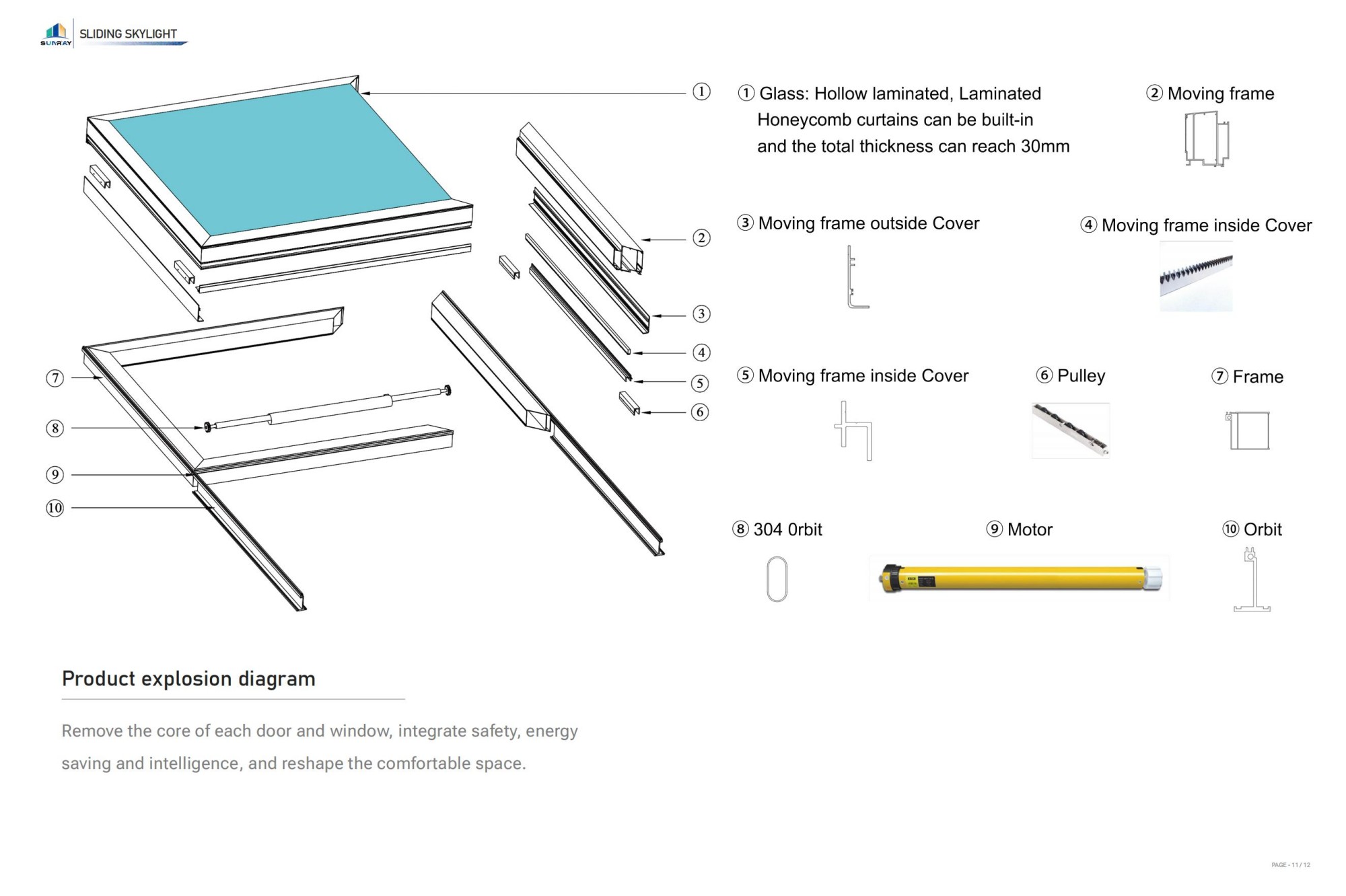

Design Drawings and Material Breakdown
Collect profiles, glass, hardware motors, and sealing strips according to the list.
Material Calculation, Procurement and Material Requisition
Cutting boards, sawing machines, and laser cutting to obtain raw parts.
Scheduling and Cutting Materials
Frame welding, control welding parameters to avoid virtual welding, porosity, and cracks.
Welding
Polish and clean welding slag and oxide skin on welds, burrs, and sharp edges.
Polish
Pre processing of workpieces; Spray outdoor coatings and cure; Check the appearance and adhesion of the coating.
Spray Painting and Coloring

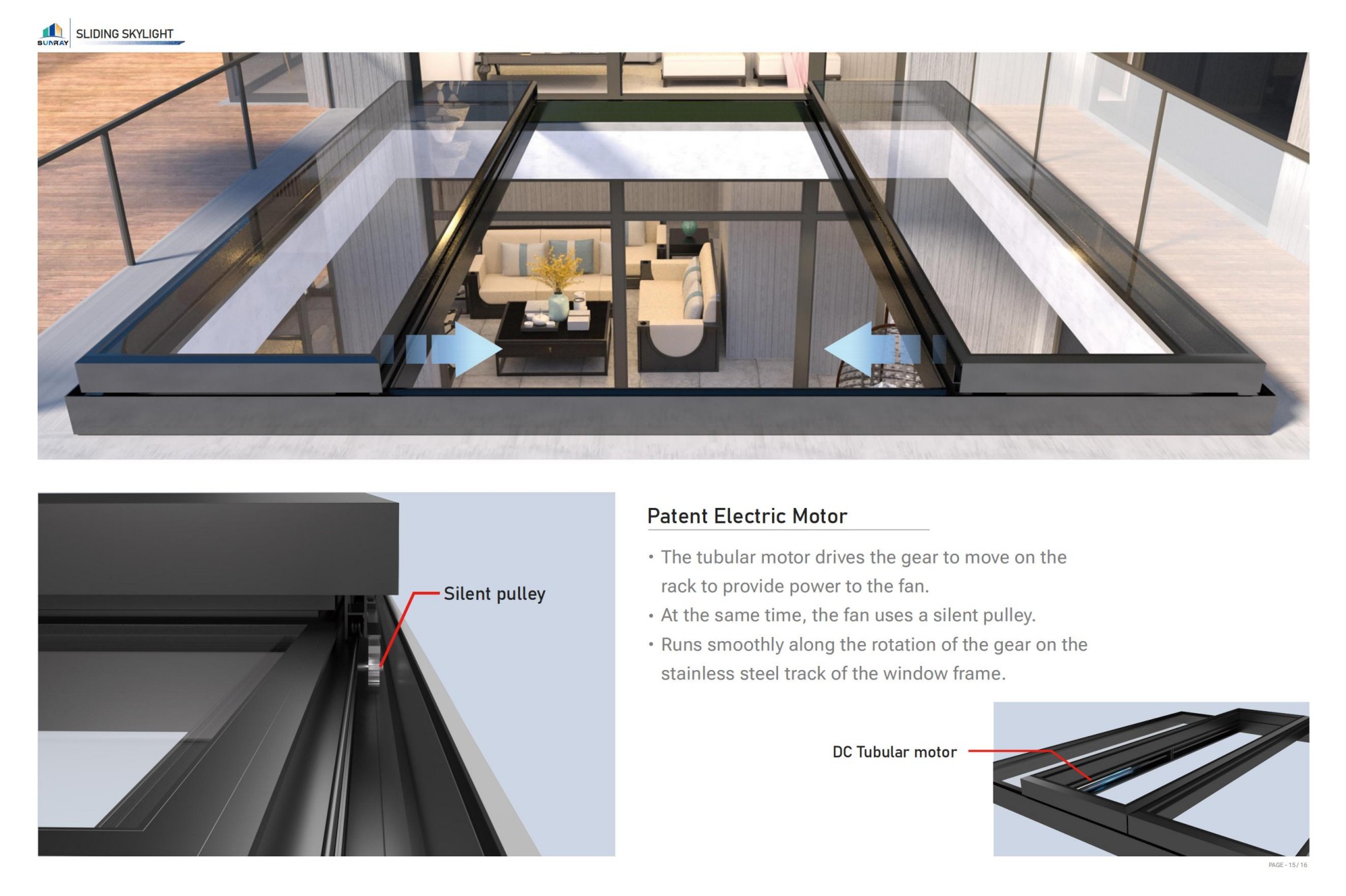

Assemble profiles, glass, rubber strips, and hardware; Electric models are equipped with motors, sensors, and control wires.
Sunroof Assembly
Manually adjust the opening and closing limit; Electric debugging remote control, limit, rainproof induction, overload protection
Complete Machine Function Debugging
Necessary modular disassembly; Pearl cotton wooden crate with wooden frame for protection, packed and shipped.
Dismantling, Protective Packaging, And Shipping
Comprehensive inspection to ensure product quality, safety, and performance.
The model, size, glass hardware, and contract drawings are consistent; The profile glass has no scratches, paint peeling, or cracks.
Even gaps without deviation; Fit the roof slope; The fixed parts are complete, firm, and without shaking.
Tempered/insulated glass with 3C coating; no scratches or edge bursts; Hollow without fogging and water ingress; The rubber strip is continuously and completely adhered.
Manual: The handle, hinge, and wind support are complete; Smooth opening and closing without any jamming or abnormal noise; The limit can be stably positioned; The locking point is in place.

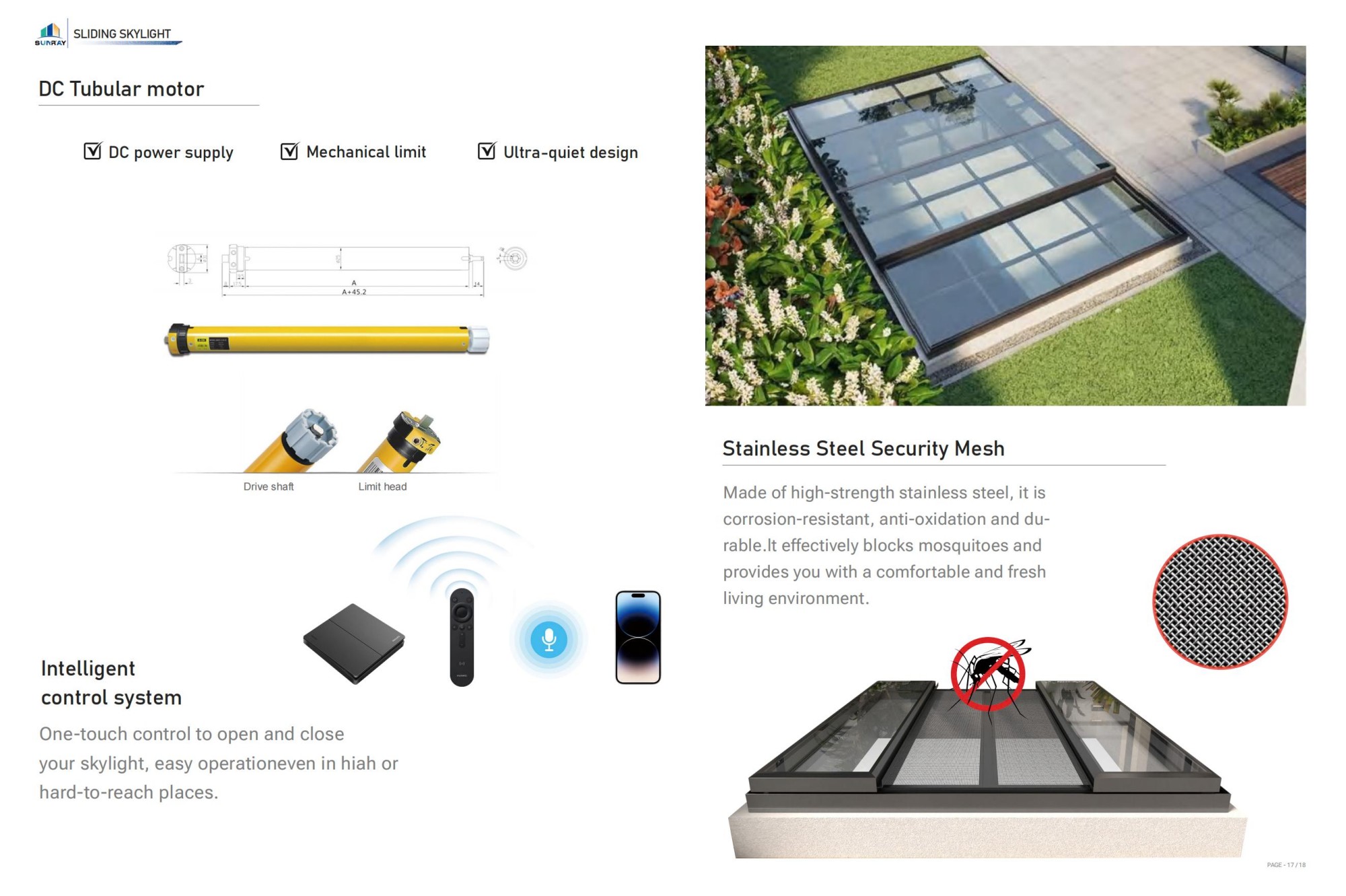

Electric: The motor runs smoothly without any abnormal noise or vibration; Accurate remote start stop limit; Effective power-off and overload protection; Rain proof sensing function is normal; Line insulation and waterproofing.
Roof edge trimming and smooth water lap joint; The adhesive seam is full and continuous without bubbles; The drainage holes of the drainage trough are unobstructed and unobstructed.
No obvious air leakage after closing; Compliant glass profile insulation configuration; Screw holes are sealed, and there are no sharp burrs on the edges and corners.
Safety glass; Reliable load-bearing capacity of hardware; Complete anti fall devices; Insulation and leakage prevention of electric power lines.
If there is shaking or looseness, opening and closing failure, water seepage, fogging and cracking of glass, waterproof failure, or damage to the profile, it will be directly judged as rework.
In order to better meet your needs, we support color customization forlarge ordersensuring that each product perfectly reflects your brandstyle..
Champagne Gold
+$45 USD per square meter
In order to better meet your needs, we support color customization forlarge ordersensuring that each product perfectly reflects your brandstyle..
We've grouped the guestions by categories to make it easier for you to find the answers you're looking forIf you don't see an answer to your question, please contact us
Featuring a horizontal sliding opening mechanism, this design occupies no interior or exterior space when opened, completely eliminating the spatial constraints of traditional windows. Combining natural light and ventilation in one, it brings in soft, abundant natural light to enhance the sense of openness indoors; at the same time, it creates efficient air circulation to keep the indoor air clean and fresh at all times, making it the ideal skylight choice that balances functionality and
space utilization. It is widely suitable for outdoor leisure areas such as villa sunrooms and terrace roofs, creating airy and comfortable spaces; it can also be used in basement light wells to effectively improve lighting and ventilation in underground spaces, eliminating darkness and dampness; furthermore, it is ideal for installation in key indoor areas such as home offices and living rooms, bringing natural light into the home to enhance the overall comfort and aesthetic appeal of the space, while meeting the lighting and ventilation needs of various settings.
Standard width per panel: 600–2000 mm; maximum length on the motor side: up to 6000 mm;
1. Leaves and dust have accumulated in the extruded drainage channels, causing the drainage outlets to become clogged;
2. The EPDM weatherstripping has deteriorated, resulting in uneven compression gaps;
3. The waterproof sealant at the junction between the window frame and the roof has cracked.
Solution: Clear the drainage channels, replace the weatherstripping, and redo the waterproofing at the roof junction.

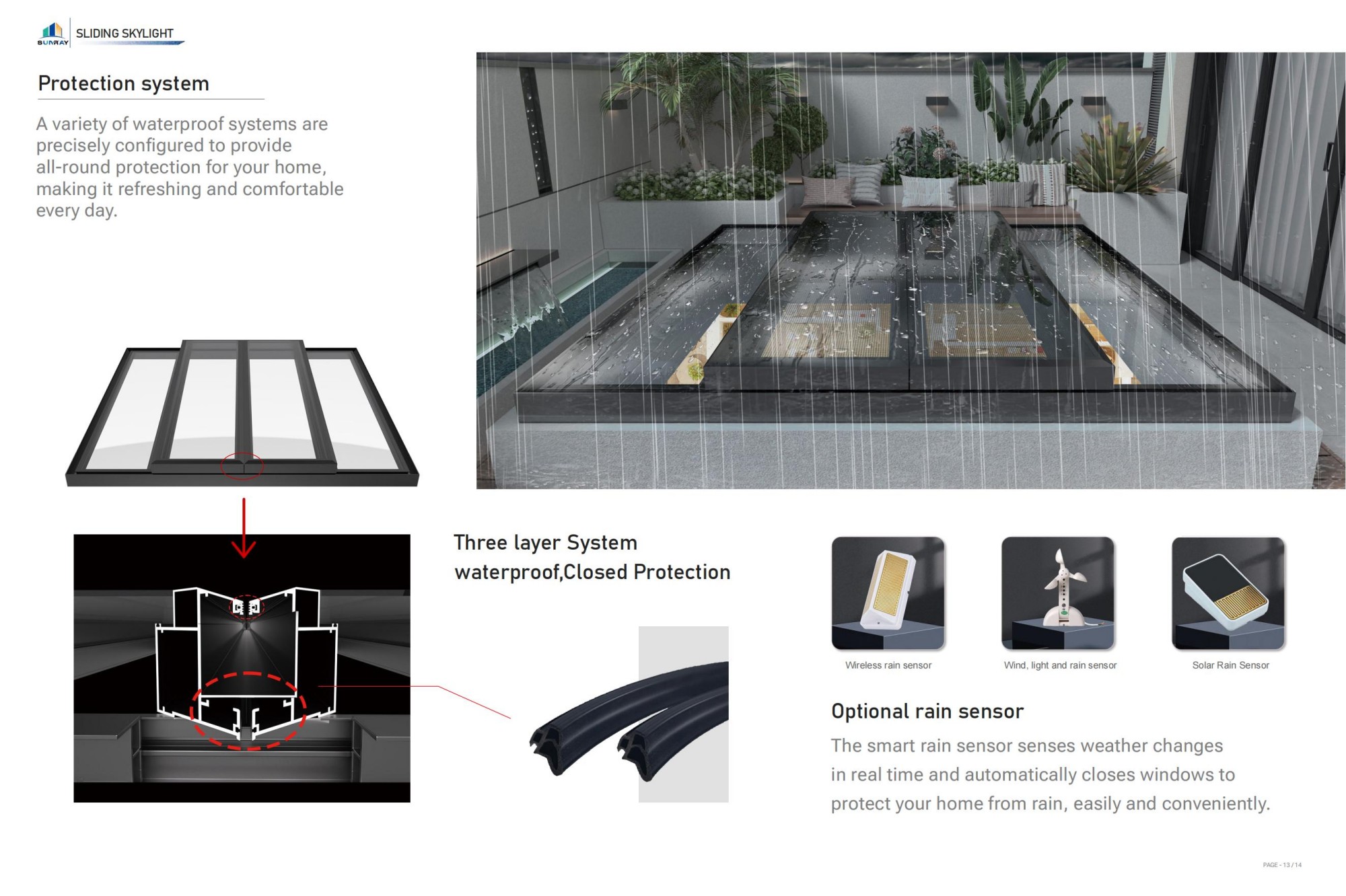

When connected to an external rain and wind sensor, the system automatically shuts off when a rain signal is detected; temperature sensors and smoke detectors can also be installed to trigger the system’s activation in conjunction with the factory’s fire suppression and smoke exhaust systems.
Under normal conditions, the rollers and drive components can withstand more than 40,000 opening and closing cycles; the motor is covered by a 2-year warranty, and the aluminum alloy frame is covered by a 10-year warranty.
1. Clean debris from the tracks and drainage channels every six months;
2. Apply lubricant to the roller tracks;
3. Check the seals for signs of aging or cracking;
4. Periodically tighten the screws securing the motor and rollers.
