Sliding Window

This aluminum sliding window uses high-strength aluminum profiles, weatherproof, rust resistant and long service life. Horizontal sliding mechanism works smoothly without occupying space. Double insulated tempered glass delivers good sound and thermal insulation. Multi sealing strips for wind, dust and water resistance. Various surface finishes and glass options available, fully customizable. Suitable for houses, villas and terraces with export quality.

SUNRAY Casement Window Banner

Product Features

NO. FEATURES
1 Constructed from 2.0mm-thick aerospace-grade 6060-T66 titanium-magnesium primary aluminum profiles, paired with PA66GF25 nylon thermal break strips, for typhoon resistance and high compressive strength.
2 Powder-coated with AkzoNobel (Netherlands) paint, featuring UV anti-counterfeiting markings, and offering weather resistance for up to 15 years.
3 Comes standard with Quartz Gray-specific locks, tested for 30,000 opening/closing cycles and 1,000 hours of salt spray testing, ensuring corrosion resistance and durability.
4 The bottom track features six guide rails, providing high load-bearing capacity and ensuring smooth, effortless sliding.
5 Ultra-narrow concealed sash design with a visible face width of 22.5 mm and a recessed frame, offering an expansive view.

Scene Effects

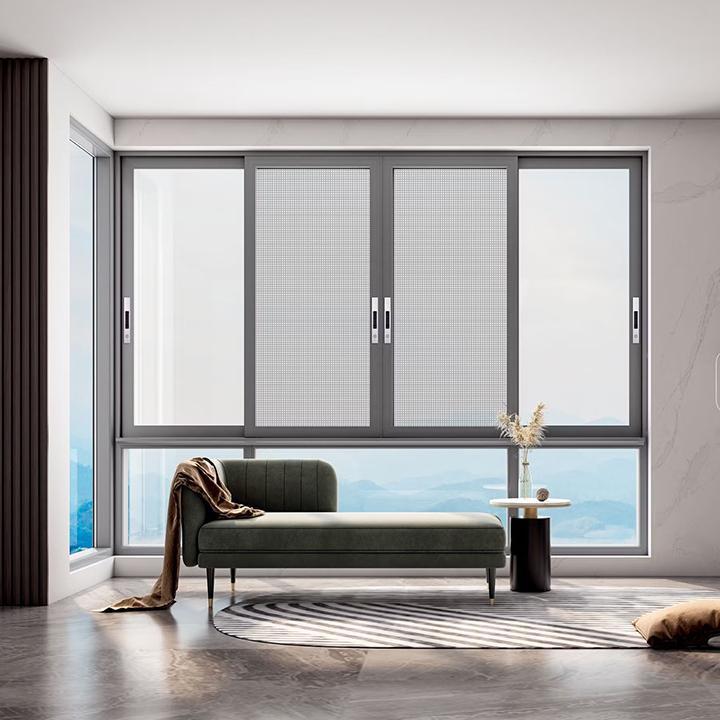

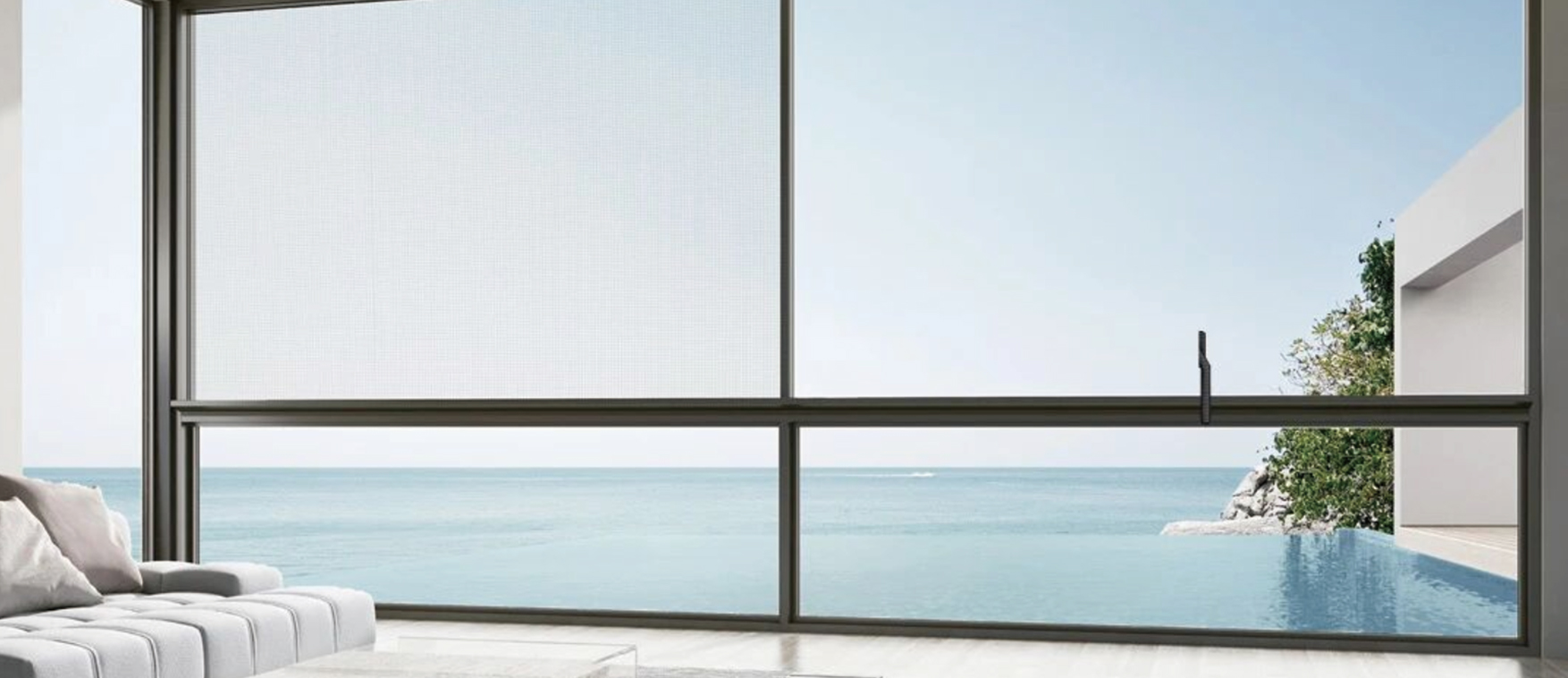

Indoor Scene

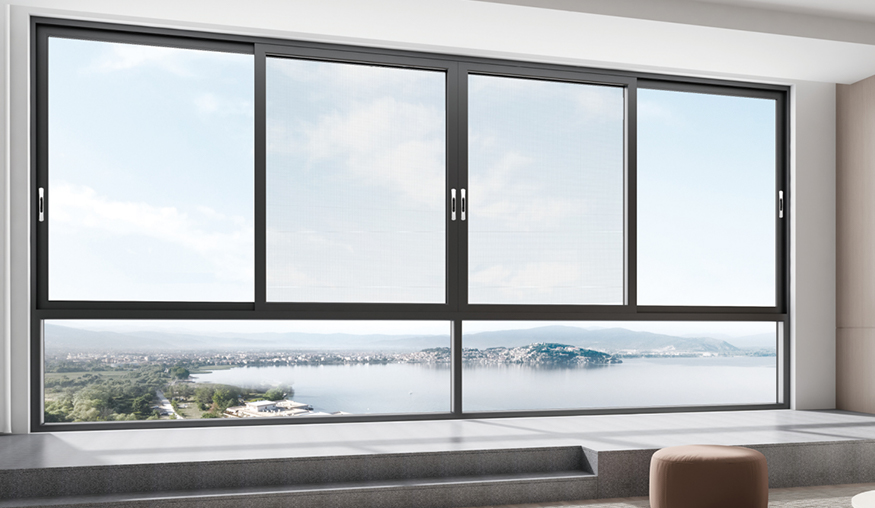

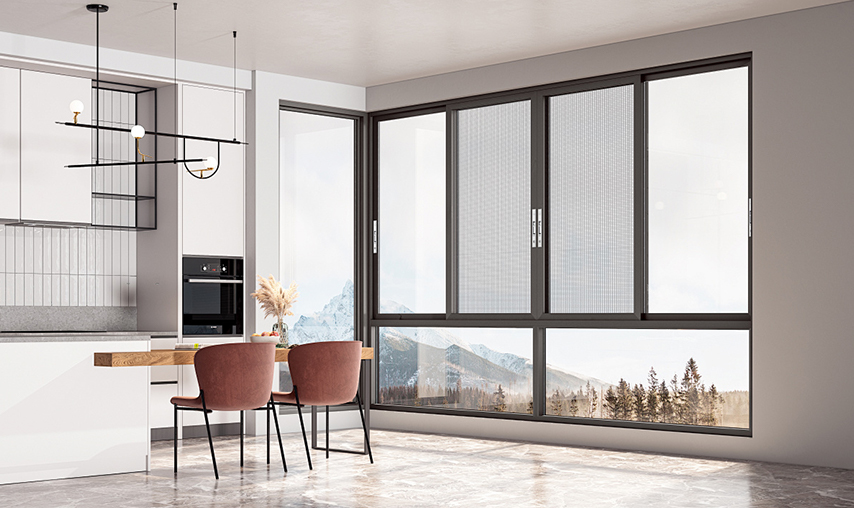

Scene 2 Scene 3

Product Performance

PARAMETER VALUE STANDARD STATUS
Wind Resistance 1600Pa EN 12212 Tested
Water Penetration 500Pa EN 1027 Tested
Air Infiltration ≤0.5 L/s·m² EN 12207 Tested
U-Value (Wall Glass) 1.4 W/m²K EN ISO 10077 Energy
Sound Reduction Rw 30-34dB EN ISO 717-1 Acoustic

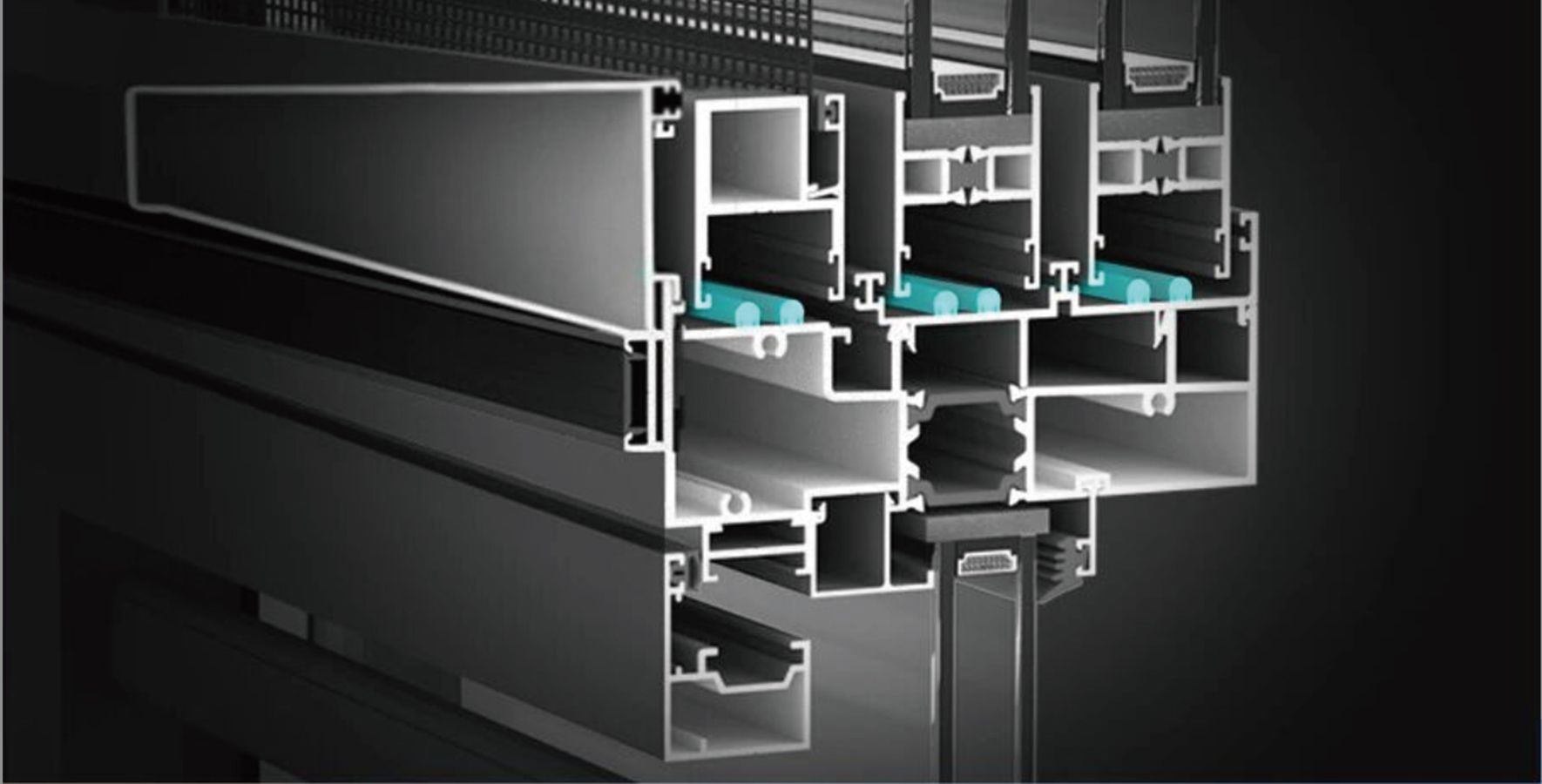

Aluminum Profile Cross Section

6-Track Slide Design

6-track lower rail

Lighter weight, higher load capacity, and smoother, more effortless gliding

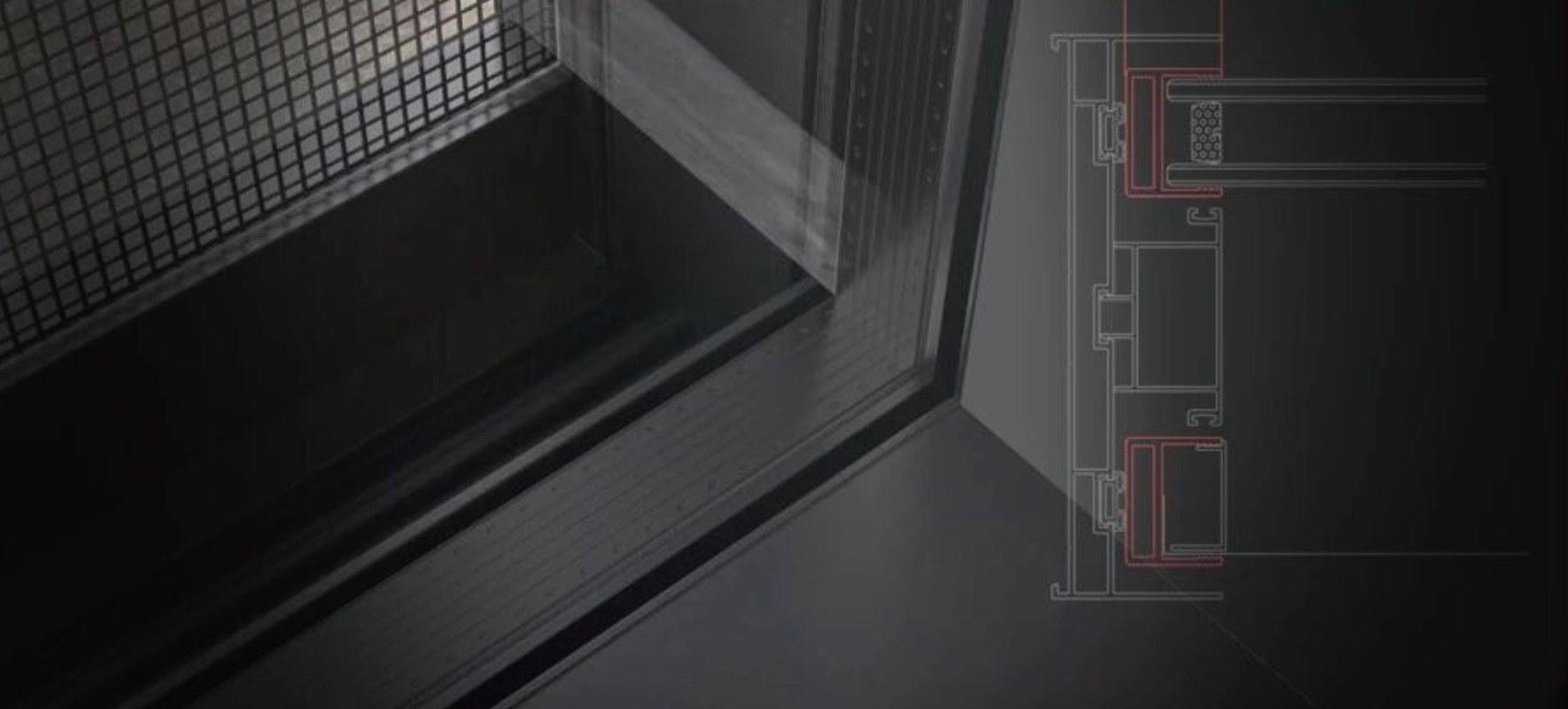

Corner Code Splicing

Ultra-Slim Hidden-Blade Design

Optical Device Viewing Surface: 22.5 mm

Embedded frame; the viewing surface overlaps with the frame, providing an extra-widefield of view

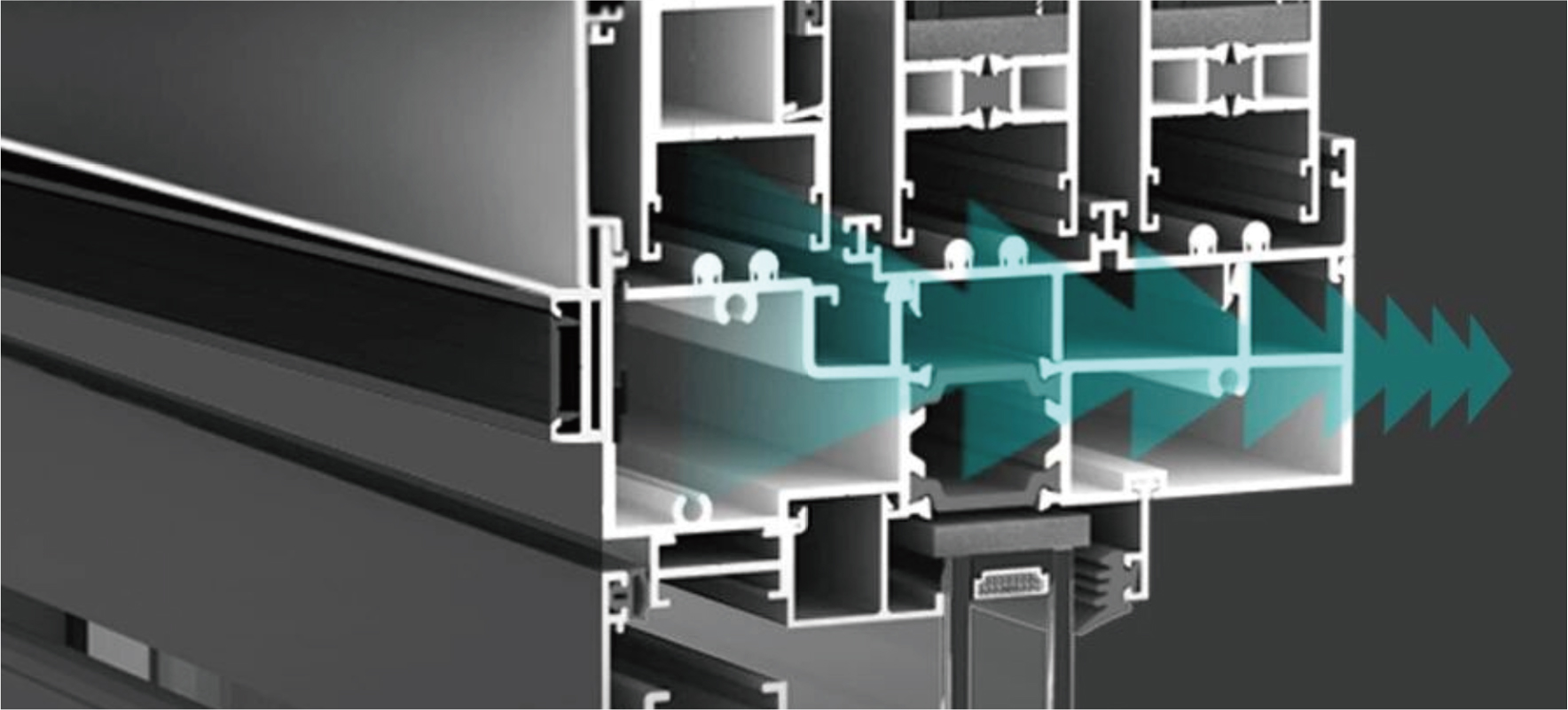

Floor Drain Self Guided Drainage System

Stepped Concealed Drainage

Quick Drainage to Withstand Wind and Rain

Hidden drainage channel design prevents water from flowing back during heavy rain andwind, ensuring faster drainage

Product Materials

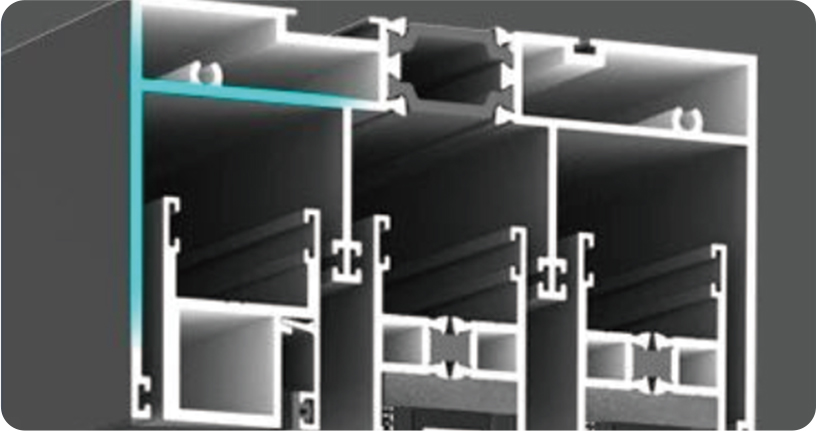

Main Profile

MAIN PROFILE
WALL THICKNESS 2.0MM

primary aluminum Aviation-grade 6060-T6titanium-magnesium

combination Fixed-glass closed bead with angled-straight

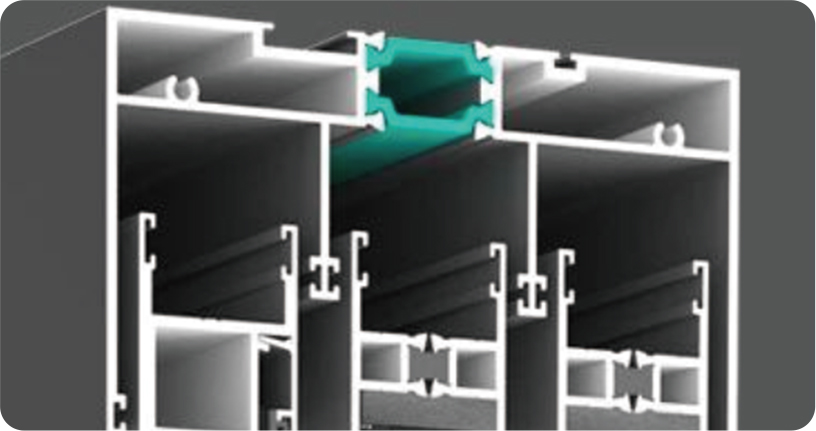

High Load Bearing

Broken Bridge Design

Slim Design Increases Aluminum Surface Area Typhoon-Resistant and High-Strength

Xinyi Insulating Glass

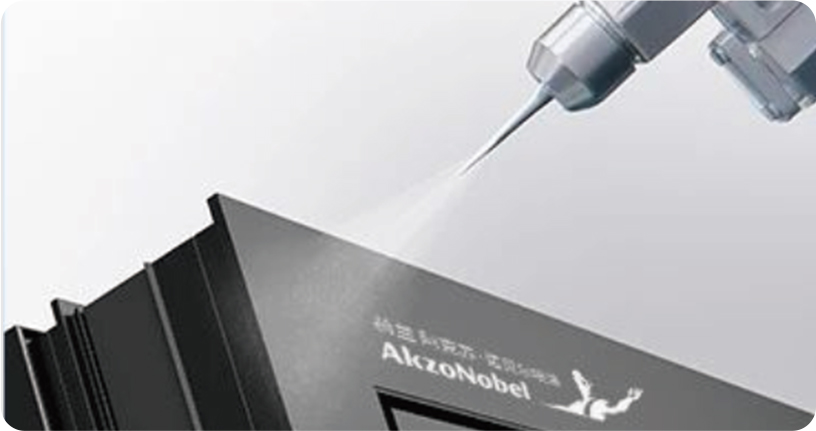

AkzoNobel Spray Coating

UV-Resistant Anti-Counterfeiting

Label—Weather-Resistant for 15 Years World-Class Eco-Friendly Powder Coating

Automotive-Grade Paint Finish

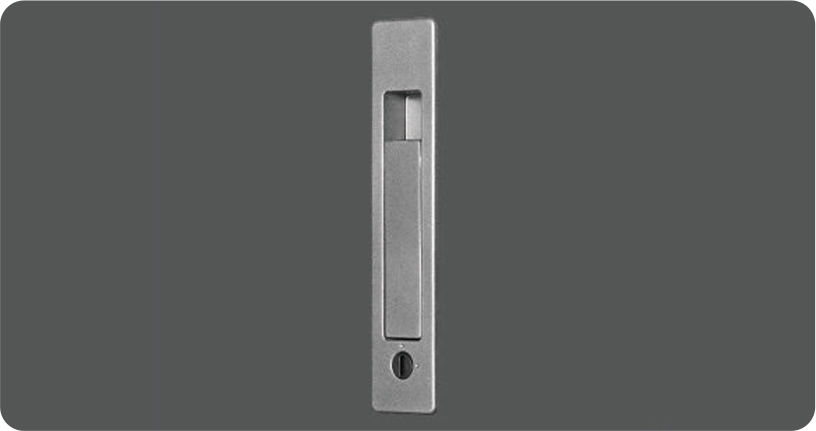

Comes standard with a Quartz Gray-specific lock

30,000 opening and closing fatigue tests

1,000-hour salt spray test

Product Accessories

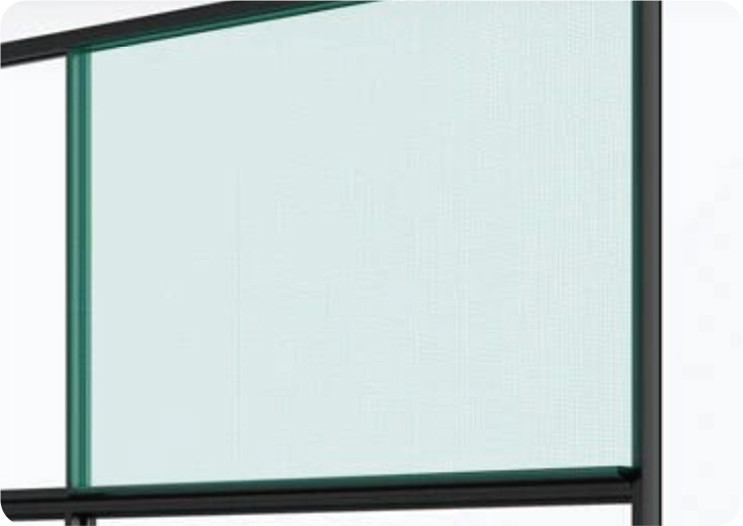

Better Compression Resistance

Attractive and Elegant Easier to Clean

The screen door is installed indoors, so dust doesn't accumulate easily.

It's easier to clean, and you don't have to lean out, making it safer.

Fluorocarbon Grey Finish

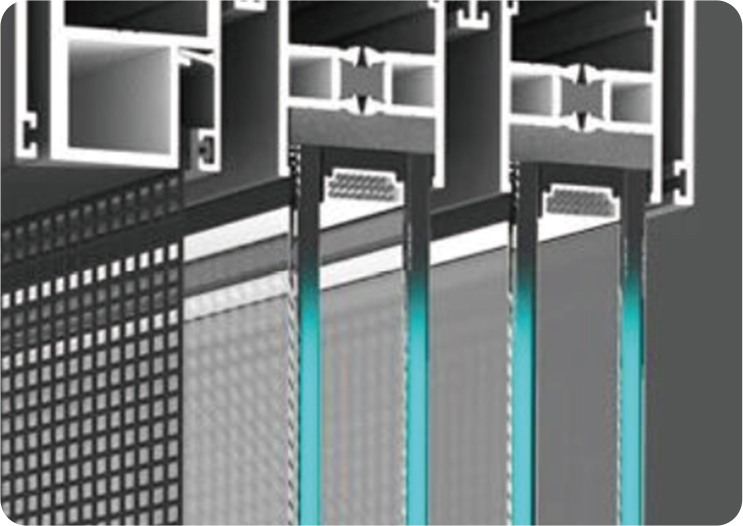

Xinyi Original Automotive Grade Insulated Glass

5MM+15A+5MM

Underwritten by Ping An of China; 3C Mandatory Certification

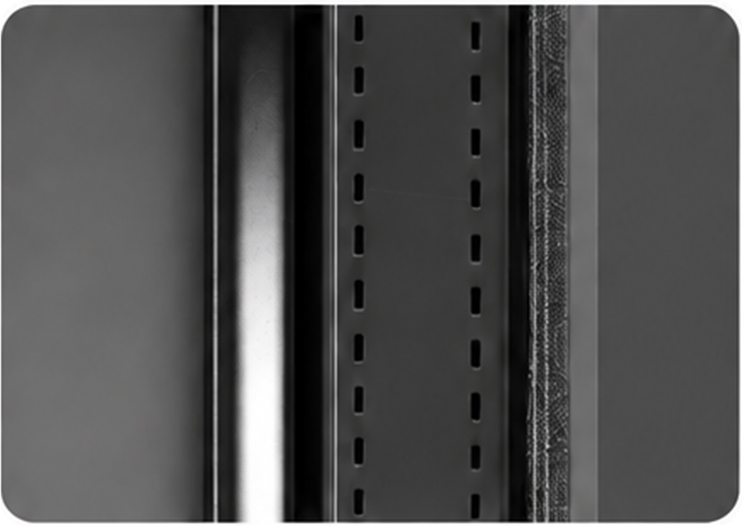

Flush Sash And Frame

FLUOROCARBON GREY FINISH

Premium craftsmanship

A refined, high-end look

FAQ

We've grouped the guestions by categories to make it easier for you to find the answers you're looking forIf you don't see an answer to your question, please contact us

  • Sliding windows are a mainstream energy-efficient window and door product that opens by sliding horizontally from side to side. They rely on a track-and-pulley system to allow the sash to slide open and close in parallel, without requiring any opening space inside or outside the room. The product consists of aluminum alloy profiles, tempered glass, track and roller assemblies, and sealing components. It features a sturdy structure, smooth operation, and excellent sealing performance, while balancing multiple functions such as natural lighting, ventilation, thermal insulation, and protection against wind and dust. It is the most versatile and cost-effective standard window type for residential buildings and commercial projects.

  • Sliding windows feature standardized, conventional panel sizes. The standard two-track and three-track models are compatible with the vast majority of building opening specifications, offering balanced sash proportions, smooth sliding action, and high versatility. The product supports comprehensive customization to non-standard specifications. Based on the length and width of the on-site opening, natural lighting requirements, and interior design style, customers can customize double-sash, multi-sash interlocking, mixed-size panes, and fixed-glass plus sliding combinations. These options accommodate openings of various sizes in residential homes, self-built houses, prefabricated homes, retail spaces, and large-scale commercial projects, meeting personalized customization needs.

  • Sliding windows support multiple tiers of material upgrades and a variety of optional features, making them suitable for different interior design levels and usage scenarios. Profile options include standard aluminum alloy and thermal-break aluminum energy-saving profiles; glass options include single-pane tempered glass, double-pane insulated soundproof glass, safety glass, and Low-E energy-saving glass; functional configurations can be enhanced with high-transparency insect screens, anti-theft locking points, child safety locks, and clothes drying racks; The exterior can be customized with finishes such as fluorocarbon coating, frosted matte, and wood-grain transfer, while upgrades include silent rollers and reinforced waterproof tracks, catering to all residential, commercial, and institutional applications.

  • Sliding windows offer excellent sound insulation and thermal insulation, fully meeting energy-efficiency standards for both residential and commercial use. When closed, the sash fits tightly against the frame. Combined with multiple sealing gaskets and insulated double-pane glass, this design effectively blocks outdoor traffic noise, voices, and ambient noise, reducing noise disturbances indoors. At the same time, it effectively prevents the transfer of hot and cold air, shielding the interior from intense summer heat and locking in indoor warmth during winter. This reduces energy consumption for air conditioning and heating, prevents indoor moisture and condensation, and effectively enhances indoor comfort for living and working while improving the building’s energy efficiency.

  • These sliding windows feature upgraded track seals and a structural waterproofing design, ensuring stable weather resistance in all conditions and making them suitable for long-term outdoor use. When closed, the sash fits snugly against the frame. Combined with multiple sealing gaskets, a dedicated drainage chamber, and an external water-blocking structure, they effectively prevent rainwater infiltration and the ingress of wind and sand; Thickened virgin aluminum profiles, combined with heavy-duty, rust-resistant roller hardware, provide excellent overall wind resistance, capable of withstanding complex weather conditions such as strong winds, heavy rain, intense sunlight, and frost. The product’s profiles are resistant to oxidation, fading, and corrosion; even with long-term outdoor use, they are unlikely to warp, leak, or accumulate dust, demonstrating exceptional weather resistance and stability.

  • The sliding windows are constructed entirely from high-quality, stable materials that are resistant to aging, corrosion, compression, and wear. Under typical residential, outdoor, and commercial conditions, their overall service life can exceed 15 years. The product features a modular assembly design that allows for the independent repair or replacement of individual components. Should issues such as worn pulleys, aged weatherstripping, damaged locks, or broken glass arise in the future, there is no need to replace the entire window; instead, the corresponding parts and panels can be replaced individually. This ensures convenient maintenance, low costs, and outstanding value for money over the long term.

  • The daily maintenance of sliding windows is simple and convenient, requiring no specialized technical skills for routine upkeep. You should regularly clean dust, dirt, and debris from inside the tracks to prevent buildup and jamming, ensuring the window sashes slide smoothly. Clean the glass and profile surfaces regularly, and inspect the condition of the weatherstripping and silicone sealant; replace them promptly if they show signs of aging or cracking. Periodically inspect hardware components such as rollers, latches, and handles; tighten any loose parts and repair any sticking issues immediately. Avoid forcefully pushing or pulling the window sash during daily use to ensure the long-term stability of the window’s waterproofing, dustproofing, soundproofing, and thermal insulation performance, thereby effectively extending the product’s service life.
