SKYLIGHT SYSTEM

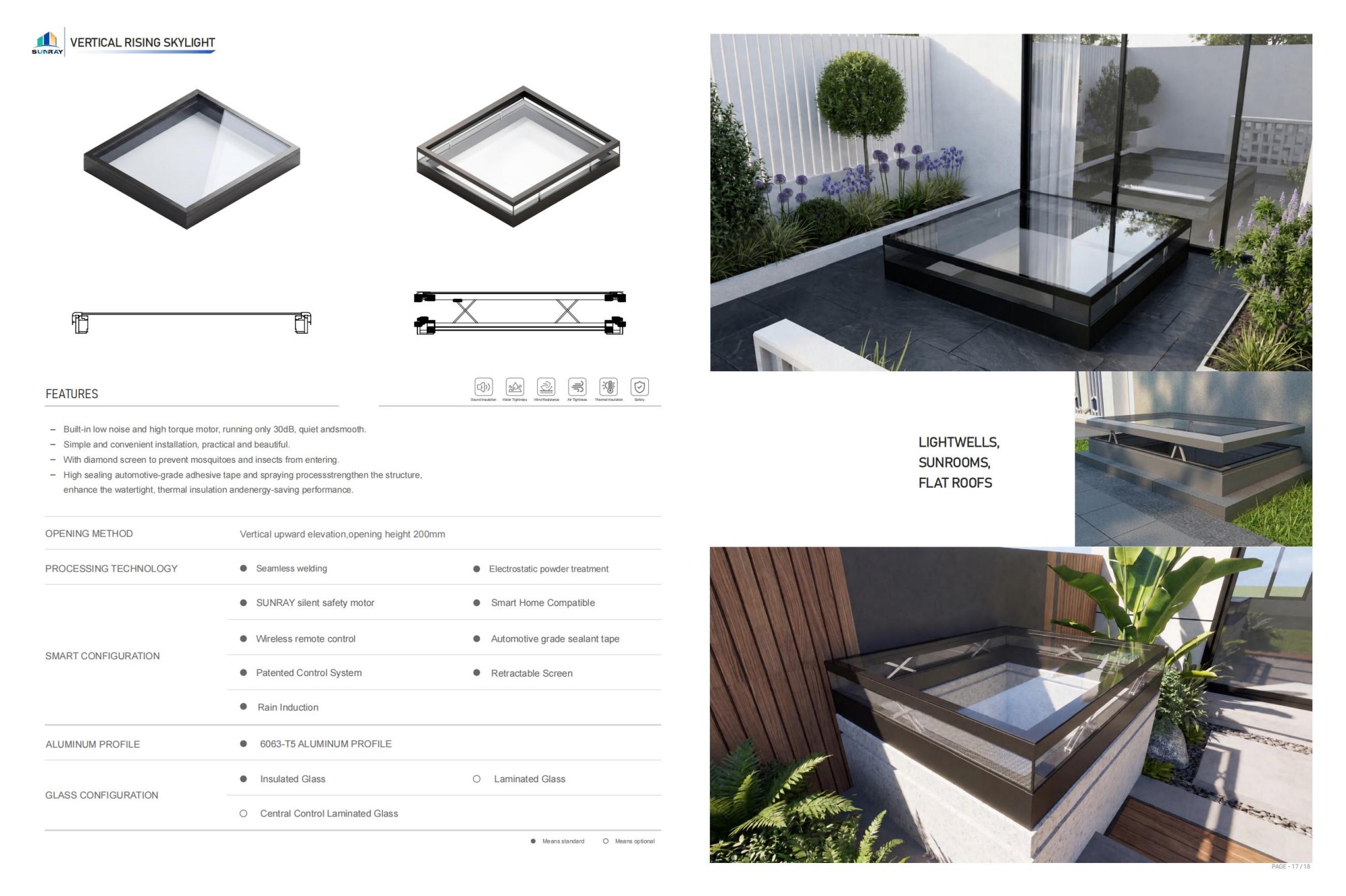

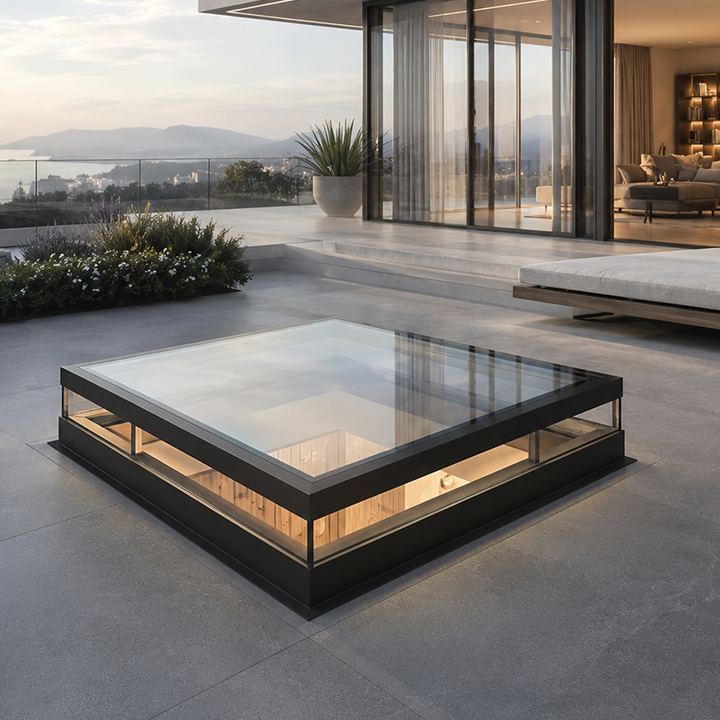

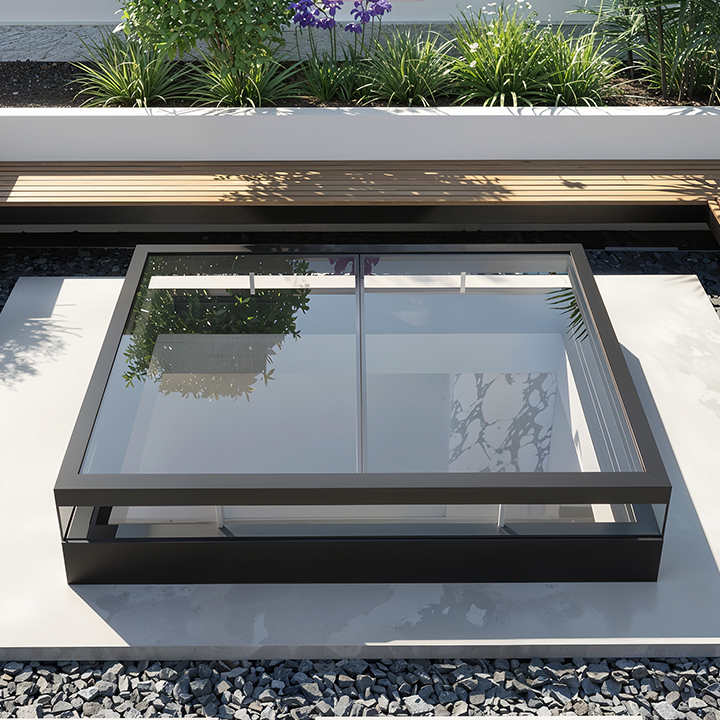

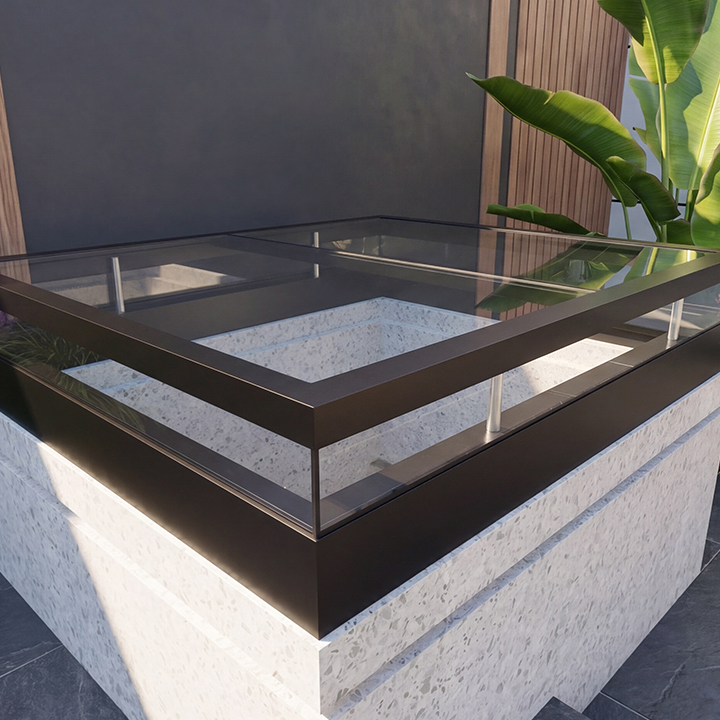

Electric Vertical Rise Skylight with durable weather-resistant aluminum frame. The sash lifts vertically to create huge opening for good ventilation & smoke exhaust. Double tempered insulated glass delivers sound and heat insulation. Multi sealing structure prevents rain leakage. Stable & quiet motor drive, compatible with smart control. Suitable for sunroom roof, attic and light well. Custom size & color, export quality.
Specify dimensions, material, opening method, and glass specifications; provide a separate BOM for individual components.
Design Drawings and Material Breakdown
Collect profiles, glass, hardware motors, and sealing strips according to the list.
Material Calculation, Procurement and Material Requisition
Cutting boards, sawing machines, and laser cutting to obtain raw parts.
Scheduling and Cutting Materials
Frame welding, control welding parameters to avoid virtual welding, porosity, and cracks.
Welding
Polish and clean welding slag and oxide skin on welds, burrs, and sharp edges.
Polish
Pre processing of workpieces; Spray outdoor coatings and cure; Check the appearance and adhesion of the coating.
Spray Painting and Coloring

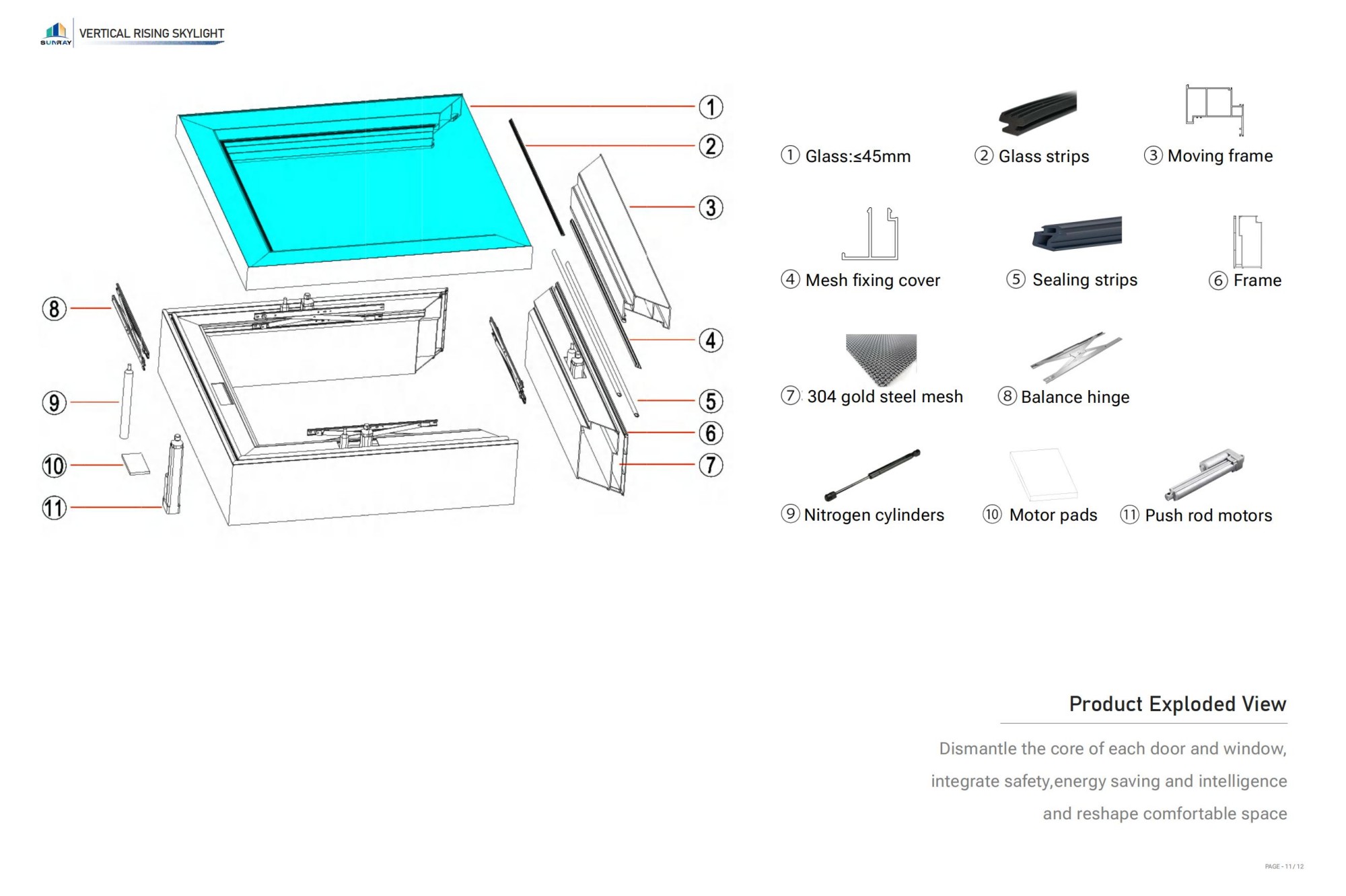

Assemble profiles, glass, rubber strips, and hardware; Electric models are equipped with motors, sensors, and control wires.
Sunroof Assembly
Manually adjust the opening and closing limit; Electric debugging remote control, limit, rainproof induction, overload protection
Complete Machine Function Debugging
Necessary modular disassembly; Pearl cotton wooden crate with wooden frame for protection, packed and shipped.
Dismantling, Protective Packaging, And Shipping
Comprehensive inspection to ensure product quality, safety, and performance.
The model, size, glass hardware, and contract drawings are consistent; The profile glass has no scratches, paint peeling, or cracks.
Even gaps without deviation; Fit the roof slope; The fixed parts are complete, firm, and without shaking.
Tempered/insulated glass with 3C coating; no scratches or edge bursts; Hollow without fogging and water ingress; The rubber strip is continuously and completely adhered.
Manual: The handle, hinge, and wind support are complete; Smooth opening and closing without any jamming or abnormal noise; The limit can be stably positioned; The locking point is in place.
Electric: The motor runs smoothly without any abnormal noise or vibration; Accurate remote start stop limit; Effective power-off and overload protection; Rain proof sensing function is normal; Line insulation and waterproofing.
Roof edge trimming and smooth water lap joint; The adhesive seam is full and continuous without bubbles; The drainage holes of the drainage trough are unobstructed and unobstructed.
No obvious air leakage after closing; Compliant glass profile insulation configuration; Screw holes are sealed, and there are no sharp burrs on the edges and corners.
Safety glass; Reliable load-bearing capacity of hardware; Complete anti fall devices; Insulation and leakage prevention of electric power lines.
If there is shaking or looseness, opening and closing failure, water seepage, fogging and cracking of glass, waterproof failure, or damage to the profile, it will be directly judged as rework.
In order to better meet your needs, we support color customization forlarge ordersensuring that each product perfectly reflects your brandstyle..
Champagne Gold
+$45 USD per square meter
In order to better meet your needs, we support color customization forlarge ordersensuring that each product perfectly reflects your brandstyle..
We've grouped the guestions by categories to make it easier for you to find the answers you're looking forIf you don't see an answer to your question, please contact us
Vertical-lift skylights feature window sashes that lift vertically to remain parallel to the roof surface; the entire sash rises suspended in the air without any sliding or outward-tilting motion. Driven by high-power electric actuators, they are commonly used in basement light wells, commercial buildings, factory fire smoke exhaust systems, patio roofs, and outdoor courtyard canopies.
Standard size: 2000 × 1200; maximum size: 4000 × 4000

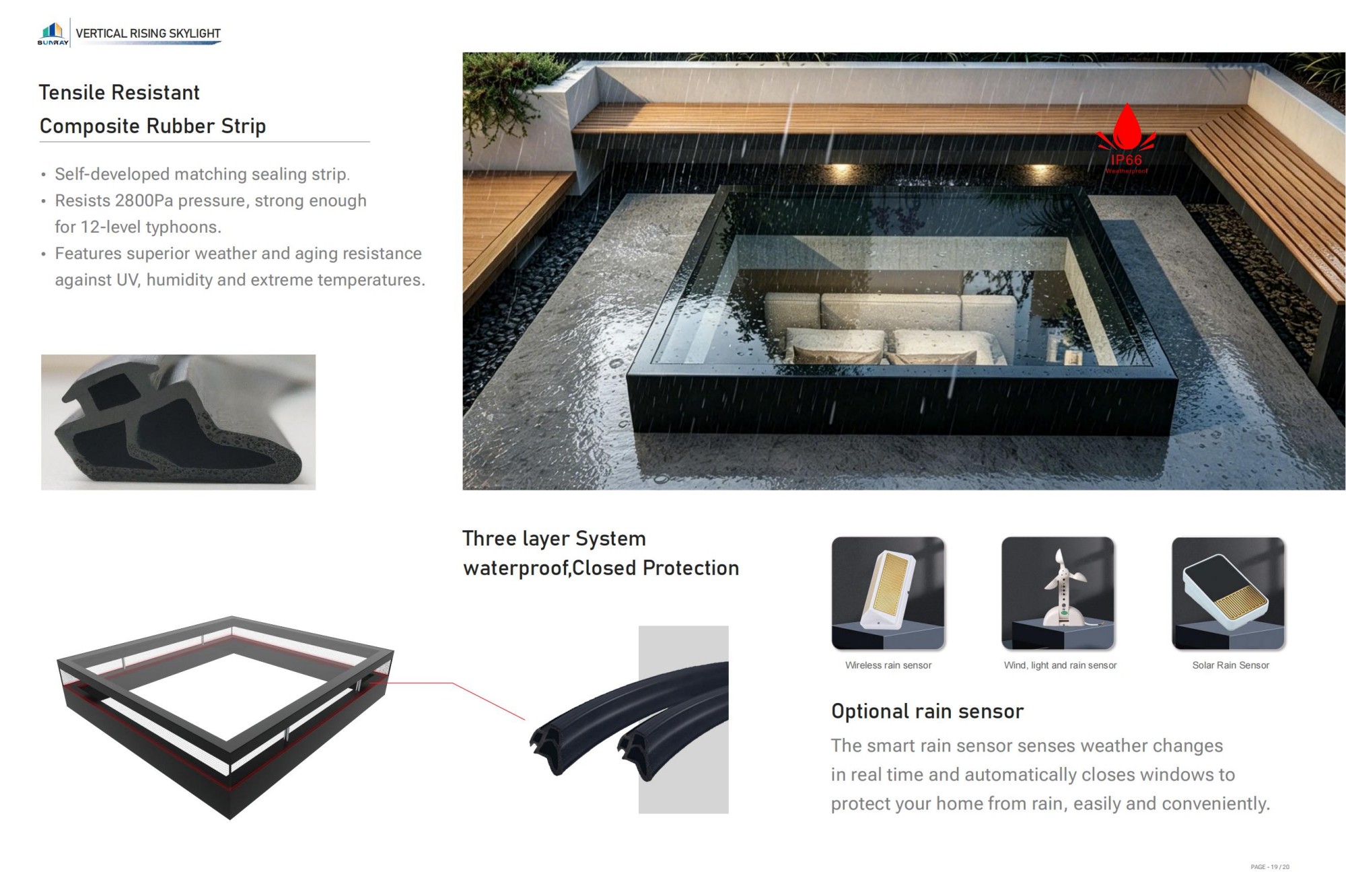

The profiles feature multi-layer water-blocking baffles and perimeter drainage channels; when the sash is raised, a gap is created, and when closed, the entire frame presses against the EPDM rubber gasket to ensure a seal.
Common causes of water leakage include: leaves clogging the drainage channels; the four push rods moving out of sync, causing the sash to tilt and fail to press tightly against the gasket; and cracks in the roof waterproofing at the edge.
Clear the drainage channels, calibrate the synchronized travel of the multiple push rods, and redo the roof waterproofing at the edge.

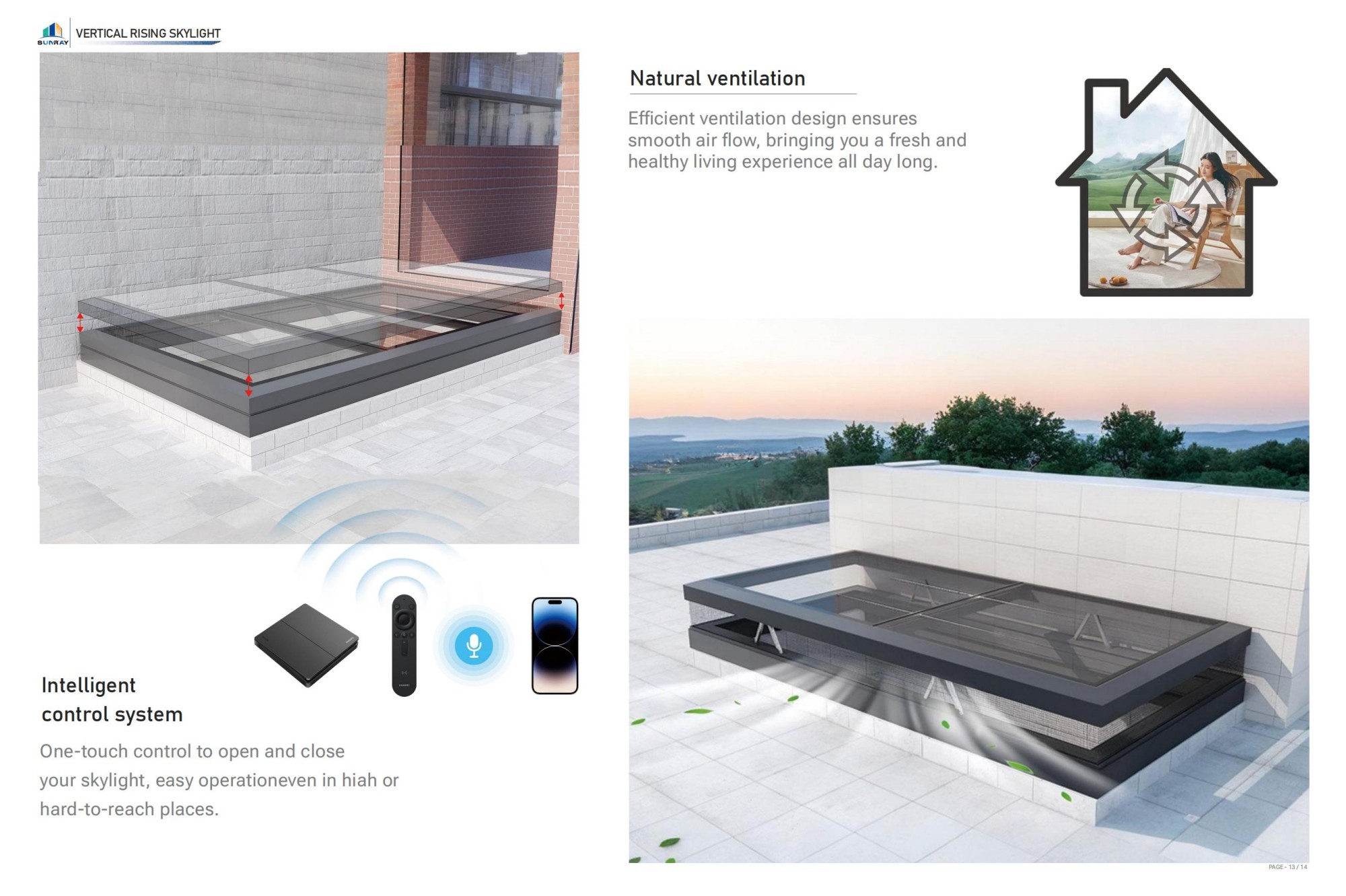

When connected to an external rain and wind sensor, the system automatically shuts off when a rain signal is detected; temperature sensors and smoke detectors can also be installed to trigger the system’s activation in conjunction with the factory’s fire suppression and smoke exhaust systems.

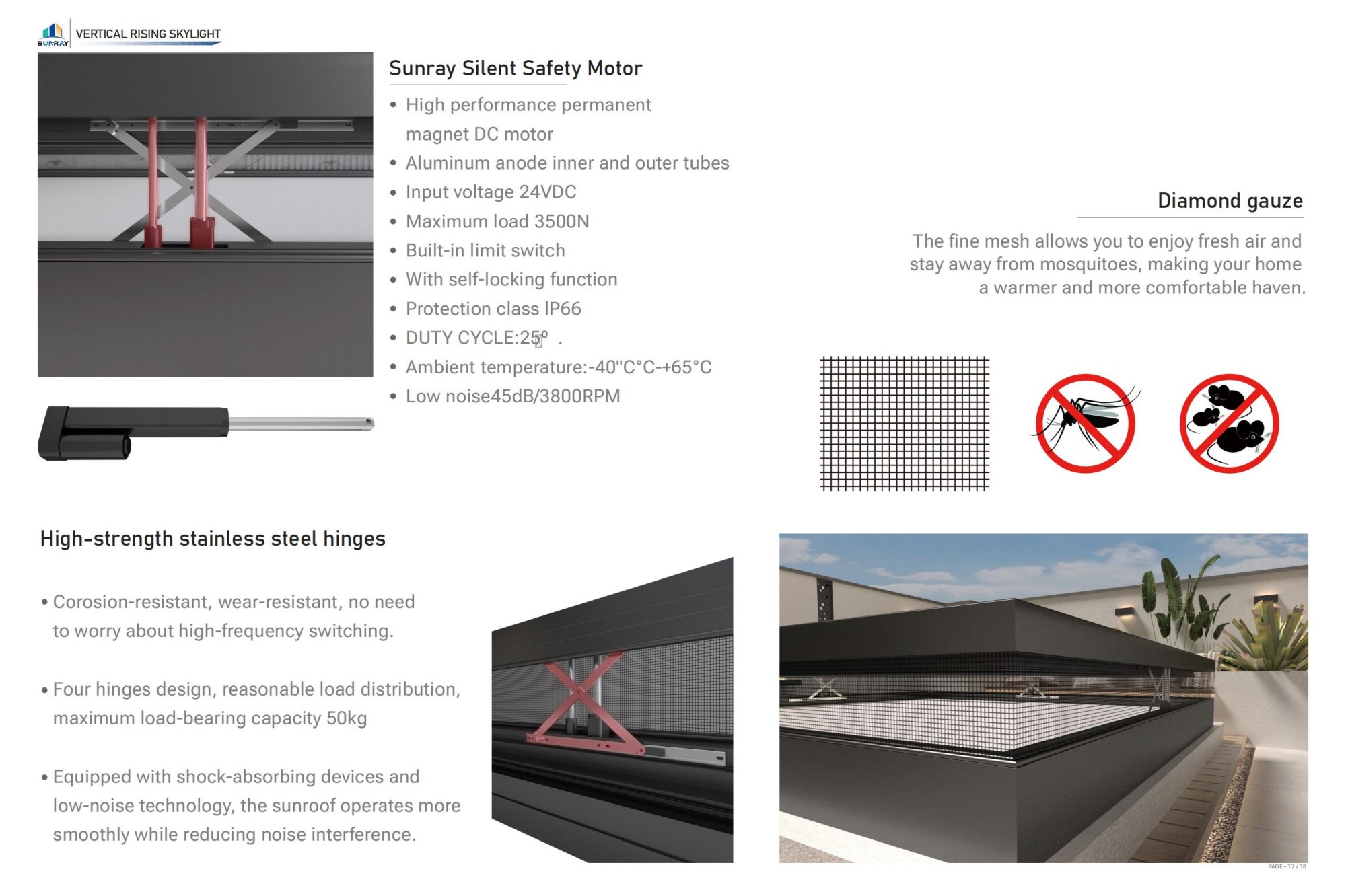

The electric linear actuator has a cycle life of 40,000 cycles;
Motor components are covered by a 2-year warranty, and the aluminum alloy frame is covered by a 10-year warranty;
1. Leaves and dust have accumulated in the extruded drainage channels, causing the drainage outlets to become clogged;
2. The EPDM weatherstripping has deteriorated, resulting in uneven compression gaps;
3. The waterproof sealant at the junction between the window frame and the roof has cracked.
Solution: Clear the drainage channels, replace the weatherstripping, and redo the waterproofing at the roof junction.
