This tailored motorized retractable sunroom is designed exclusively for public swimming pools across the Middle East, built to adapt to the region’s typical climate: year-round strong sunlight, distinct wet and dry seasons, hot dry summers, mild low-rain winters, high coastal humidity and low inland desert humidity. As a robust mobile sunroom solution, it delivers all-weather pool coverage, stable structural performance and cost-efficient cross-border delivery, fully complying with local public facility safety standards for high-sunlight arid regions.
Core Client Requirements
-
All-Weather Use: Enclosed rectangular motorized sunroom to shield the pool from harsh weather, enabling year-round public access.
-

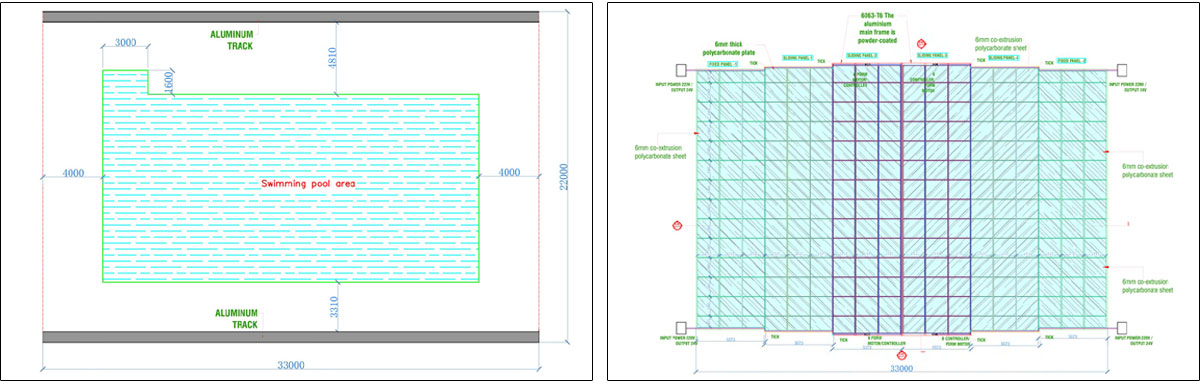

Spacious Layout: 4-meter clear walkway reserved around the entire pool, ensuring ample room for swimming and leisure even when the retractable sunroom is fully closed.
-
Stable & Flexible Operation: Multi-arch structure for enhanced stability, with electric control + manual emergency release dual-mode operation, making this mobile sunroom both secure and user-friendly.
-
Safety Compliance: 2 panic bar doors installed to meet regional emergency evacuation standards for large movable sunrooms.
-
Easy Maintenance: Simple water rinsing for full cleaning, lowering long-term upkeep costs for public facilities.
Key Project Specifications & Site Details
-

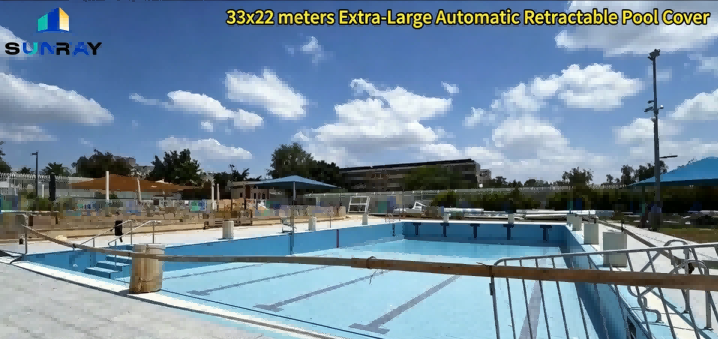

Product Size: 33000*22000*7000mm
-
Installation Site: Flat, independent open ground with sufficient working space for efficient, low-disruption construction.
-
Transportation:Knockdown shipping, packed completely into 2 x 40HQ containers for cost-effective cross-border logistics, a key advantage of this modular mobile sunroom design.
-
Installation Difficulty: Moderate, installable by technicians with basic door and window fitting experience.
Customized Design Highlights

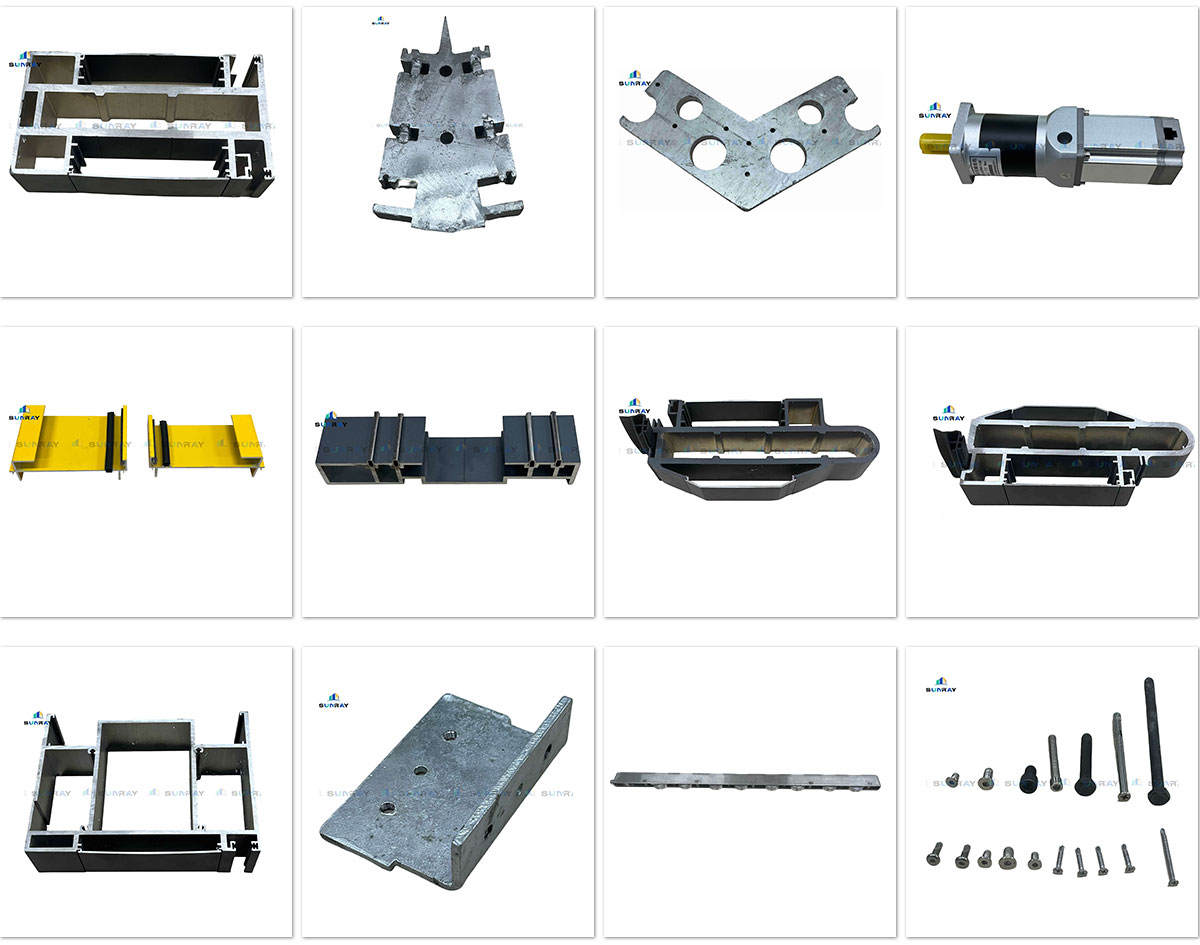

1. Main Frame

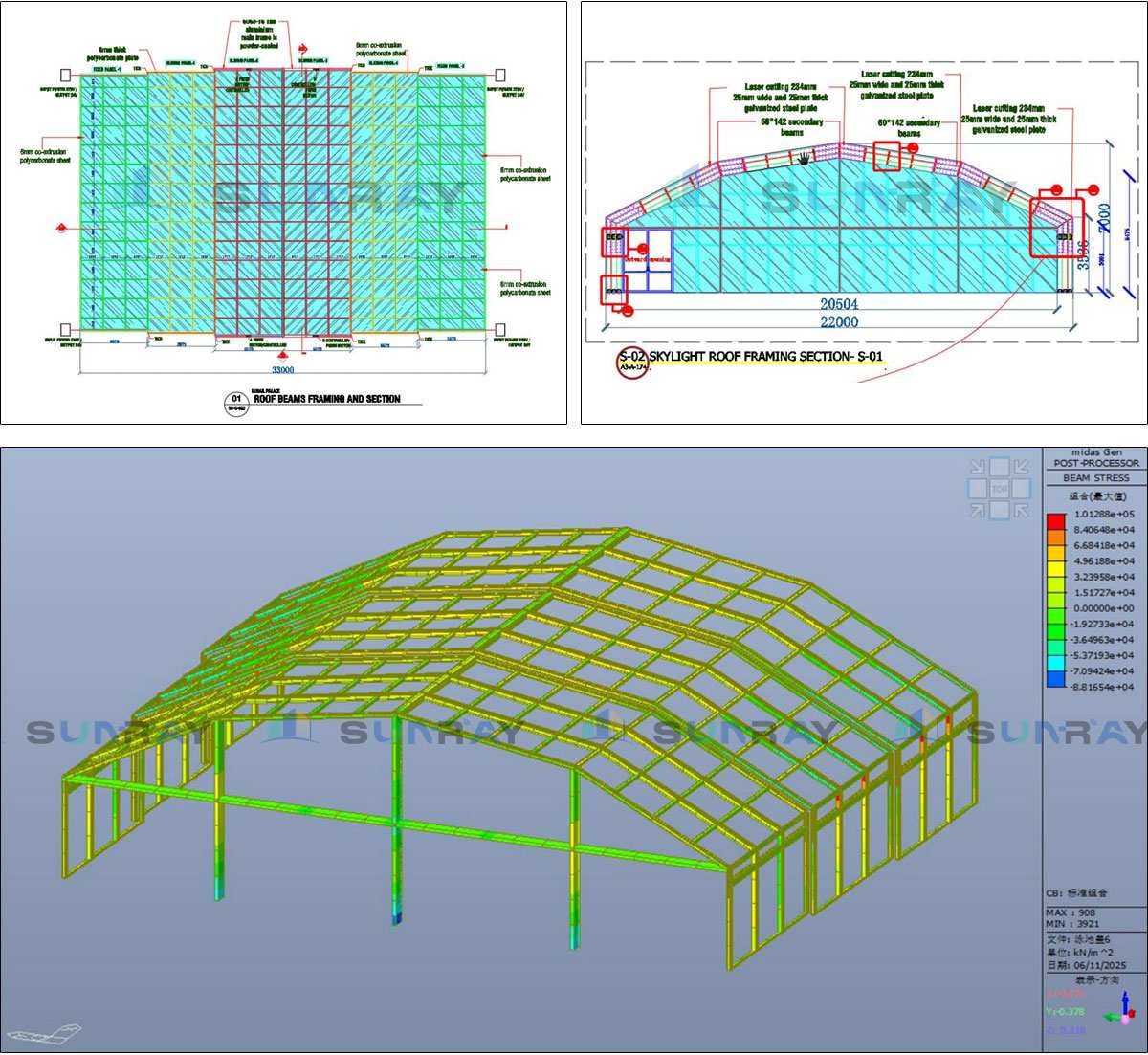

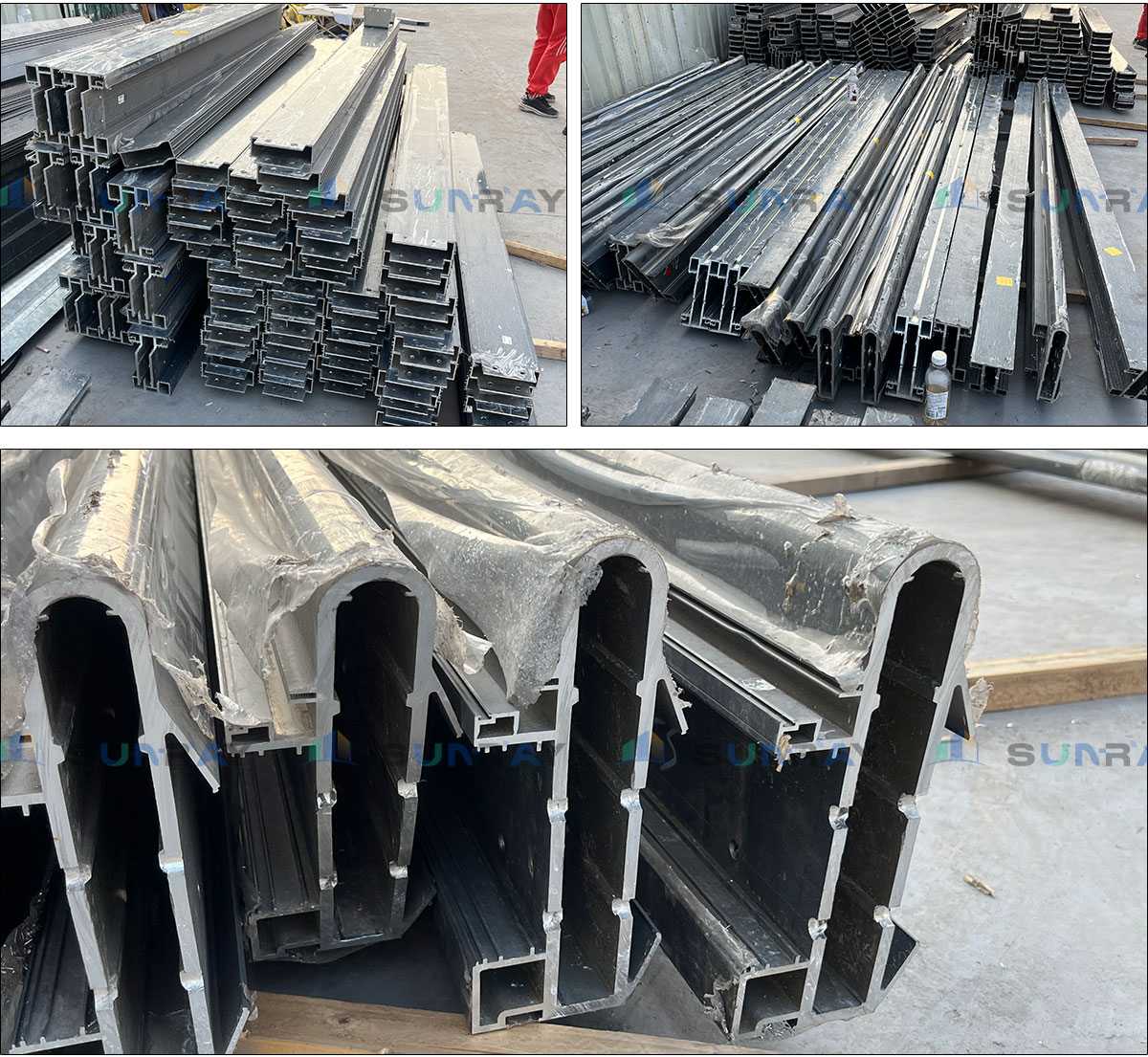

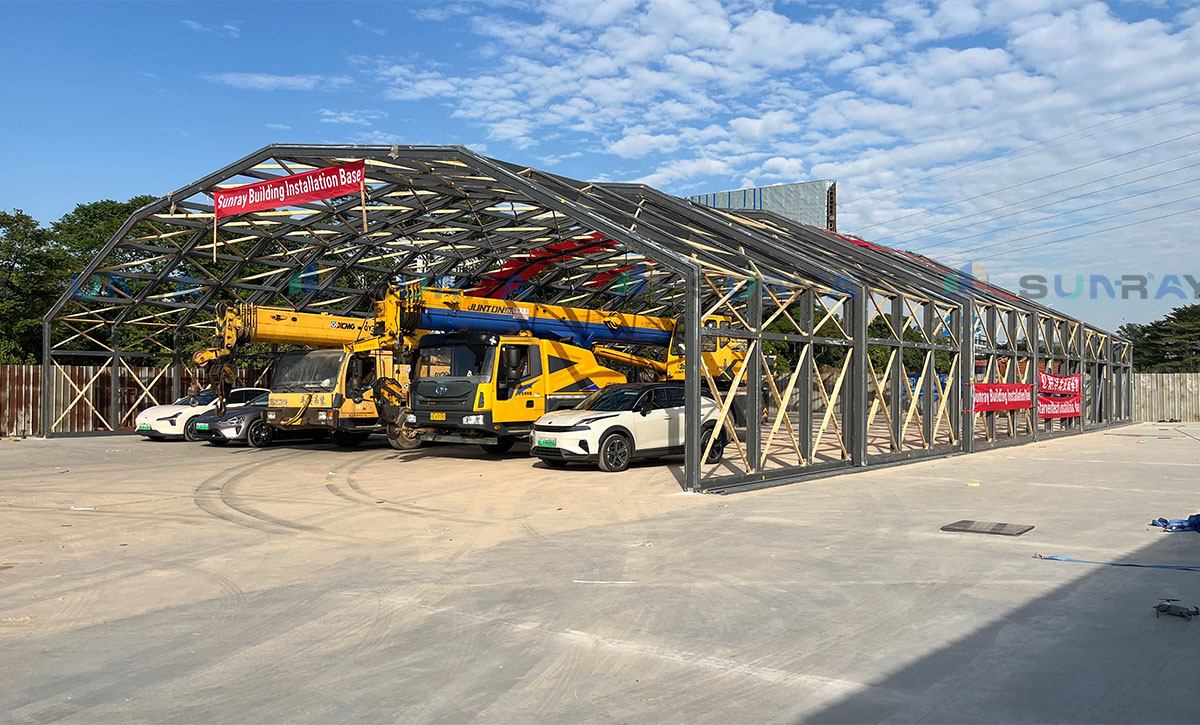

Built with black 6063-T6 high-strength aluminum alloy (110×250×8.0mm), joints reinforced with 15mm thick steel plates. Structural stress analysis adapted to local wind and sand conditions ensures superior load-bearing and wind resistance; the multi-arch design boosts overall stability against regional sandstorms and strong winds, making this retractable sunroom reliable in extreme weather.
2. Daylighting Panels
-
Roof: 6mm UV-coated polycarbonate panels, blocking over 90% of harmful UV rays to filter strong sunlight and prevent interior overheating, while retaining natural light.
-
Facade: 5mm+0.76PVB+5mm tempered laminated glass, high impact-resistant and safe, with no sharp splinters if broken to protect public users of this mobile sunroom.
3. Retractable & Drive System

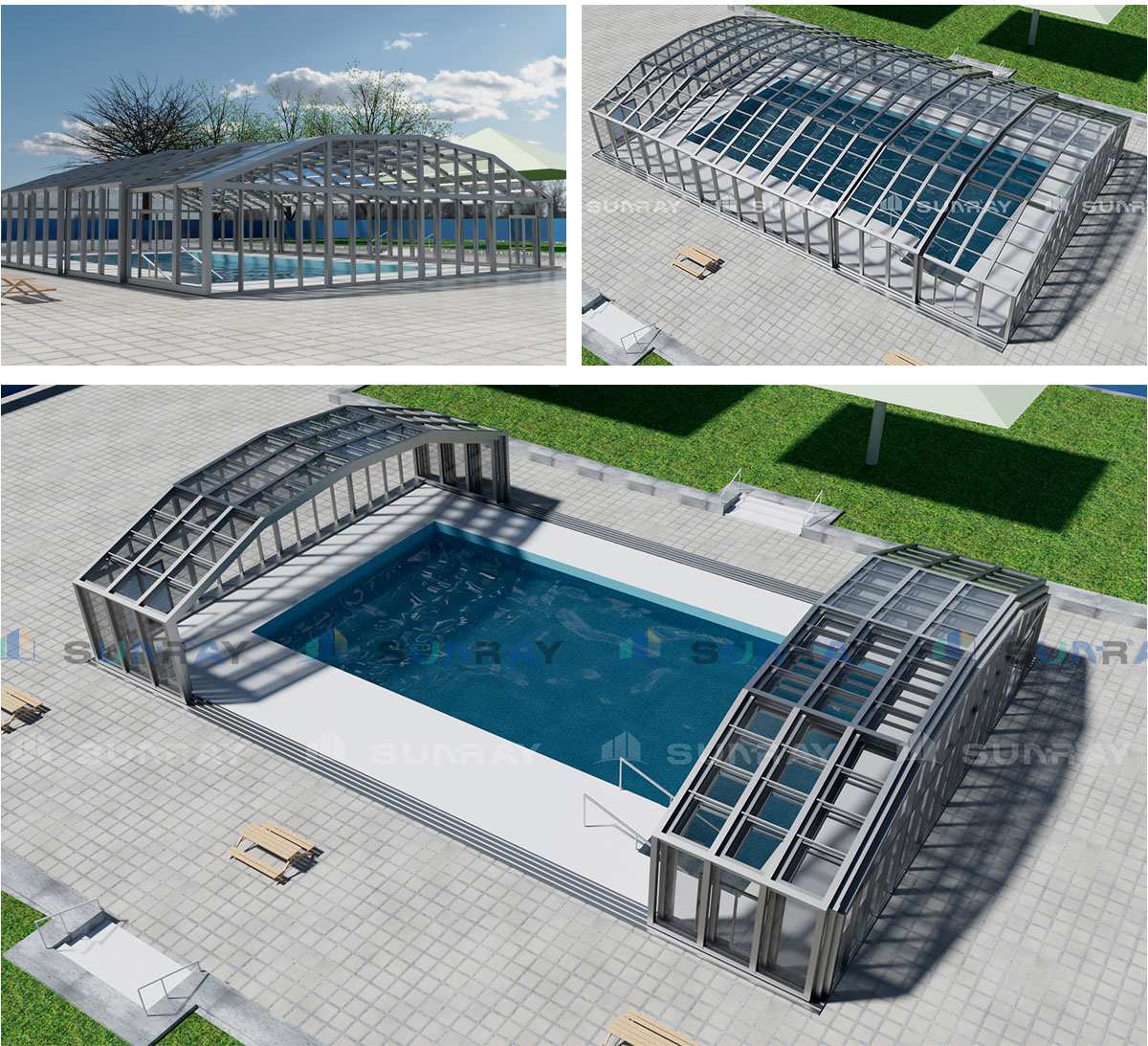

Three-rail six-panel modular sliding design for smooth, flexible opening and closing, the core feature of this retractable sunroom. Equipped with external gear rack motor for stable electric operation, plus manual emergency function for power outage scenarios.
4. Sealing & Waterproofing
Interlocking rubber seals between panels for high airtightness and waterproof performance, preventing rain leakage, blocking sand dust and reducing heat loss, so the mobile sunroom stays comfortable year-round.

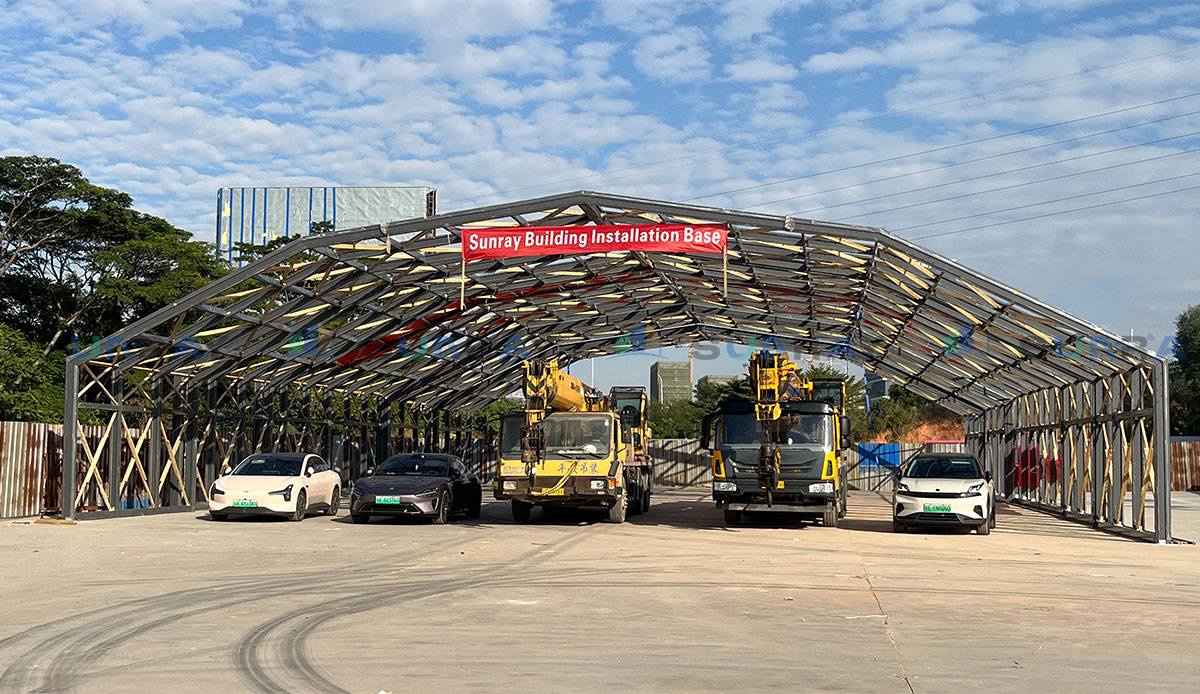

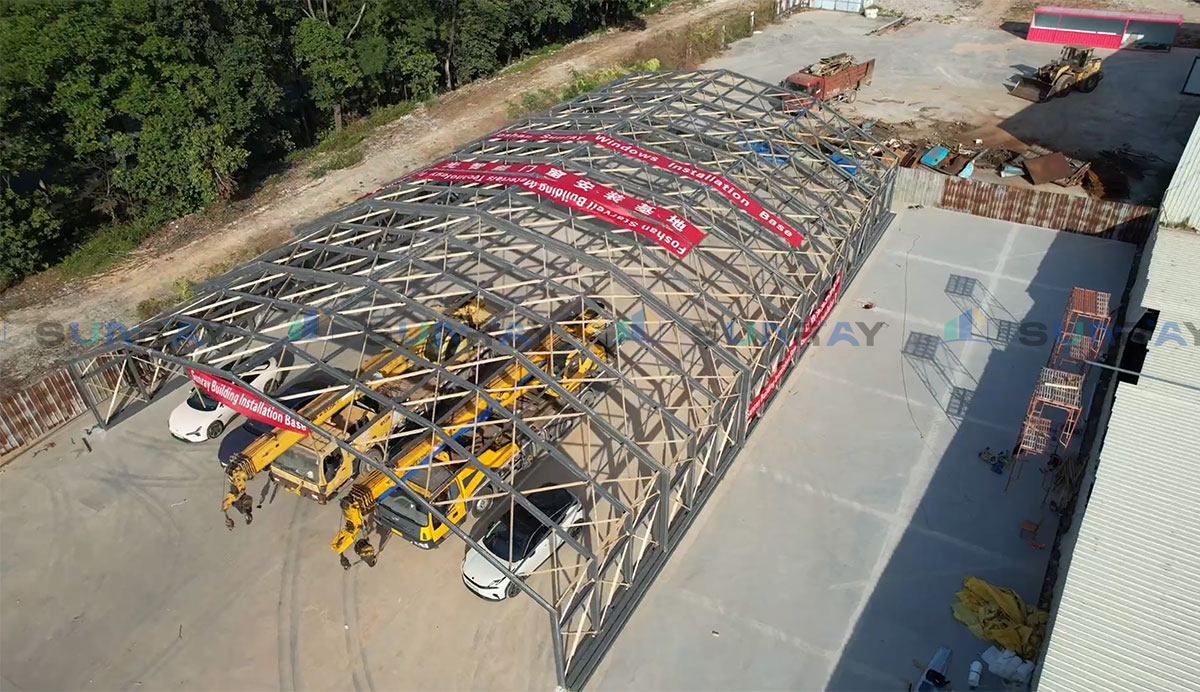

5. Transportation & Installation
Knockdown modular design fits 2 standard 40HQ containers, cutting logistics costs, which is why this solution is ideal for projects that need the benefits of sunrooms for mobile homes in a large-scale public pool application. Streamlined assembly works well on flat open sites, enabling quick construction with minimal disruption to pool operations.
Core Value
This solution combines durable region-adapted materials, stable structure and user-friendly functions to enable year-round public pool use, high safety and low maintenance. Its efficient shipping and easy installation also reduce overall project costs, offering a replicable all-weather coverage solution for public pools across the Middle East — a scalable take on the trusted performance of a sunroom mobile home system, engineered for large commercial use.
