Project Overview
Client Requirements
- Create a high-end rooftop restaurant with unobstructed views and all-weather usability.
- Realize large openable space for natural ventilation and flexible scene switching.
- Ensure hurricane resistance, waterproofing, and durability in high-temperature and high-humidity environments.
- Match the luxury positioning of the riverside commercial complex.
- Provide stable, silent, intelligent control for the retractable sunroom system.
Design Solution
-

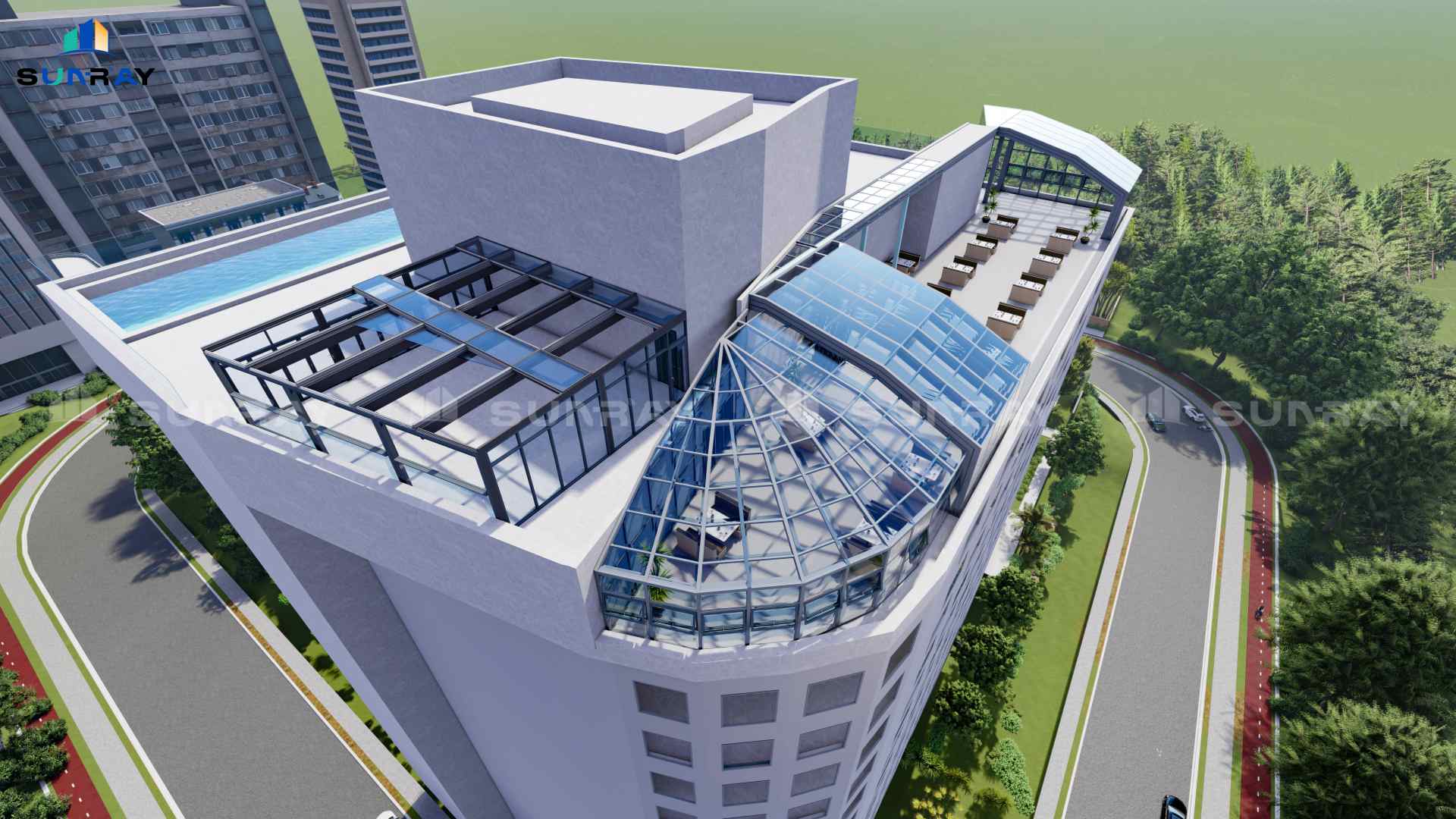

Dual System Combination
Adopt fixed high-end curtain wall + electric retractable sunroom to balance enclosure, openness, and architectural aesthetics.
-
Fixed Part: High-End Curtain Wall Structure
Use high-strength aluminum profiles and large-area laminated tempered glass.
Excellent airtightness, watertightness, wind resistance, and sound insulation.
Perfectly integrate with the building’s facade to enhance luxury texture.
-

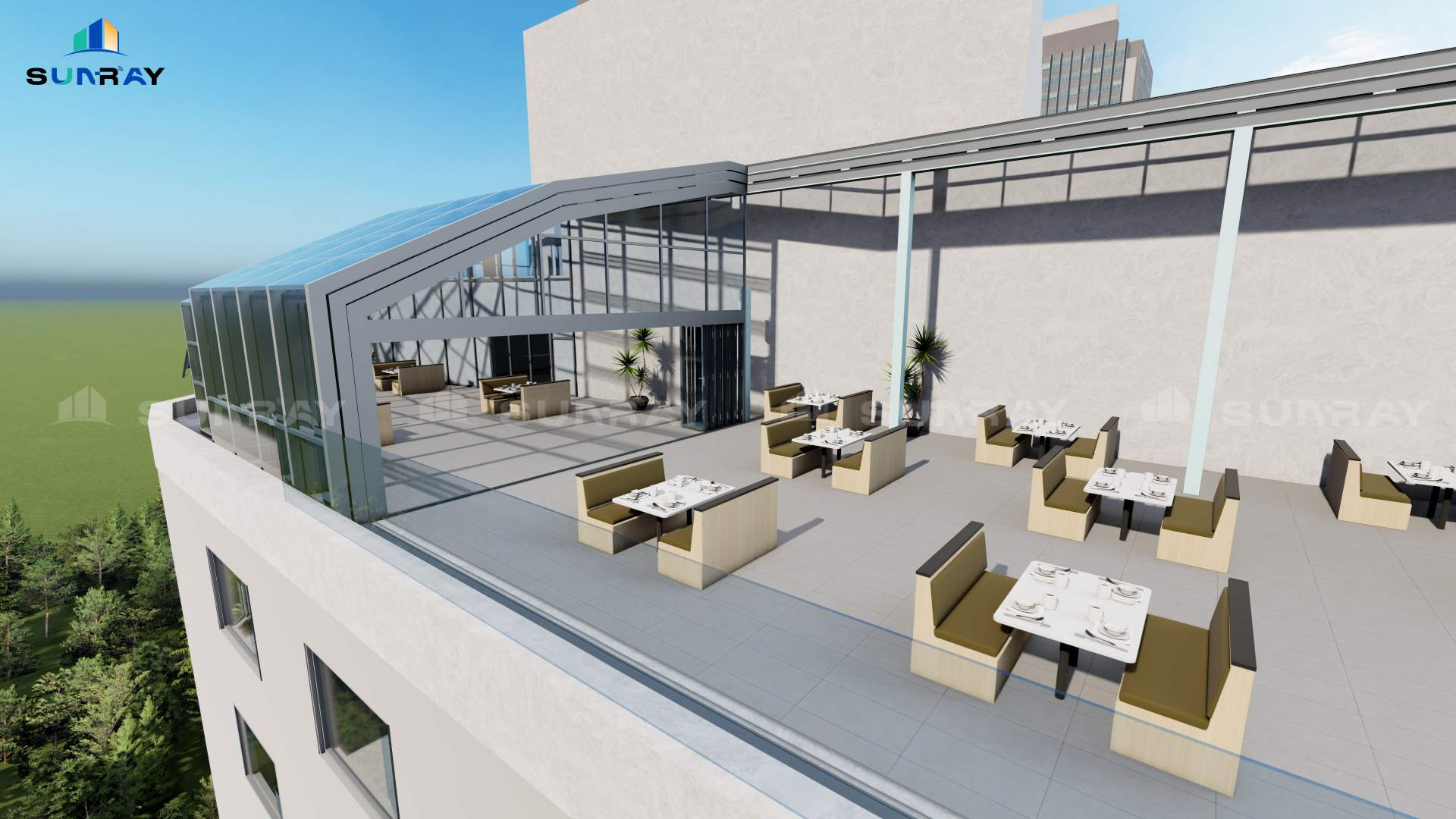

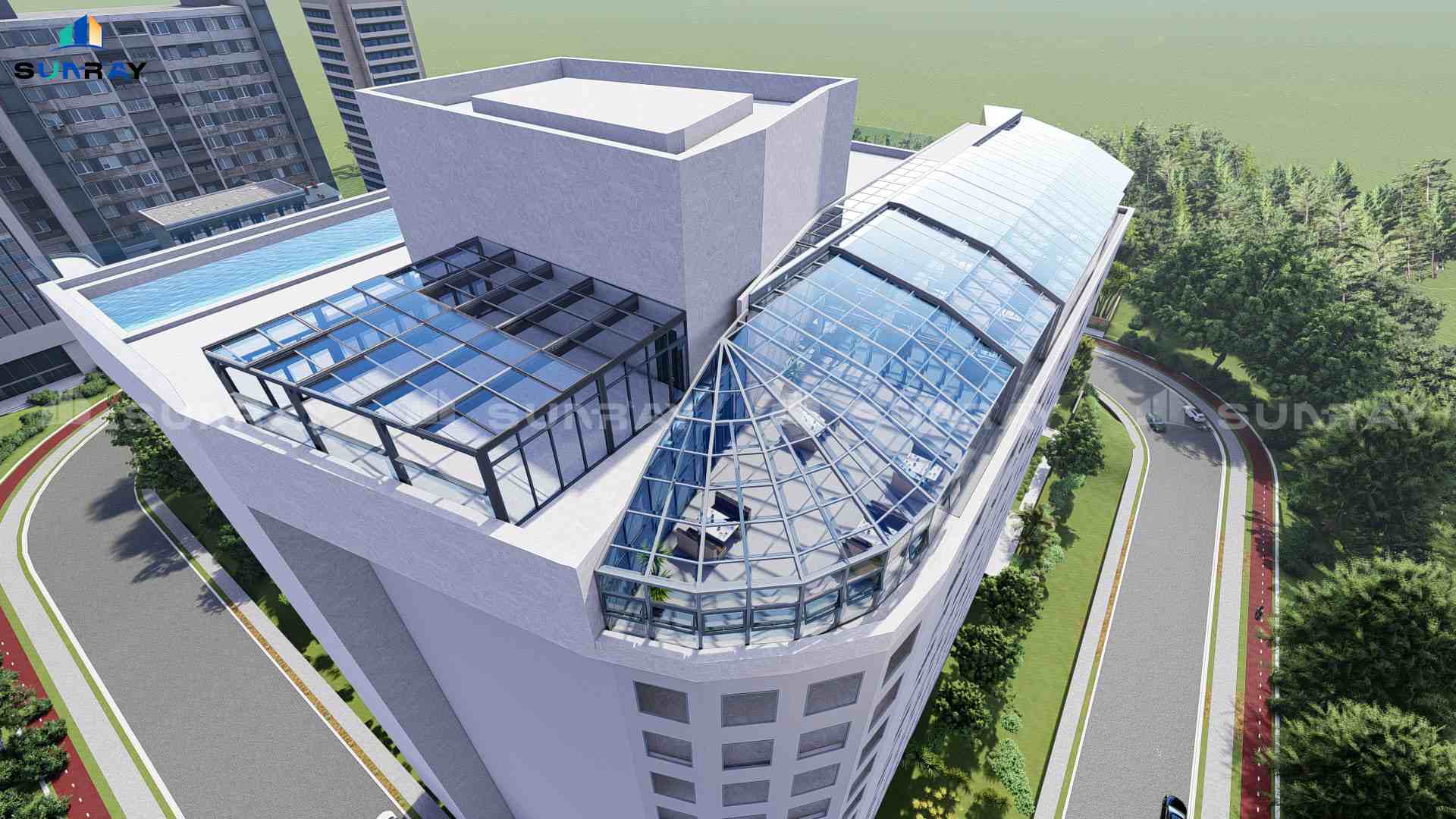

Mobile Part: Electric Retractable Sunroom

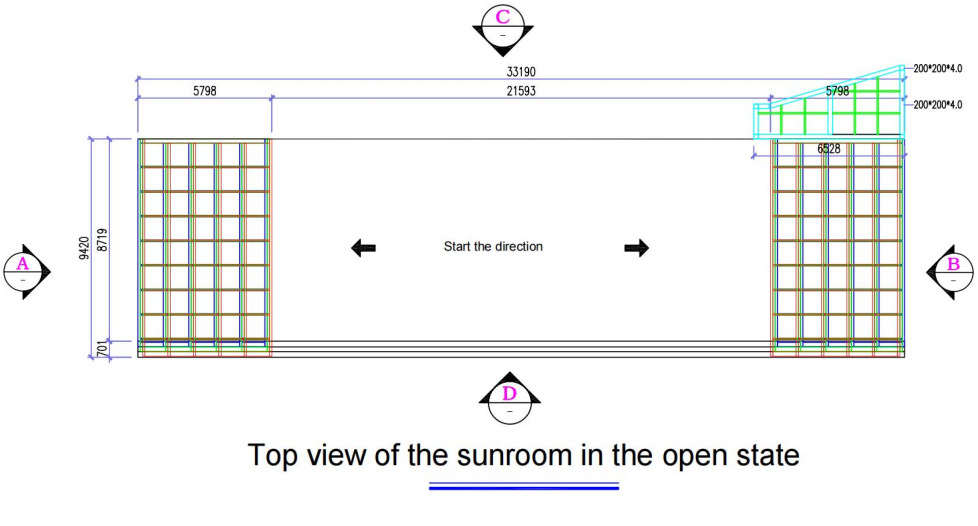

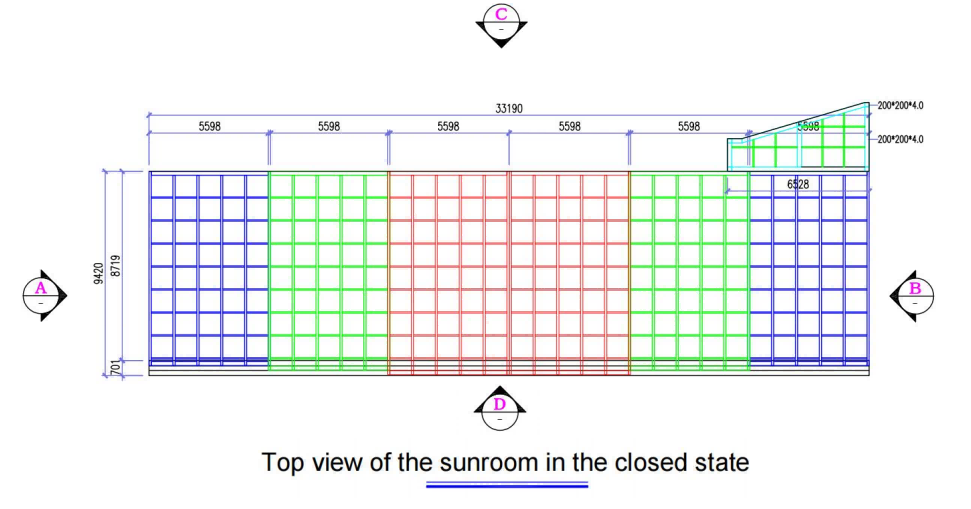

3-track, 6-panel electric mobile sunroom with multi-arch design.
6063-T5 heavy-duty aluminum main beam (1001805.0mm) for strong load capacity.
5+0.76+5 laminated tempered glass for safety, UV protection, and high light transmission.
-
Structural Reinforcement & Waterproofing

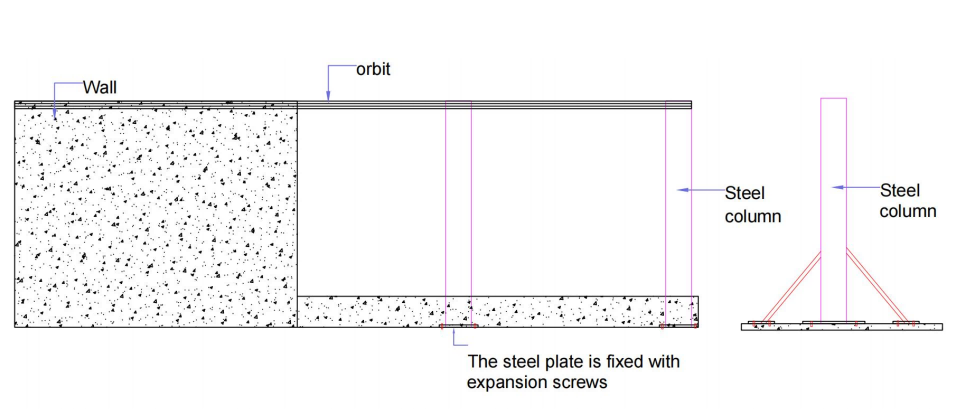

Added steel support structure, triangular braces, and thickened base plates.
Equipped with special track water troughs and EPDM sealing strips to ensure complete waterproofing.
-
Intelligent Control System
200W high-precision silent servo motor with low failure rate.
Support one-button opening/closing and manual operation in case of power failure.
Optional lighting and sunshade systems to upgrade dining experience.
Project Results
Wind resistance reaches Grade 11, adapting to tropical storms and heavy rain.
The space can be used all year round, transforming freely between open terrace and enclosed restaurant.
The design highly matches the riverside luxury style, making it a landmark rooftop dining destination.
