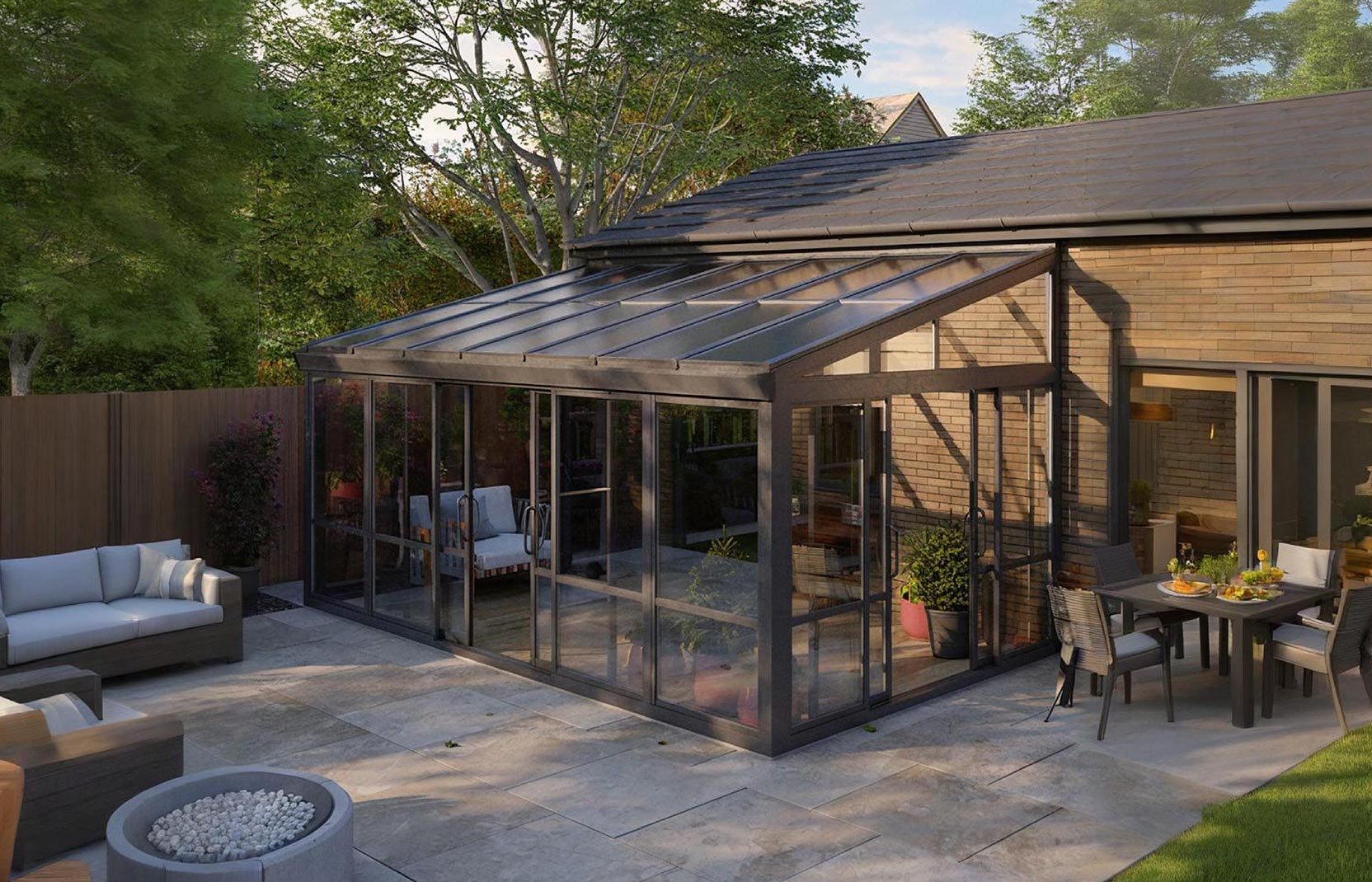

Sunroom Systems
SUNROOM SYSTEMS
Made of 6063-T6 thermal break aluminum with powder coating, corrosion and fade resistant. Standard double tempered insulated glass, Low-E optional. Gable/sloped/flat roof available, hidden drainage against leakage. Modular installation. Custom size & color for villa patio and garden. Export orders supported with drawings and certificates.
Confirm the wind and snow load, size, and configuration of doors, windows, and skylights; Output a complete set of machining drawings and split them into component BOM lists; Review drainage slope, structural safety, and export transportation dimensions.
Design and Drawing Disassembly

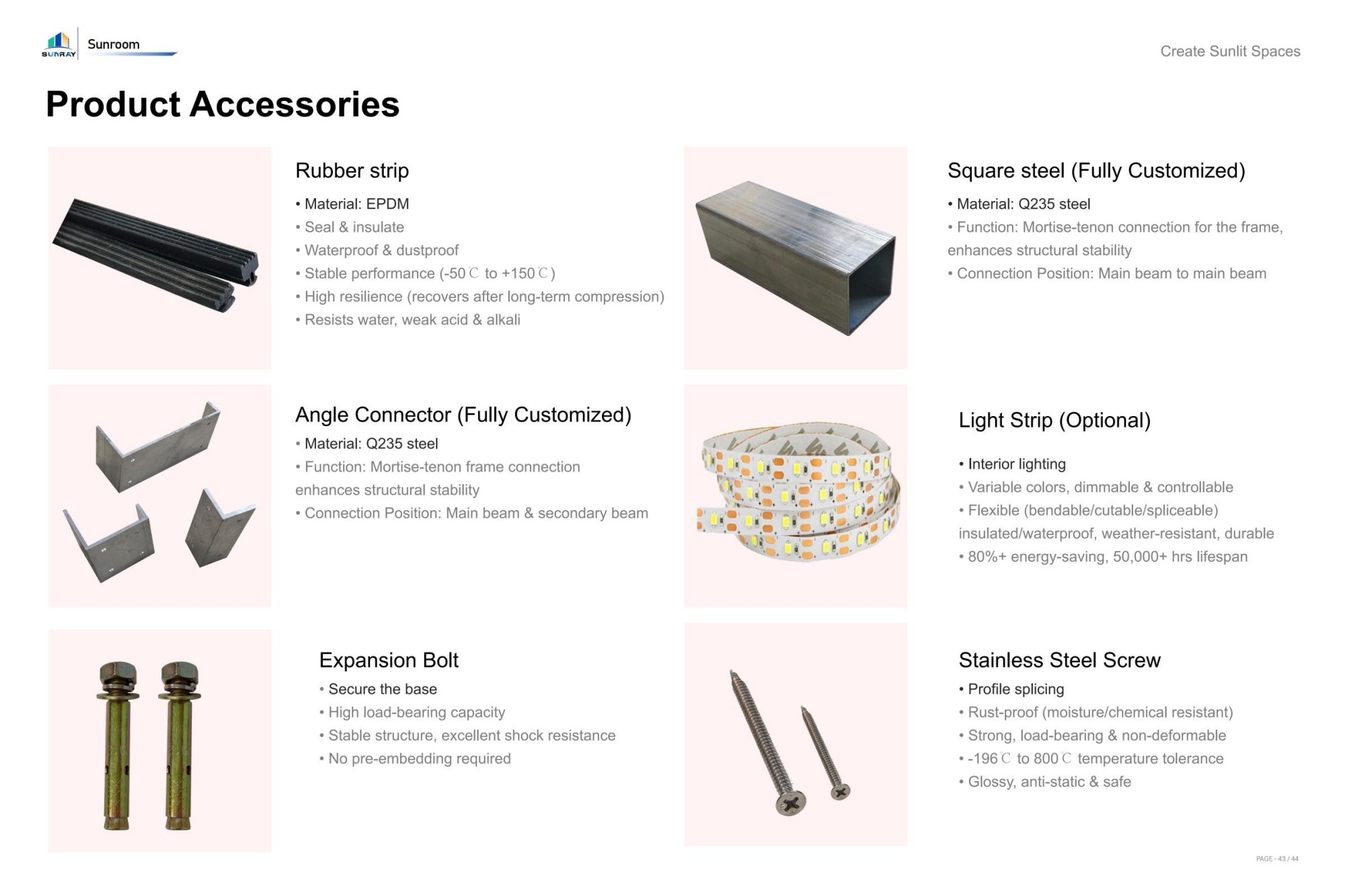

Aluminum alloy profiles/steel structure square tubes, hollow tempered/Low E glass, EPDM rubber strips, 304 hardware, outdoor weather resistant sealant; Incoming inspection, unqualified items are prohibited.
Material Statistics Procurement, IQC Incoming Inspection
CNC sawing machine cutting, controlling cutting tolerances; Process milling holes, drainage holes, and hardware holes on profiles, and clean aluminum and iron shavings.
Profile Cutting and Cutting
Pre treatmentofworkpieces, degreasing and phosphating outdor powdercoating /fuorocarbon coatinsg hish temperature curing inspect coatingthichnes, adhesion,and appearance defects.
Surface Spraying Treatment
Assembly or welding of main and auxiliary frames; Grinding and rust removal of steel structure welds for corrosion prevention; Control the overall squareness; Reserved roof drainage slope ≥ 3 ‰.
Frame assembly welding/corner code assembly

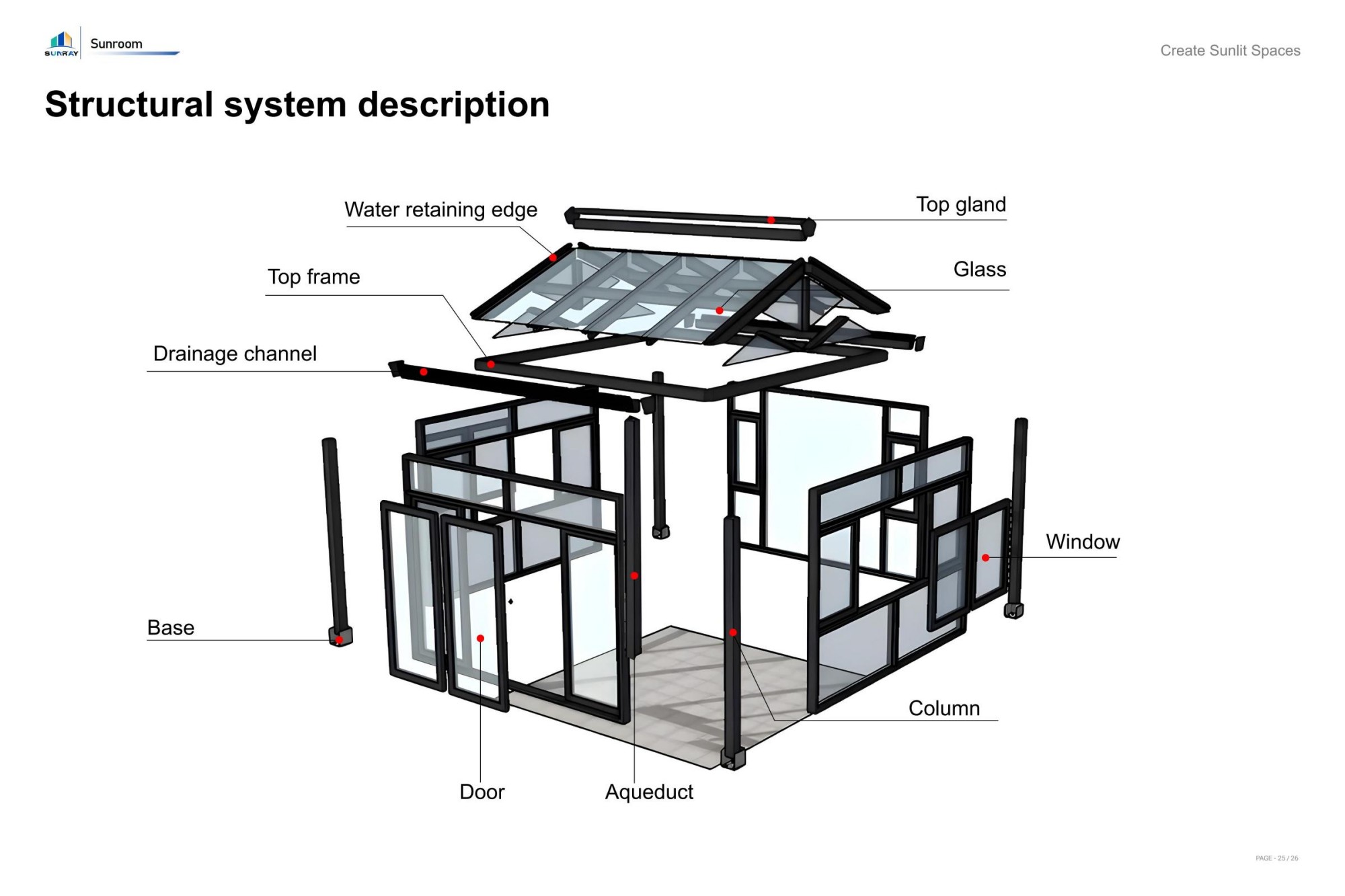

Install columns and top frames; Assemble glass, doors, windows, and skylights; Install the sealing strip; Apply weather resistant sealant to all splicing gaps; Establish a proper roof drainage system.
Assembly of Enclosure, Doors, Windows, And Skylights
Debugging the opening and closing of doors, windows, and skylights; Check the gaps, seals, and drainage.
Assembly and Debugging
The overall appearance, size, structural strength, water tightness, and opening and closing function are not qualified for rework.
Finished Product Inspection
Modular disassembly, corner protection with pearl cotton wooden frame for protection; Package and ship with accompanying instructions and accessories.
Dismantle Protective Packaging For Shipment
Comprehensive inspection to ensure product quality, safety, and performance.
The shape is neat, horizontal and vertical, without any tilt or distortion; The profile has no color difference, scratches or bumps; The splicing gap is uniform.
Deviation between length, width, and height from the drawing is ≤ 3mm; diagonal error is ≤ 5mm; roof drainage slope is ≥ 3 ‰.
The thickness of the profile wall complies with the contract; Secure splicing; Welding without virtual welding, leakage welding or cracking; The anti-corrosion of the steel structure is in place.
The glass specifications are consistent with the contract, and the 3C markings are complete; No scratches or broken edges; Hollow glass does not fog and water enters.
There is no missing hardware model matching; Smooth opening and closing of doors and windows, tight locking without air leakage; The limit device is effective.
Frame shaking and material theft reduction; Glass defects; Leakage and accumulation of water; Hardware failure; Welding cracking; Large areas of paint peeling and deformation must be reworked.

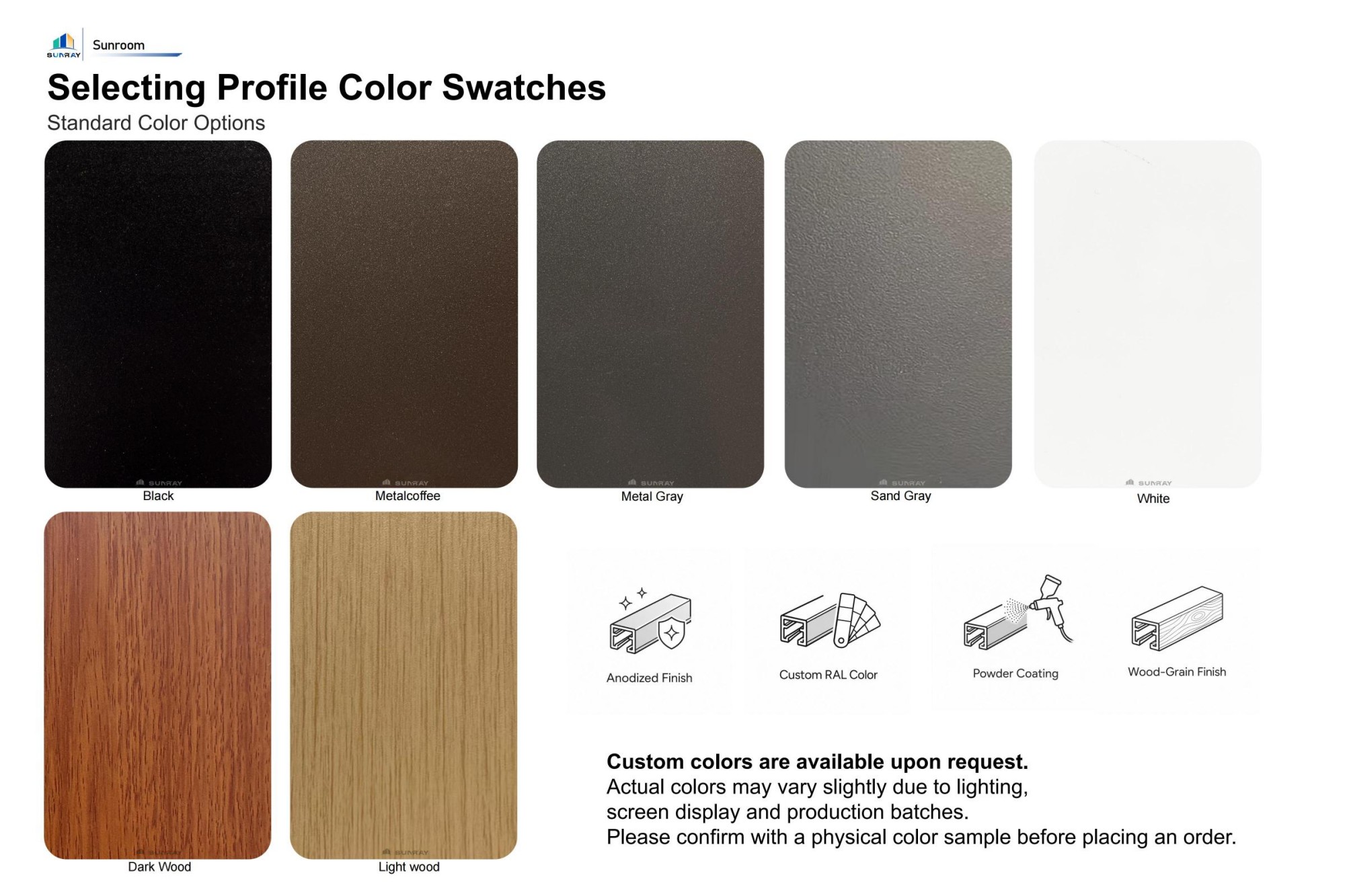

In order to better meet your needs, we support color customization forlarge ordersensuring that each product perfectly reflects your brandstyle..
In order to better meet your needs, we support color customization forlarge ordersensuring that each product perfectly reflects your brandstyle..
In order to better meet your needs, we support color customization forlarge
ordersensuring that each product perfectly reflects your brandstyle..
Dark Wood
（+$25/m2 for color option）
Light wood
（+$25/m2 for color option）
In order to better meet your needs, we support color customization forlarge ordersensuring that each product perfectly reflects your brandstyle..
In order to better meet your needs, we support color customization forlarge ordersensuring that each product perfectly reflects your brandstyle..
We've grouped the guestions by categories to make it easier for you to find the answers you're looking forIf you don't see an answer to your question, please contact us
A fixed sunroom is a permanent, rigid, enclosed structure designed to maximize natural light. Its frame is securely anchored to the existing building structure using bolts, corner brackets, and welding. The roof as a whole cannot be opened, moved, or extended; once constructed, its dimensions, shape, and location remain fixed and unchanging. It is classified as a building extension. 1. Large areas of glass on the roof and walls provide abundant natural light during the day, reducing the need for artificial lighting. They offer expansive views and allow you to gaze up at the sky.
Lighting is consistent and uninterrupted by opening mechanisms; there are no tracks or folding components to block the light. The glass is seamless and continuous, eliminating obstructions from module joints. As long as the sunshades are not deployed, light levels remain stable throughout the day.

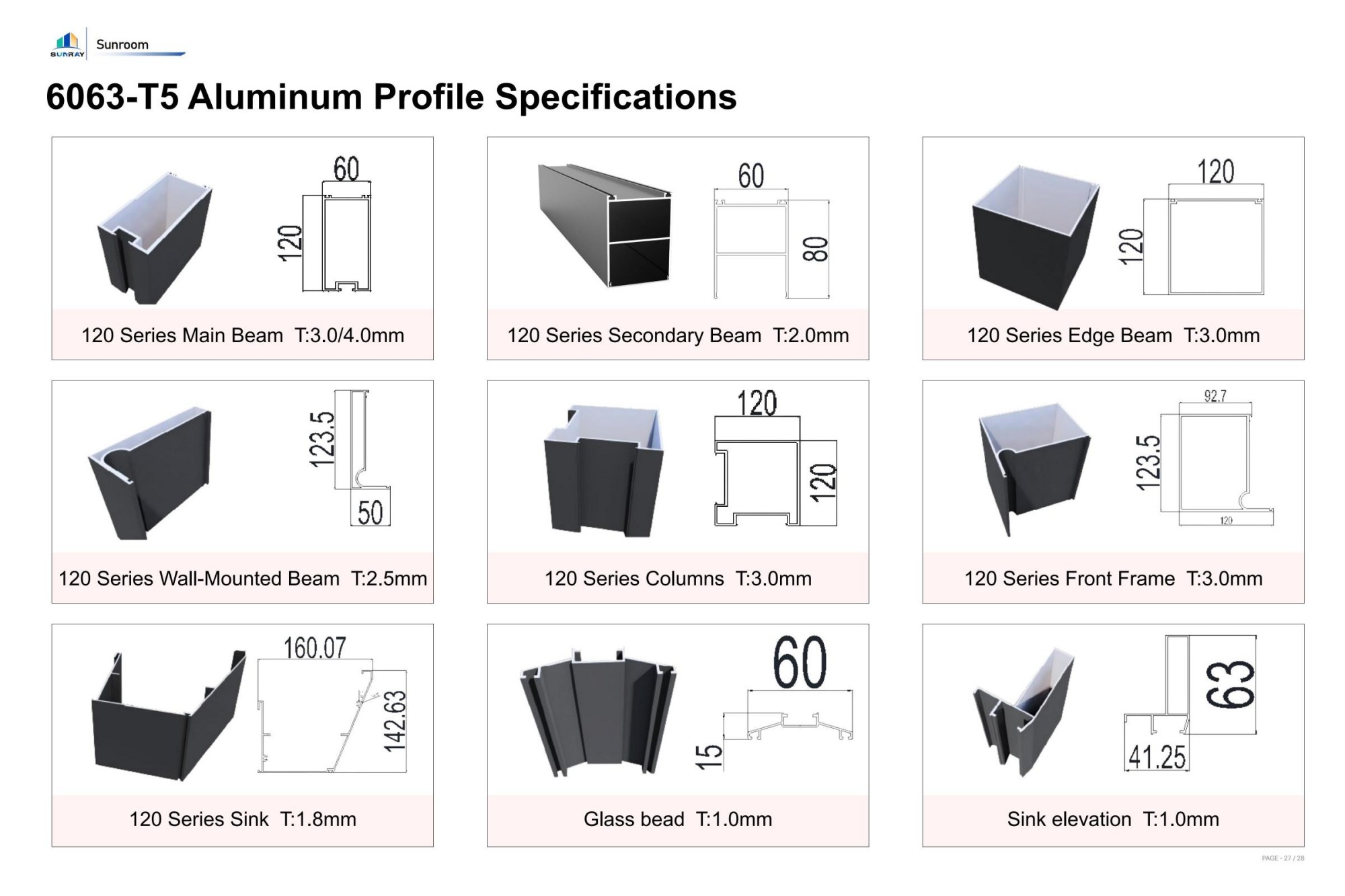

Standard configuration features 6063-T5 aerospace-grade aluminum alloy; optional non-thermal-break and full-thermal-break profiles are available. Standard mullion wall thickness ranges from 2.3 mm to 5.0 mm; thicker specifications can be customized based on span and local wind and snow loads to comply with building codes in North America, Australia, and other regions.

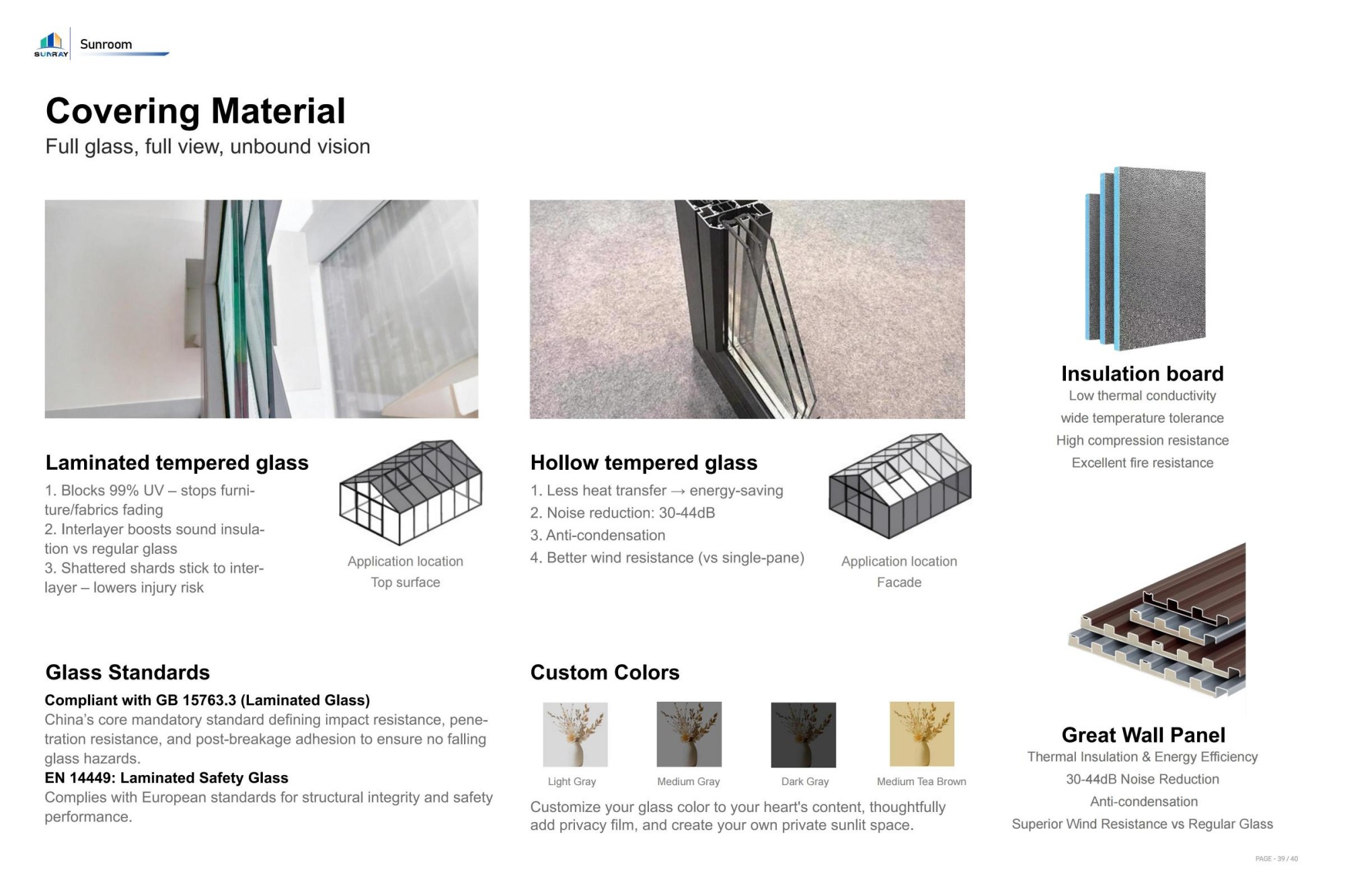

1. Double-pane insulated tempered glass (basic model, soundproofing and thermal insulation)
2. Insulated Low-E coated glass (UV protection, thermal insulation, and sun protection)

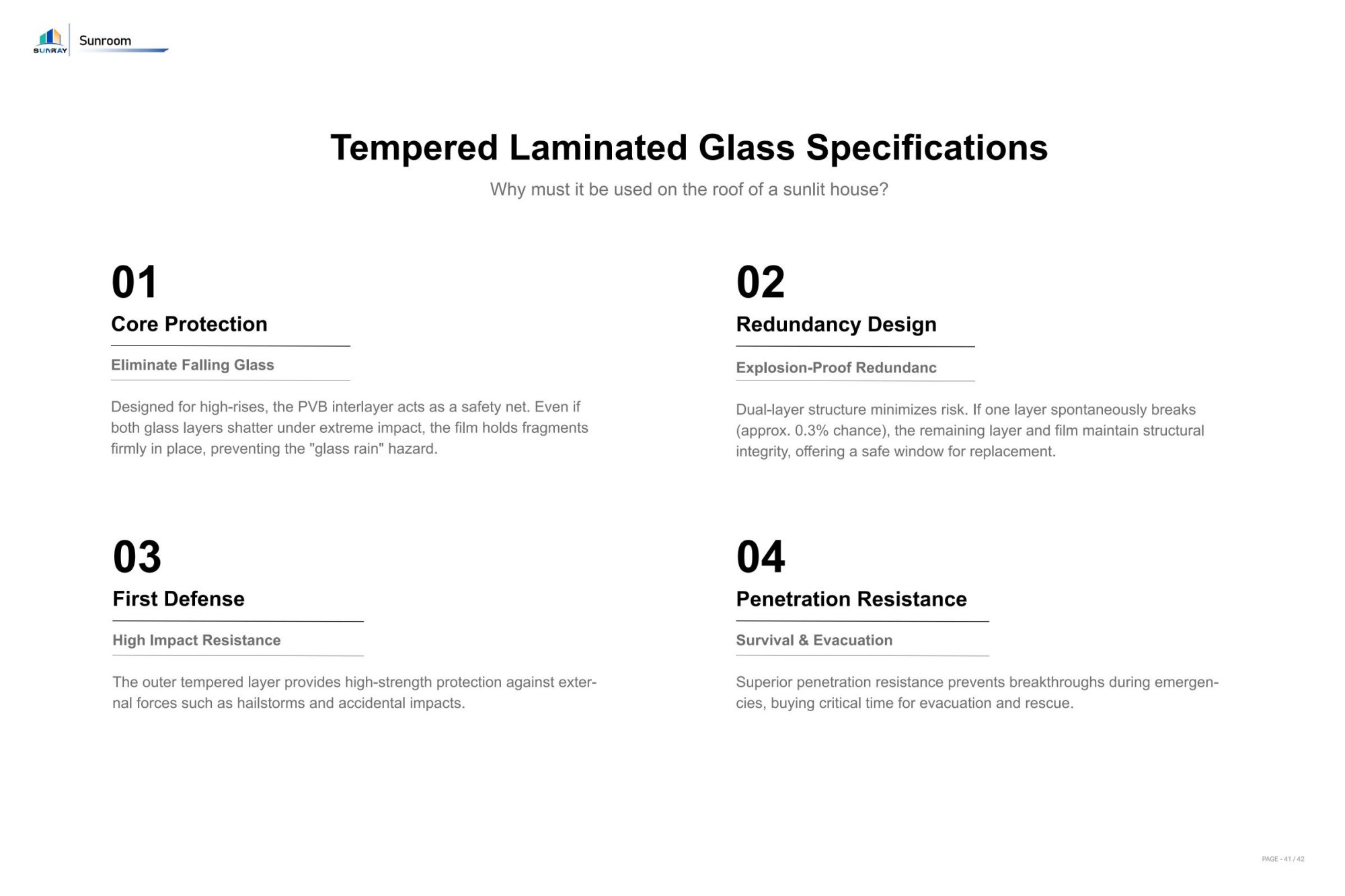

3. Laminated safety glass and insulated laminated glass (the top choice for high-rise buildings, pool areas, and regions with heavy rain or hail; explosion-proof and fall-resistant)
4. Custom finishes such as frosted, dimmable, tinted, and gray glass.

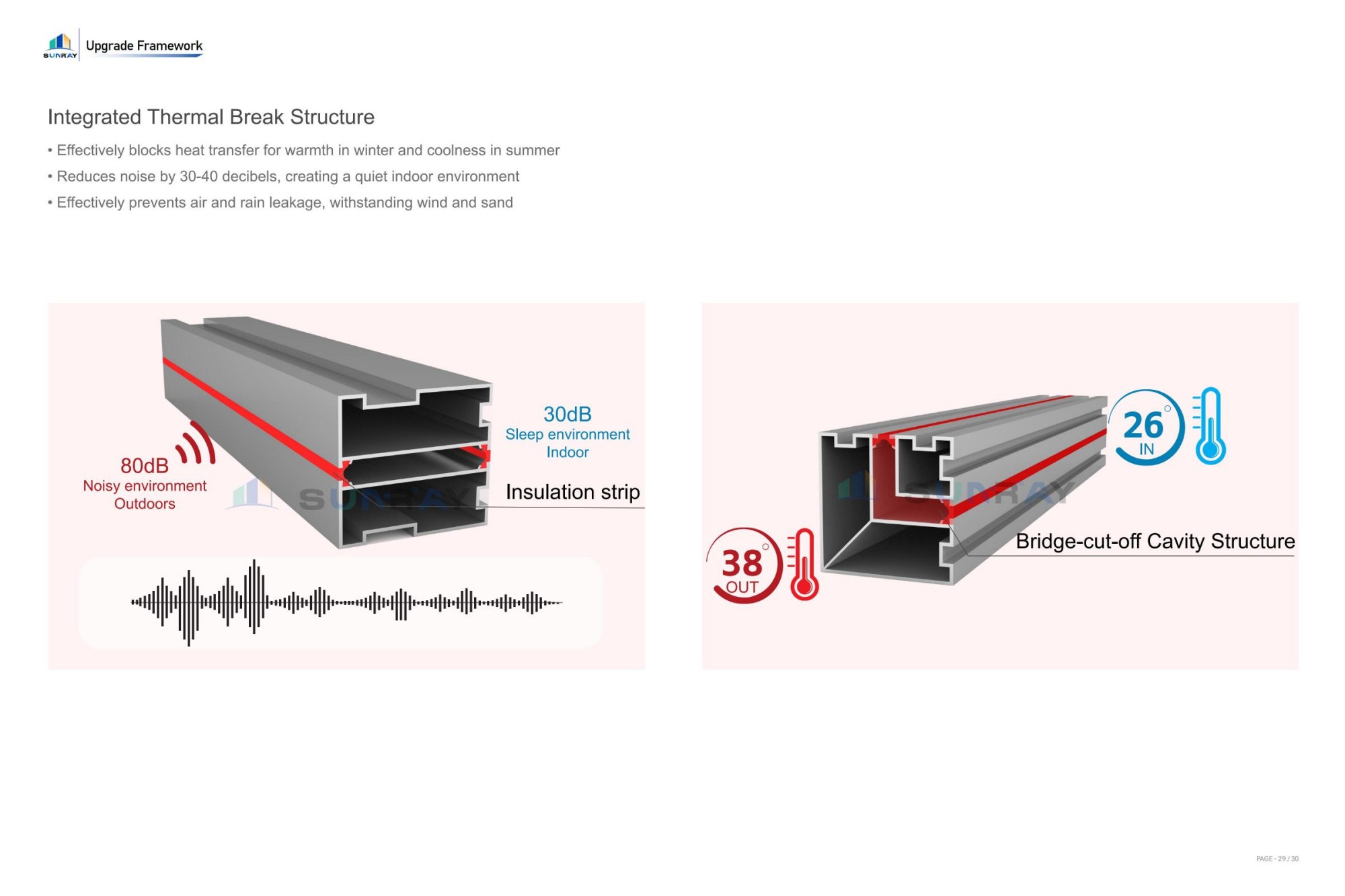

In hot and humid regions, we recommend thermal break profiles, which eliminate thermal bridges and help reduce indoor temperatures in the summer; in regions with a mild climate, non-thermal break structures—which offer better value for money—are a suitable option. We manufacture both types.

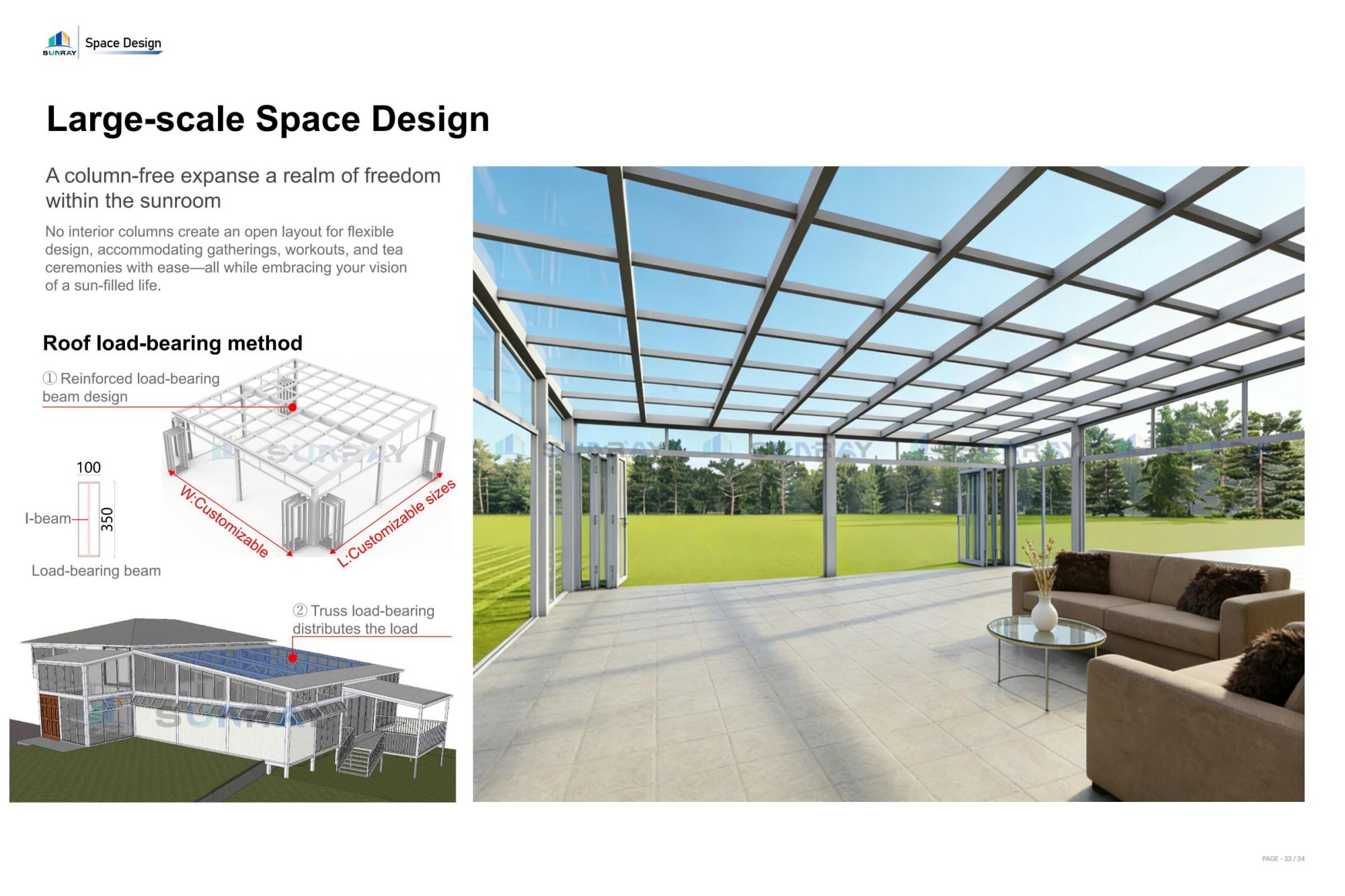

The structure of the sunroom is designed to withstand local wind and snow loads; with larger columns, thicker profiles, and additional reinforcing crossbeams and load-bearing beams, it can withstand heavy snow loads and strong winds, making it suitable for cold, snowy regions such as Calgary.
Full-size customization available—square, polygonal, gabled, flat, and sloped roofs can all be customized. We accept customer-provided drawings or offer on-site surveys to develop a solution.
Before placing an order for a prefabricated sunroom, we will confirm the door and window configuration with the customer. Once production has begun and the unit is complete, it is very difficult to add additional doors or windows later on.
1. Aluminum alloy frame: 10-year warranty, designed for a service life of 25–30 years; rust-proof, corrosion-resistant, and weather-resistant; resistant to deformation and fading even after long-term outdoor use.
2. Top glass: 1-year warranty, with a stable service life of over 20 years.
3. Main Body of Doors and Windows: 10-year warranty, typical service life of 25–30 years.
4. Wear-and-tear Parts (seals, sliding tracks, motors): Service life of 5–8 years; components can be quickly replaced individually without affecting the overall structural safety.
Clean the glass and aluminum frames with plain water and a soft cloth; do not use strong acidic or alkaline cleaners; inspect the weatherstripping, drip channels, and drain holes once a year, and simply unclog the top drain.
Equipped with a full suite of customizable upgrade options, these vehicles are fully tailored to meet the diverse application scenarios of overseas customers and satisfy high-end usage requirements. Optional configurations include: remote-controlled power sunroofs, ambient lighting strips, and honeycomb blinds; glass solutions can be optimized based on local climate conditions and customer needs, with options such as online/offline Low-E glass, triple-pane double-chamber laminated insulated glass, and self-cleaning glass; additional options include built-in hollow blinds for sunshade, external power-operated aluminum alloy sunshades, thermal insulation panels, and windproof roller shutters.
